Acoustic Ceiling Panels
Grid Ceiling Tiles

Grid Ceiling Tiles

Autex
Vanaf
€
55
(3.5 stars) • 10 reviews

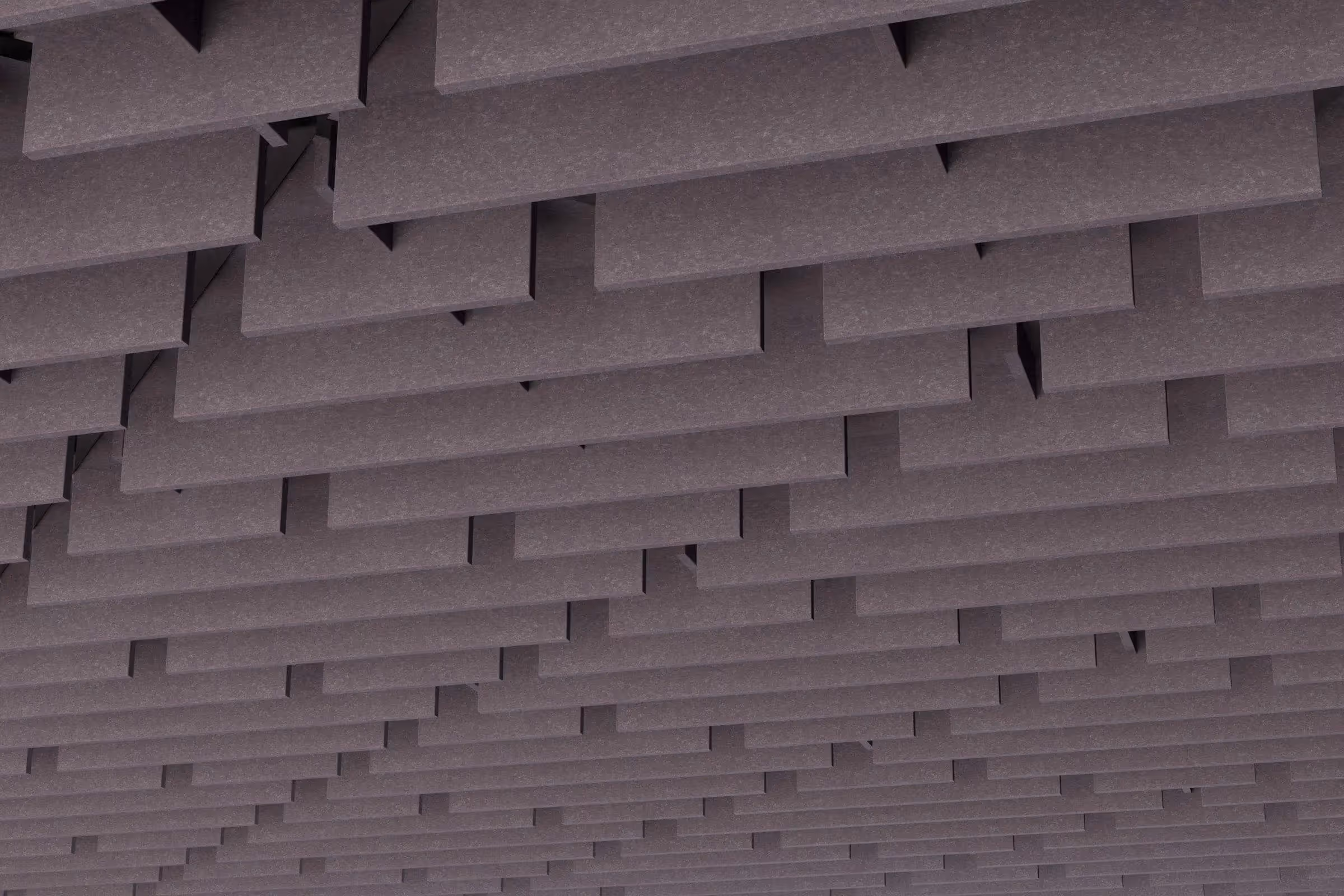

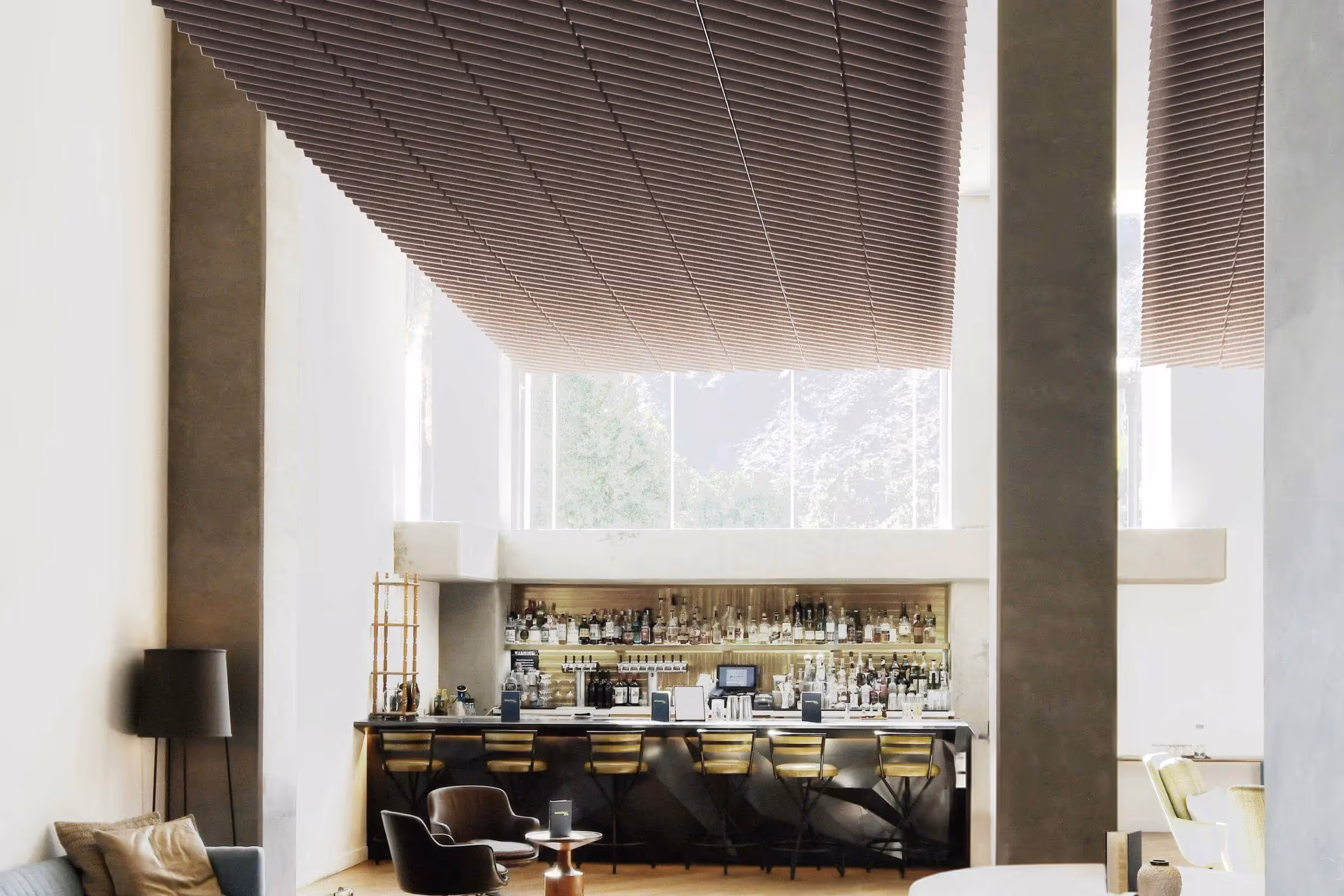

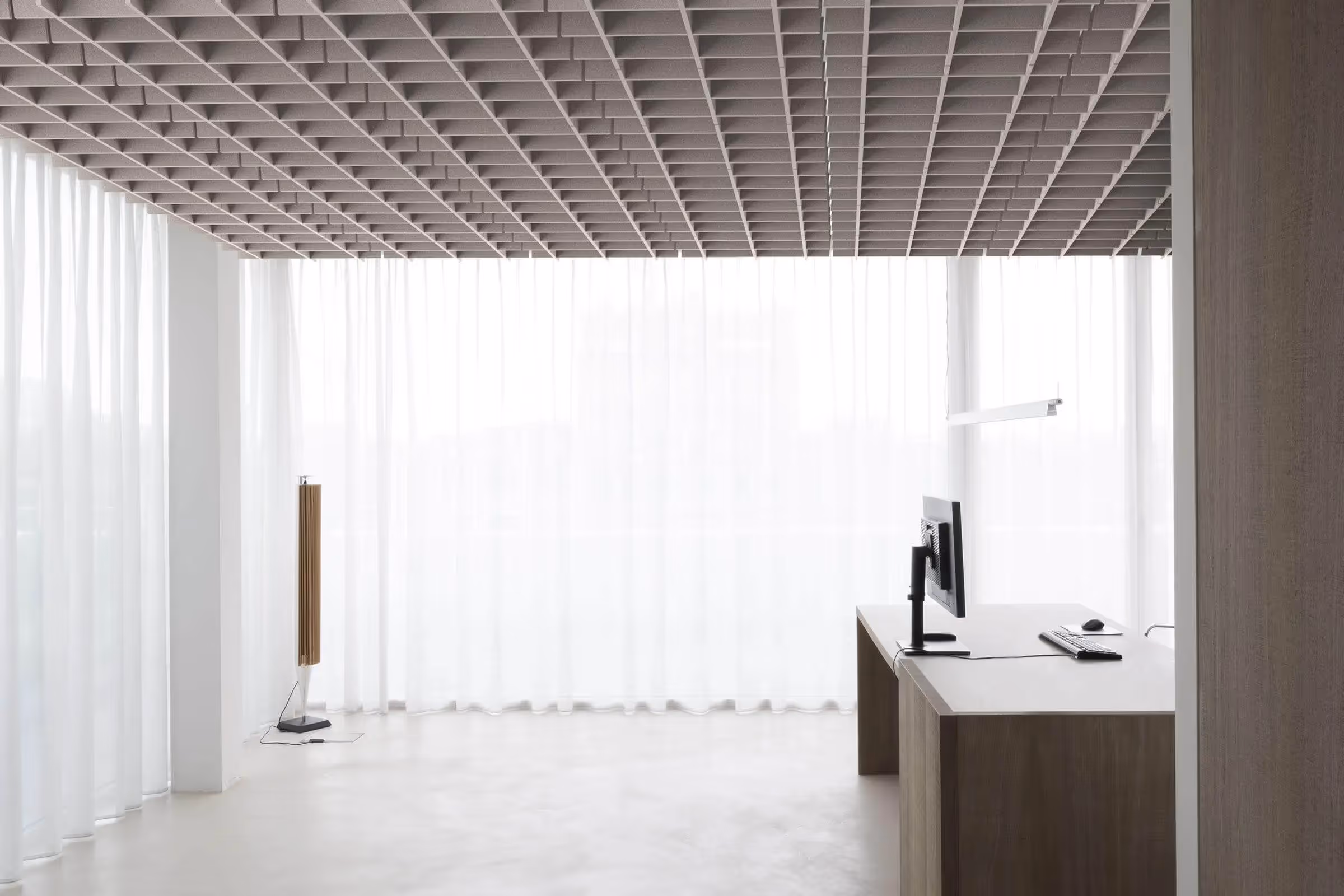

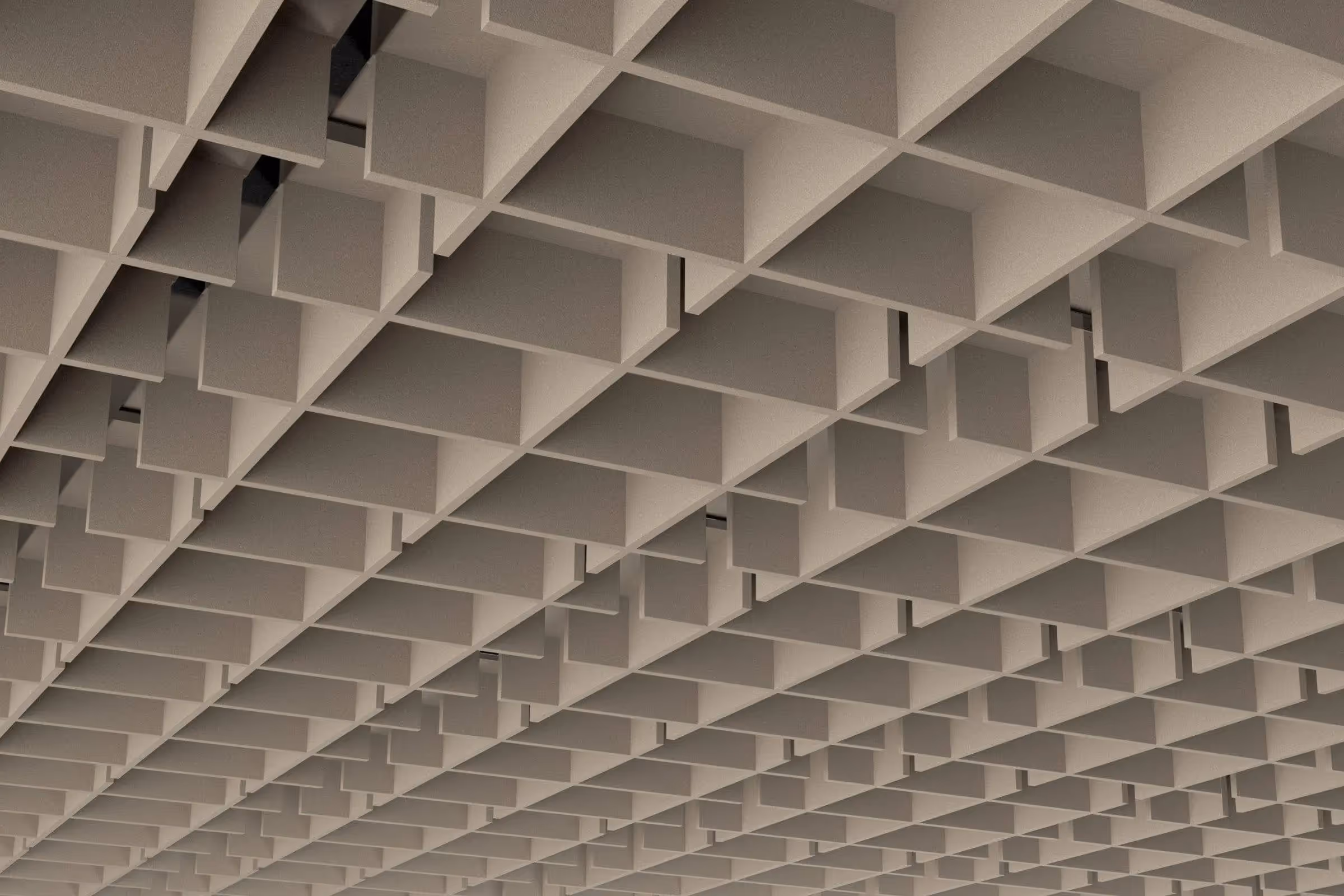

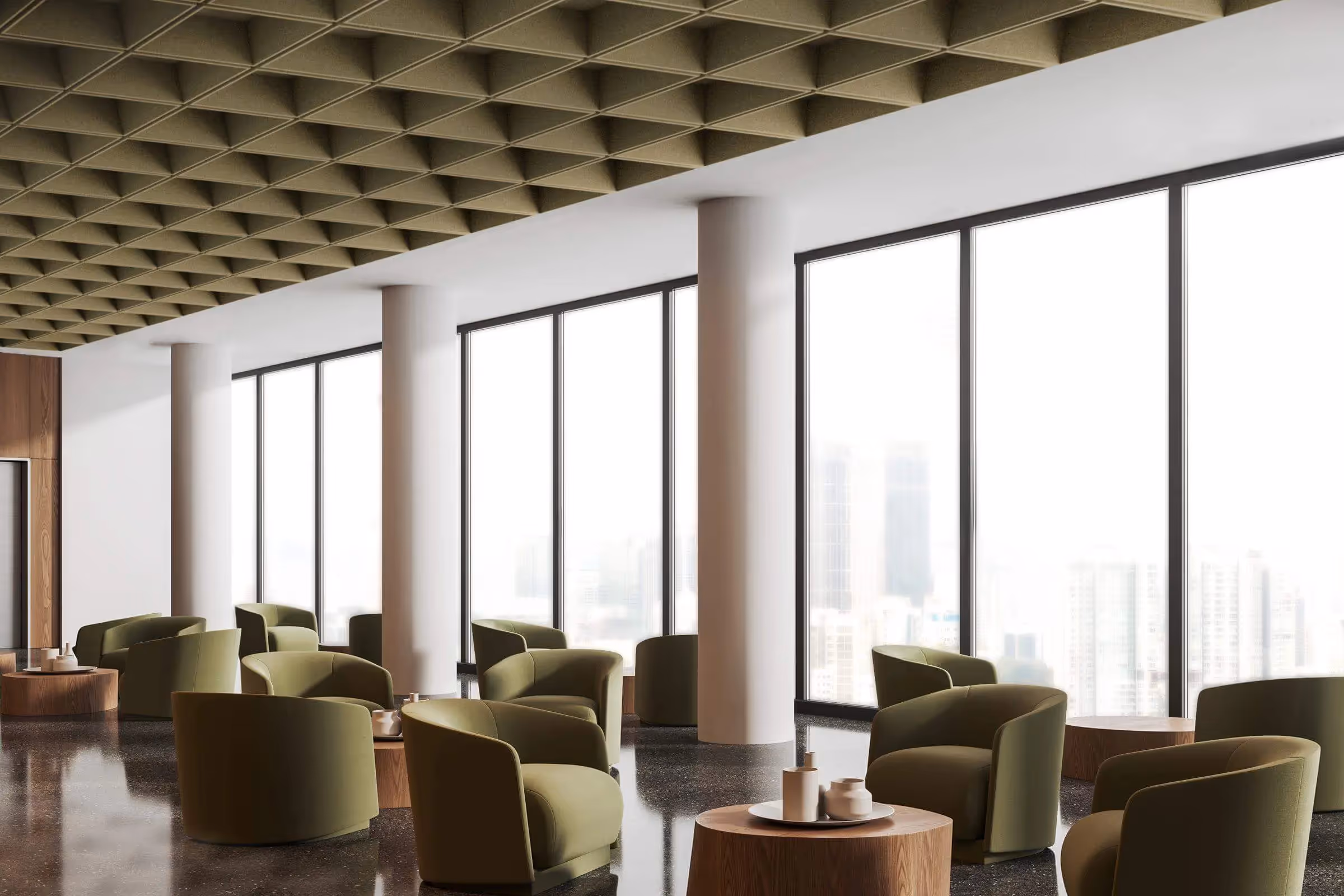

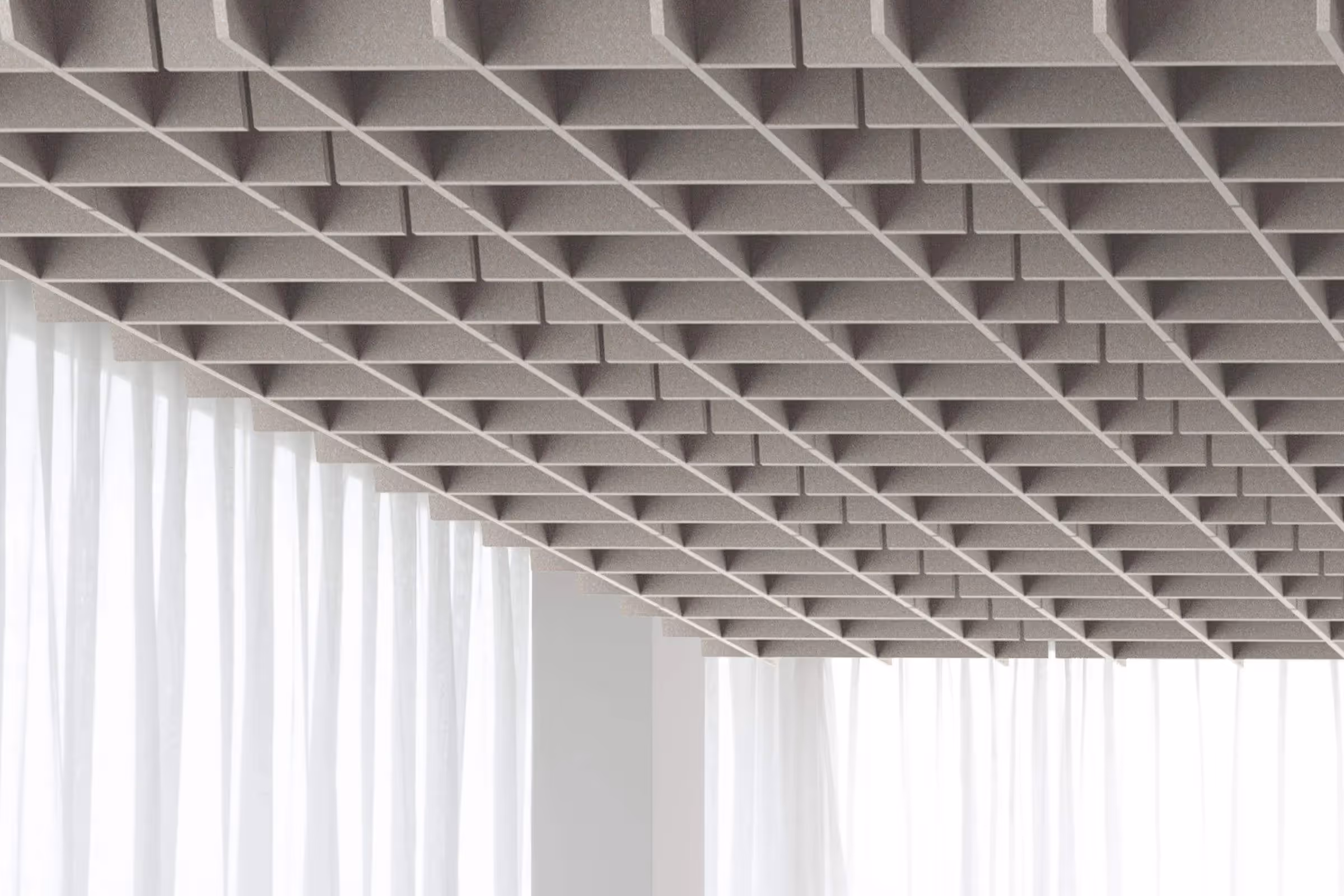

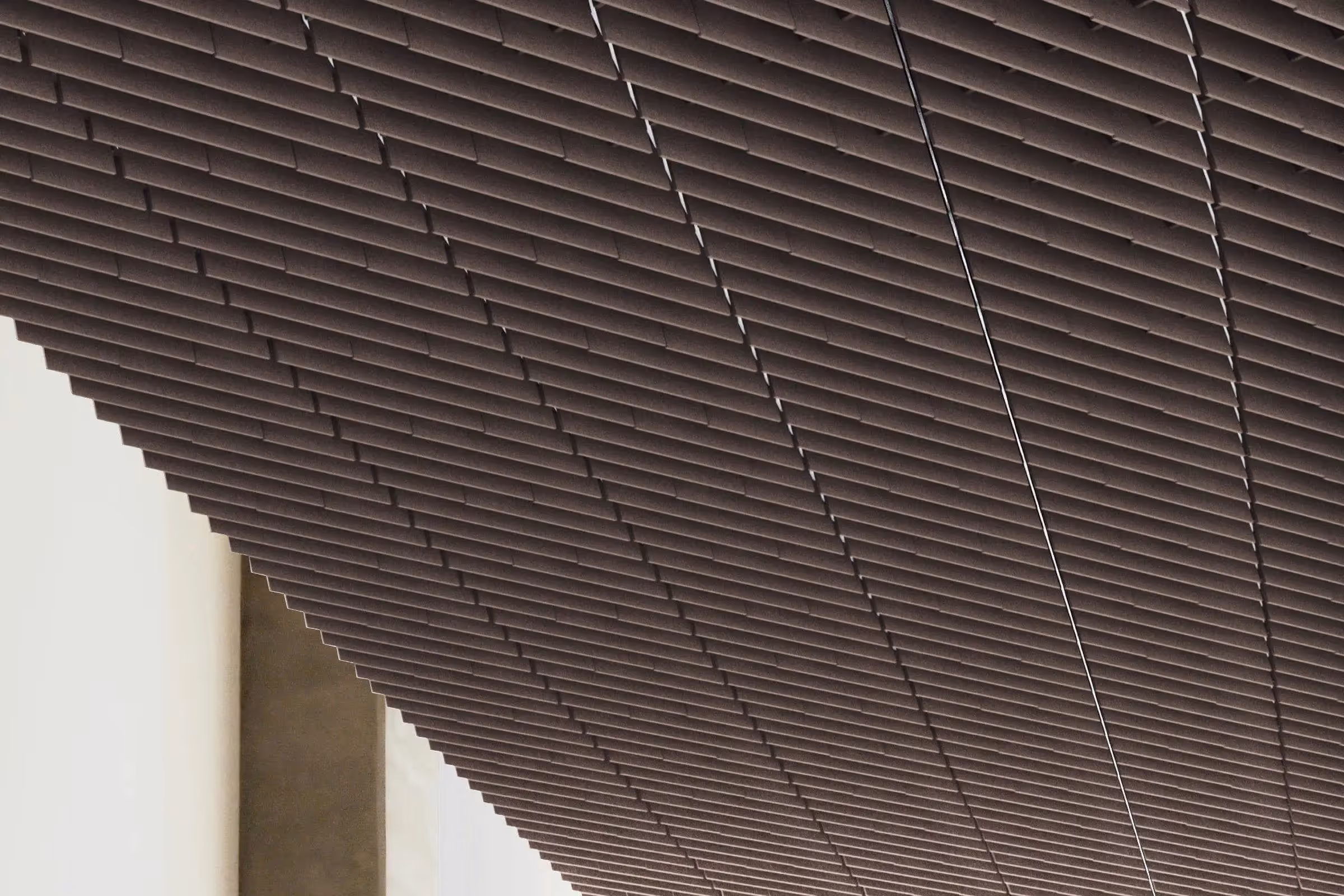

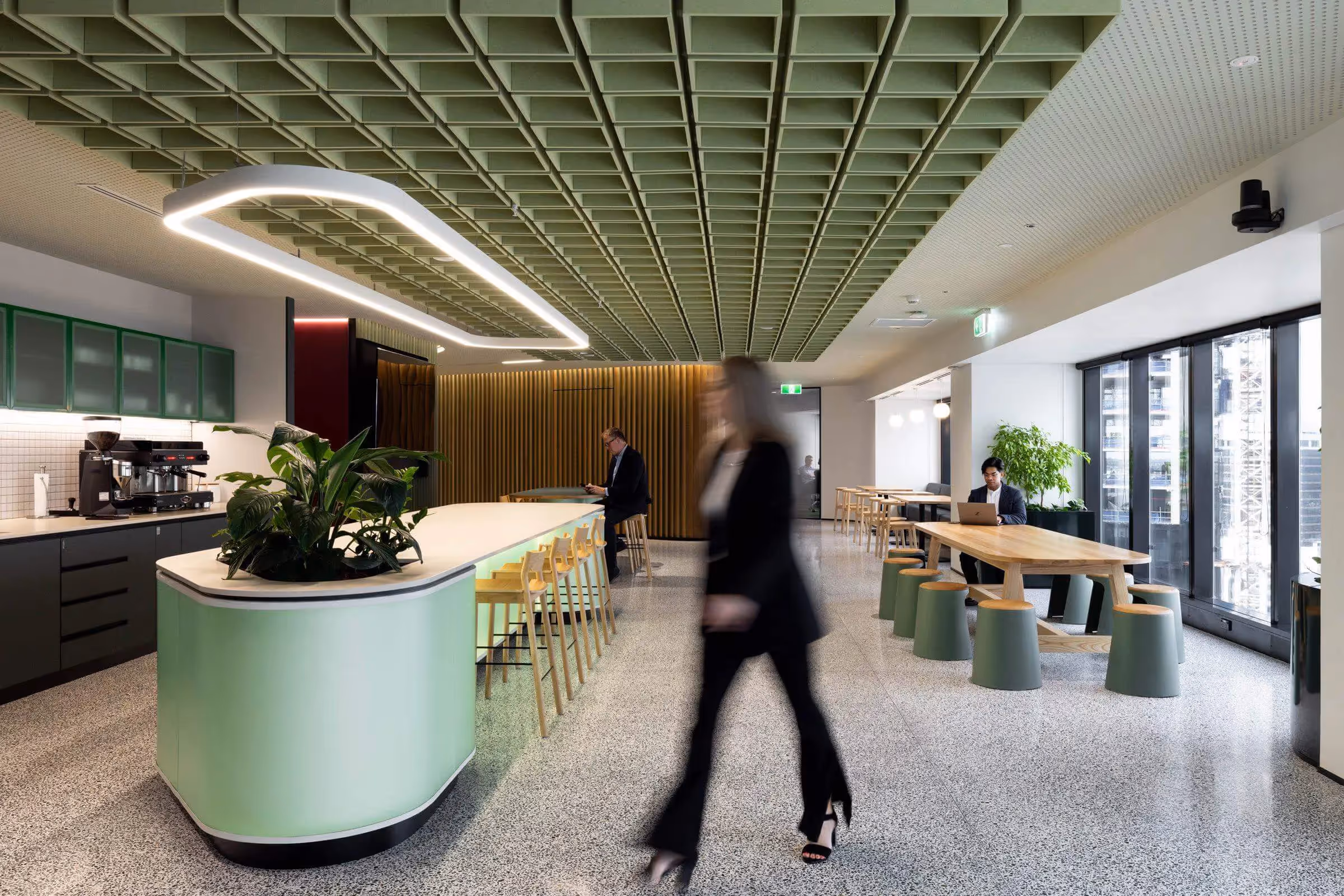

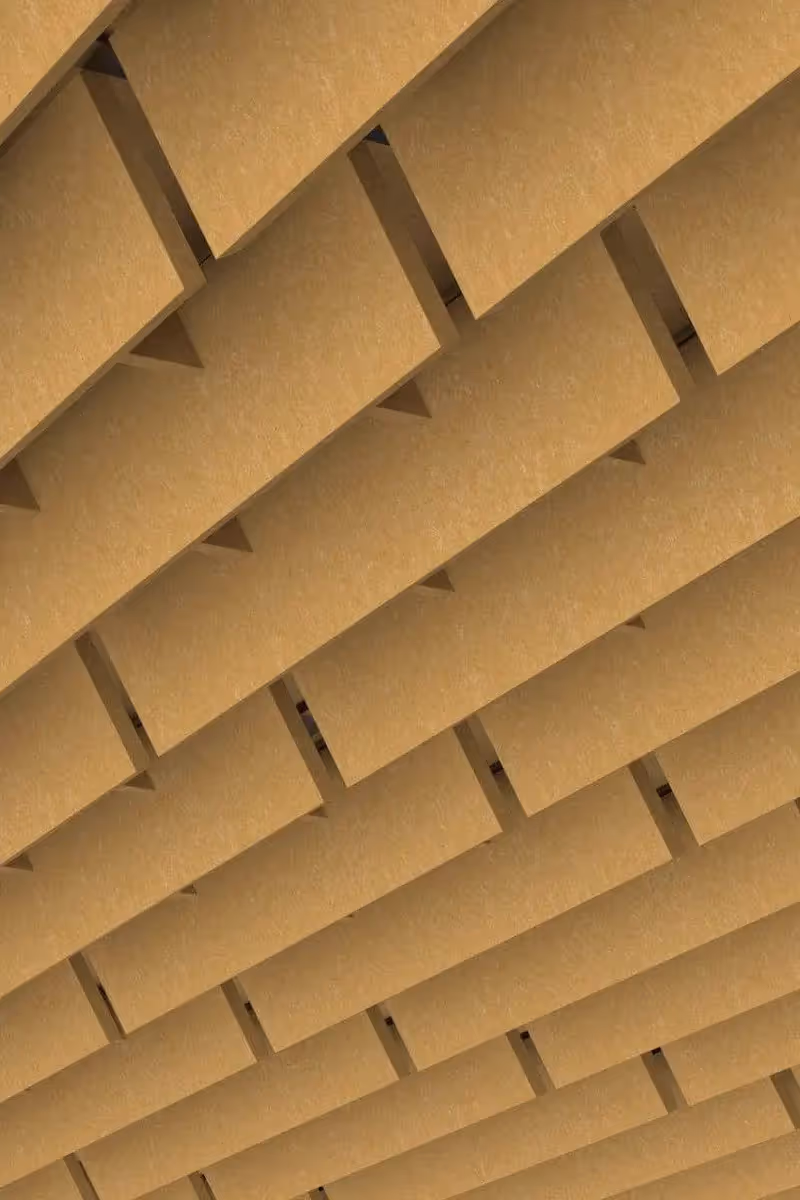

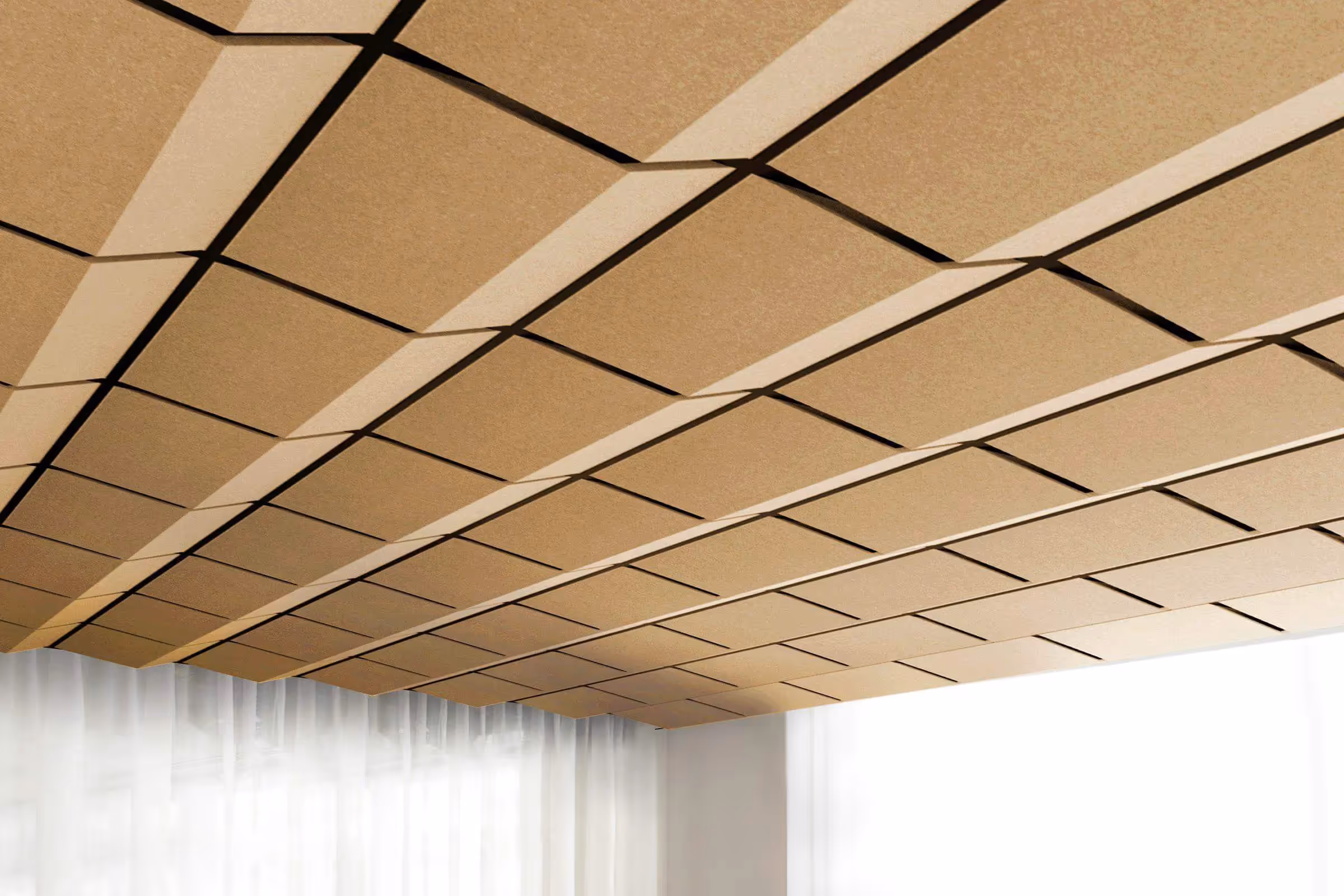

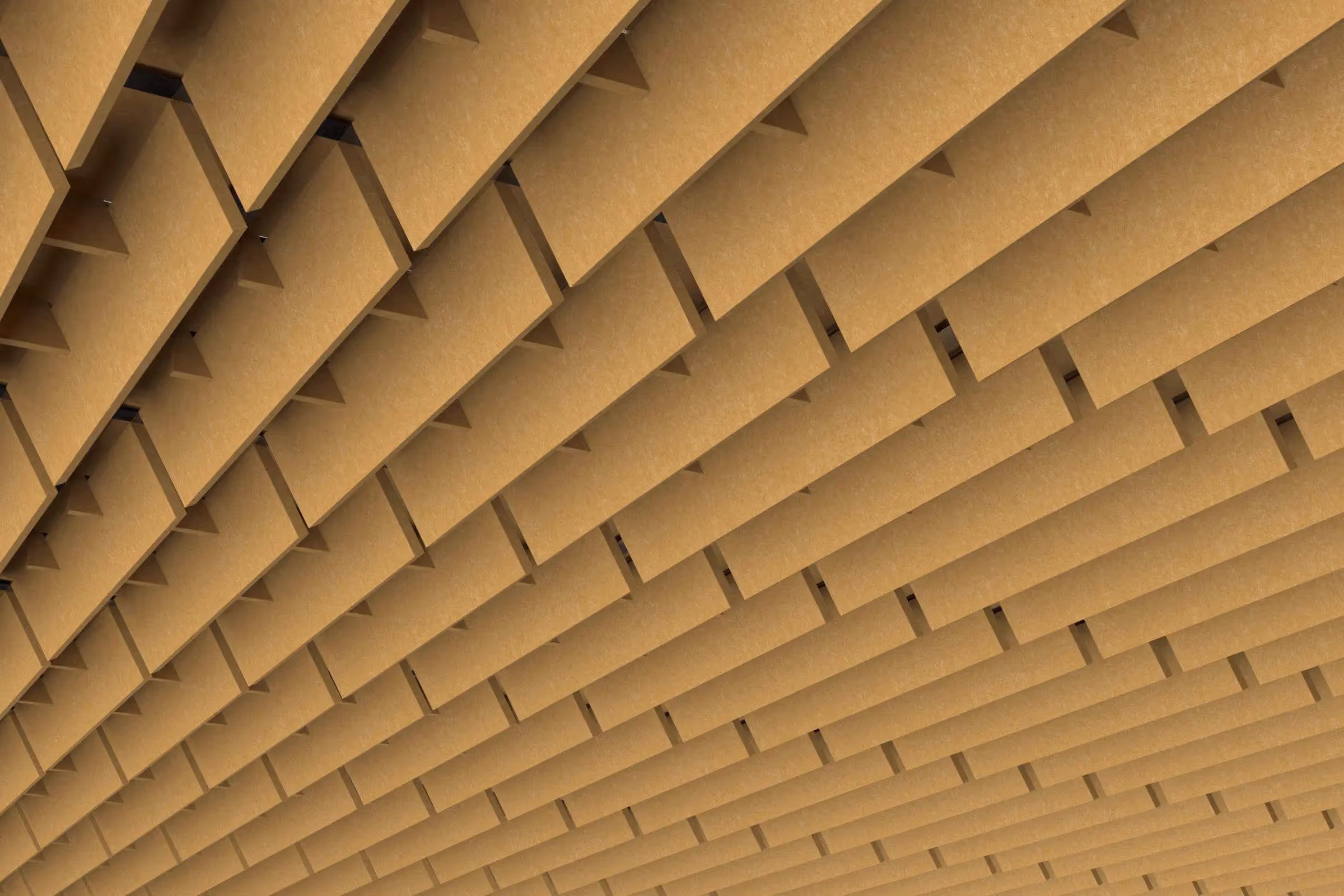

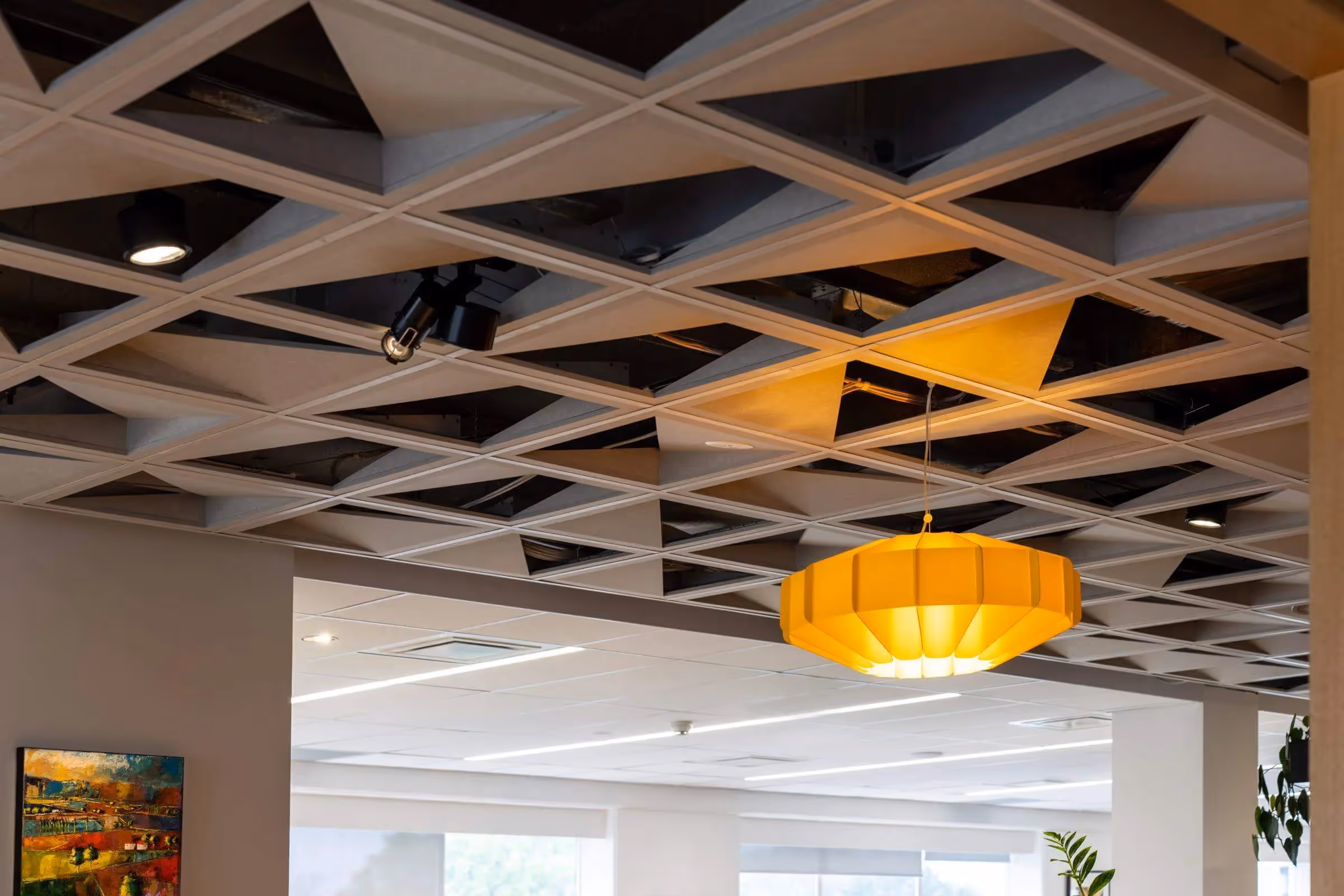

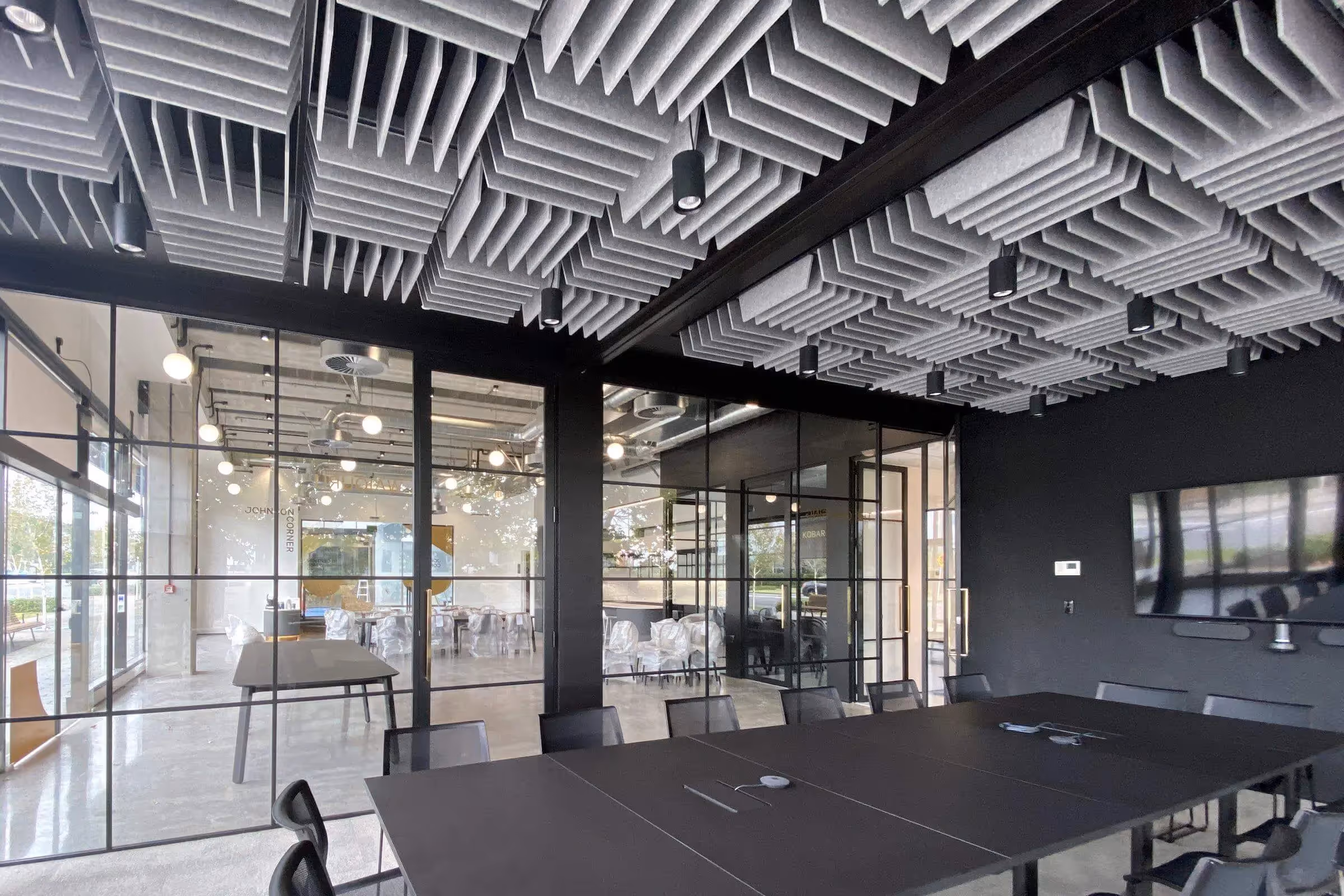

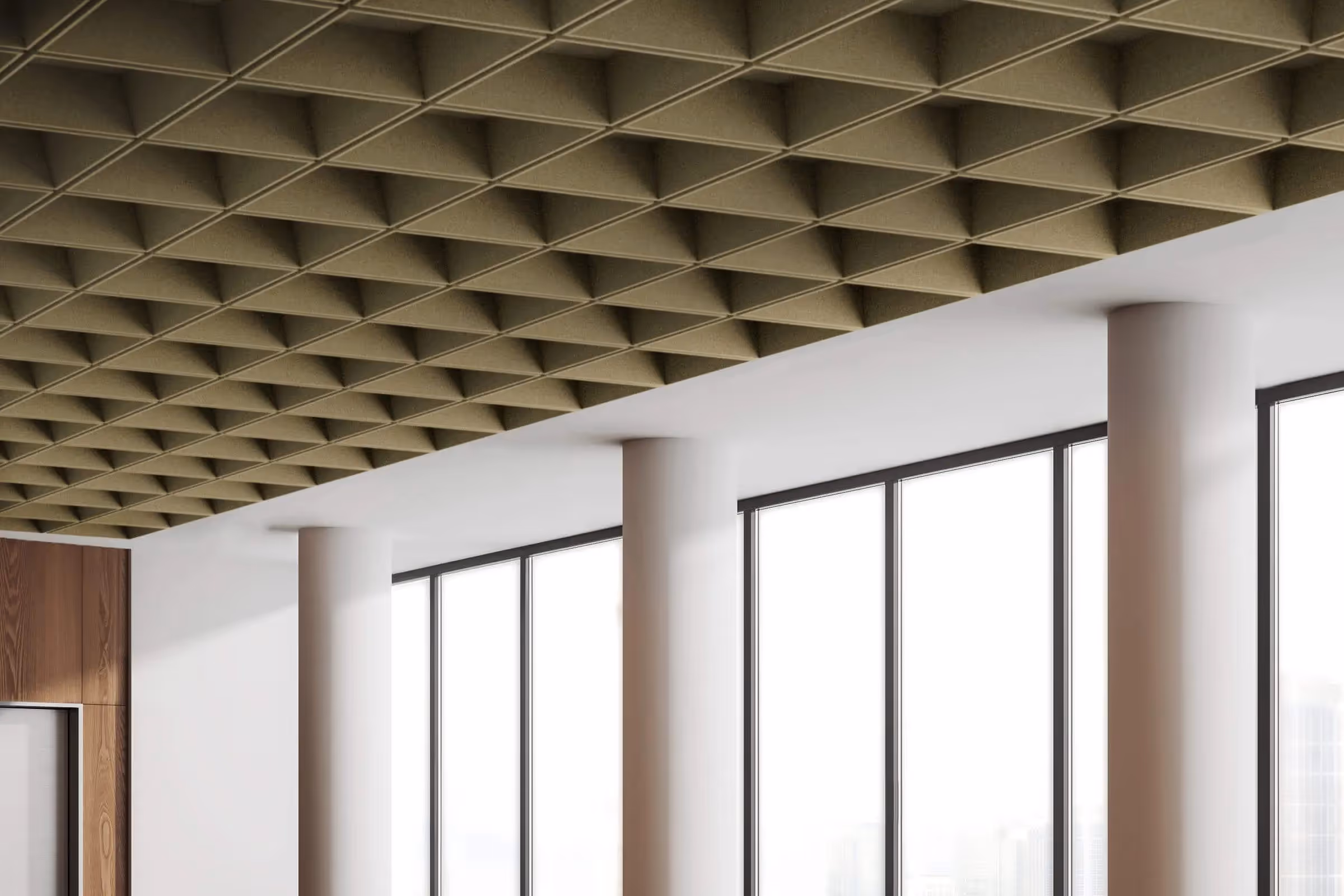

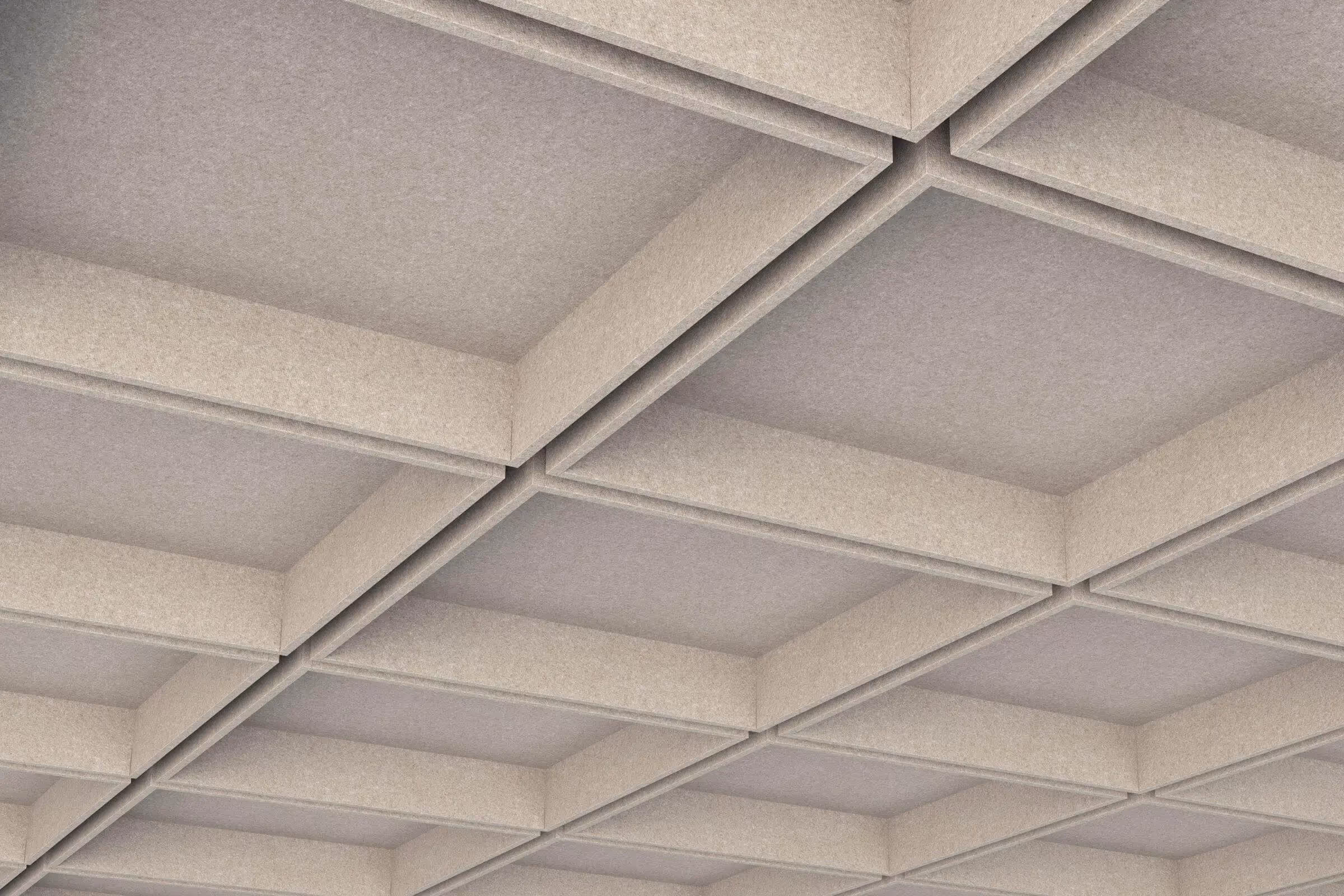

Grid Ceiling Tiles are designed to reimagine conventional suspended ceilings with architectural depth and acoustic clarity. Made from 100% polyester fiber, including 80%+ recycled content, these lightweight panels feature seven sculptural styles (Frame, Linear, Hatch, Angle, Louvre, Vault, Vertex) that create striking visual patterns and effective sound absorption.

Each tile fits standard 23 ¾” × 23 ¾” or 23 ¾” × 47 ¼” ceiling grids, with 4” overall depth and an NRC ranging from 0.15 to 0.85, depending on style and configuration. Tiles can be installed capped or uncapped for further design versatility.

Grid Ceiling Tiles are carbon neutral, Red List Free, and compliant with LEED, WELL, Green Star, and BREEAM certifications. With Class A fire ratings, low VOC emissions, and a palette of rich Cube™ colors, they bring sustainable sophistication and acoustic performance to commercial interiors, education spaces, and hospitality projects.

Quote request
Variant
Variant
Option oneOption twoOption three
Add to cart
Buy now
Free shipping over $50
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product specification
Technical information
Tags
Dimensions

Tile size options:

  • Nominal dimensions: 60.33 cm x 60.33 cm.
  • Long format: 120 cm x 60.33 cm.

Depth: 10.16 cm.

Tolerance: ±0.16 cm.

Composition

• Material: 100% polyester fiber made from polyethylene terephthalate (PET).

• Recycled Content: At least 80% recycled polyester fiber.

Thickness
Finishing material
PET Felt
Gewicht
• Weight per Tile: - Frame: 750 g (26.46 oz). - Linear: 1.21 kg ( 42.69 oz). - Hatch: 1.14 kg (40.23 oz). - Angle: 995 g (35.11 oz) - Louvre: 1.20 kg (42.47 oz). - Vertex: 752 g (26.52 oz).
Available colours
21 colors.
Geluidsabsorptie

• Acoustic Performance (NRC, un/capped):

- Frame Style: 0.35 (uncapped), 0.60 (capped).

- Linear Style: 0.35 (uncapped), 0.60 (capped).

- Hatch Style: 0.60 (uncapped), 0.70 (capped).

- Angle Style: 0.30 (uncapped), 0.60 (capped).

- Louvre Style: 0.35 (uncapped), 0.65 (capped).

- Vault Style: 0.80 (uncapped).

- Vertex Style: 0.15 (uncapped), 0.60 (capped).

Maintenance

• Blot spills immediately with a clean cloth.

• Wipe gently with a damp cloth (avoid excessive moisture).

• For stains, use carpet or upholstery shampoo as directed.

Recyclability
• Minimum 80% recycled content (polyester fiber made from PET). • Fully recyclable at the end of its life.
Fire reduction class EU
Groene labels

• VOC Emissions:

- VOC concentration: <0.092 mg/m³ (7 days).

- Meets CDPH standard.

• Environmental Certifications:

- EPD – Compliant with ISO 14025 and EN 15804.

- Declare – Red List Free.

- ISO 14001 (Environmental Management).

- ISO 9001 (Quality Management).

- ISO 45001 (Health and Safety Management).

- Health Product Declaration (HPD).
