Hexagon wallpanel

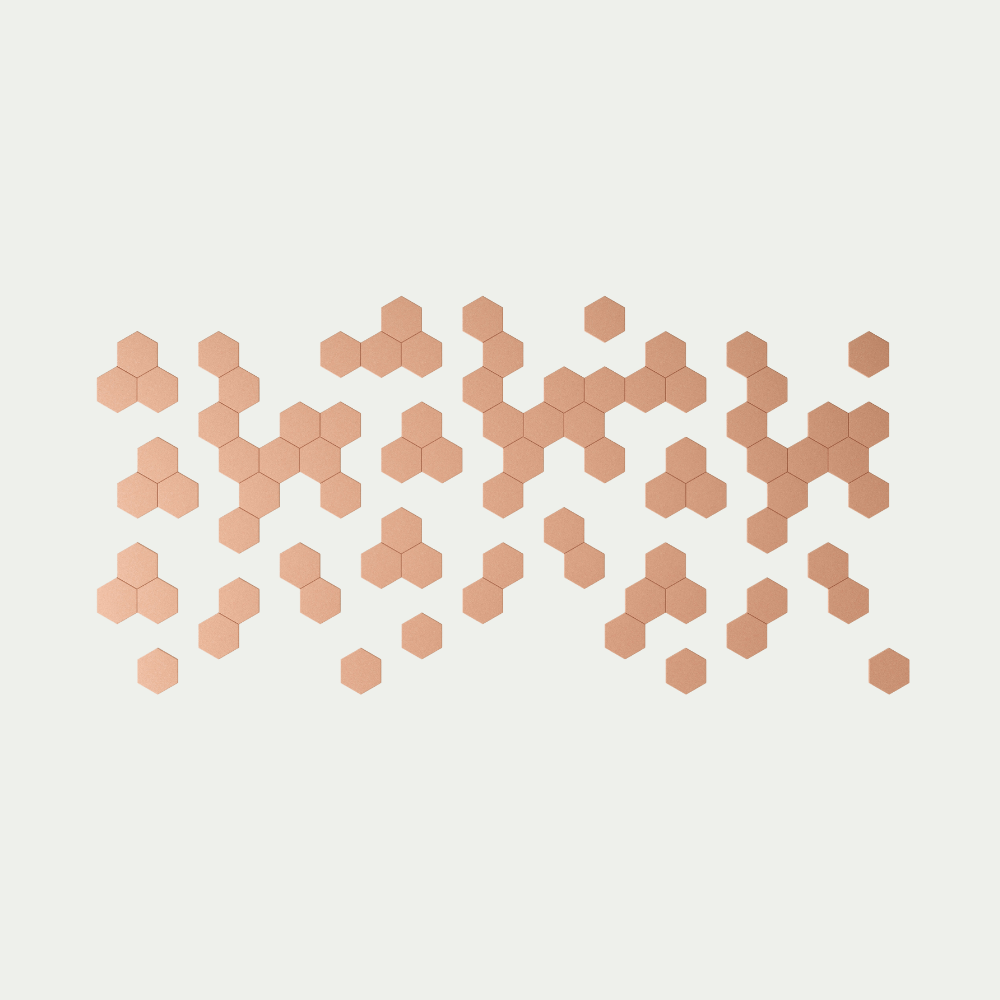

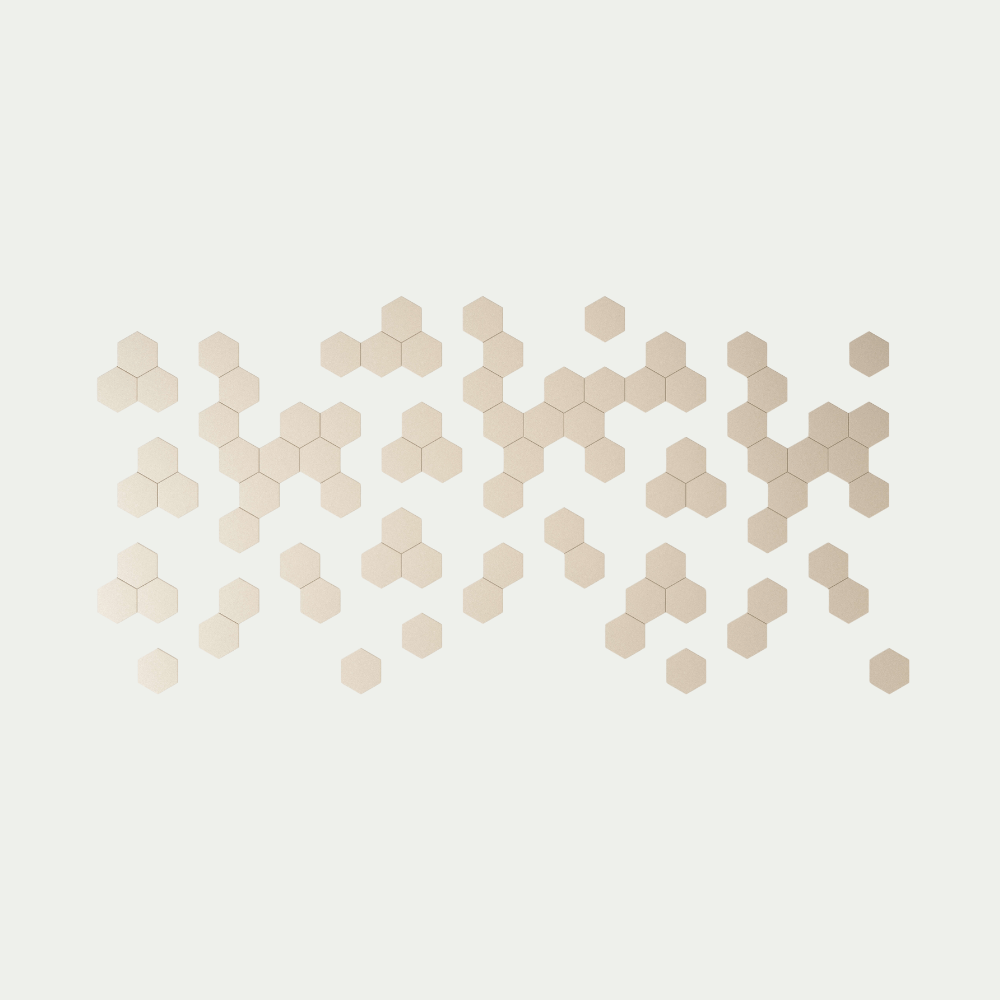

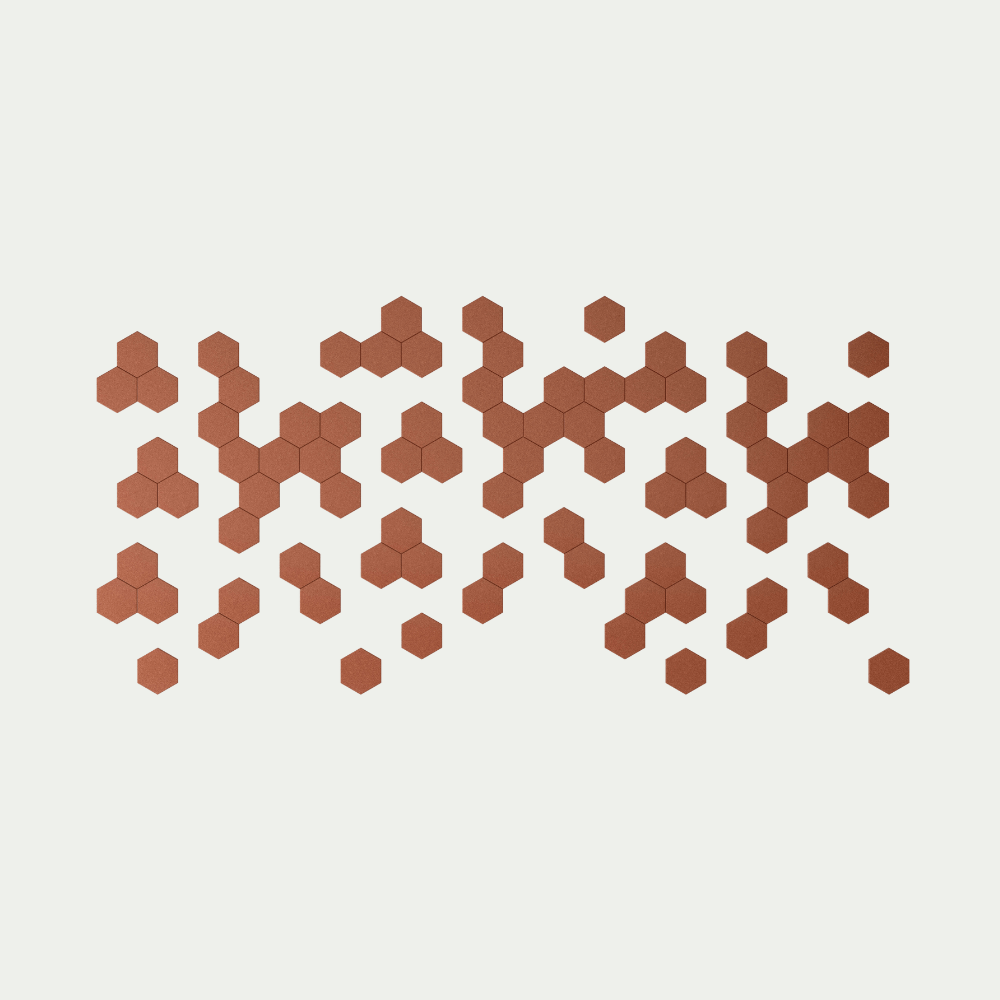

The Hexagon Wall Panel introduces architectural rhythm and sound absorption in a timeless six-sided form. Ideal for both feature walls and large-scale installations, the repeating hexagonal geometry creates a visual mosaic that enhances spatial flow while significantly reducing reverberation levels.
Made from ARCHISONIC® Felt -crafted from 60% post-consumer recycled PET- Hexagon panels are available in 12 mm (0.47"") or 24 mm (0.94"") thicknesses. The design features clean 30° and 60° angles and is pre-cut for concealed Undercover Mount installation, allowing seamless integration on any vertical surface.
Each 24 mm panel set includes 65 units (12 mm: 48 units) with dimensions of approximately 255.5 mm (10.1"") side length, forming expansive honeycomb patterns. The panels are available in 36 curated colors, giving designers the freedom to compose calming neutrals or bold, multi-tonal installations.

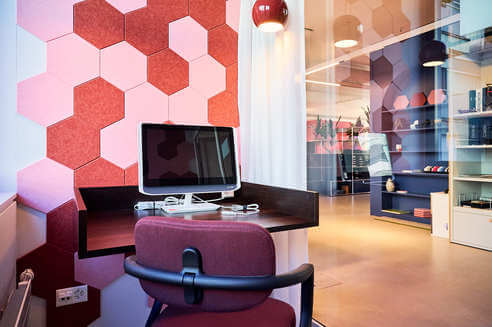

Whether used in offices, hospitality, education, or cultural spaces, Hexagon brings acoustic comfort and geometric elegance to every wall.
• Panel width: 255.5mm (10.1”)
• Panel height: 295mm (11.6”)
• Angles:
- 30° (2x15°)
- 60° (2x30°)
• V-Cut Detail:
- 100.4mm spacing
Material: 100% PET (60% post-consumer content)
• ISO Testing:
- 12mm (No air gap): αw = 0.3 (MH), NRC = 0.45
- 12mm (50mm air gap): αw = 0.5 (MH), NRC = 0.70
- 12mm (50mm insulation): αw = 1.00, NRC = 0.95
- 24mm (No air gap): αw = 0.55 (MH), NRC = 0.70
- 24mm (50mm air gap): αw = 0.65 (MH), NRC = 0.80
- 24mm (50mm insulation): αw = 1.00, NRC = 1.00
• Testing standards:
- ISO 354: Measurement of sound absorption
- ISO 11654: Sound absorber classification
- ASTM C423-17: Sound absorption test
- ASTM E795-16: Sound absorption test methods
• Daily cleaning: Alcohol solution (75%) (e.g., Pantasept)
• Dust removal: Feather duster or vacuum cleaner
• Heavy dirt: Hydrogen peroxide treatment
• DIN EN 13501-1: B-s1, d0
• ASTM E84: Class A
• VOC Emission:
- 28 Days French Regulation: A+.
- BREEAM® (International, UK, NL, SE, NOR): Exemplary.
- CDPH Standard V1.2: Pass.
• Certifications:
- Declare label, Cradle to Cradle, UL Environmental Product Declaration.
- Member of US Green Building Council, Ecobau 1st Priority, Climate-KIC.
- VOC emissions compliant with LEED EQ credit (low-emitting products).
- SCS Recycled Content.
