Kingscross Wall Panel

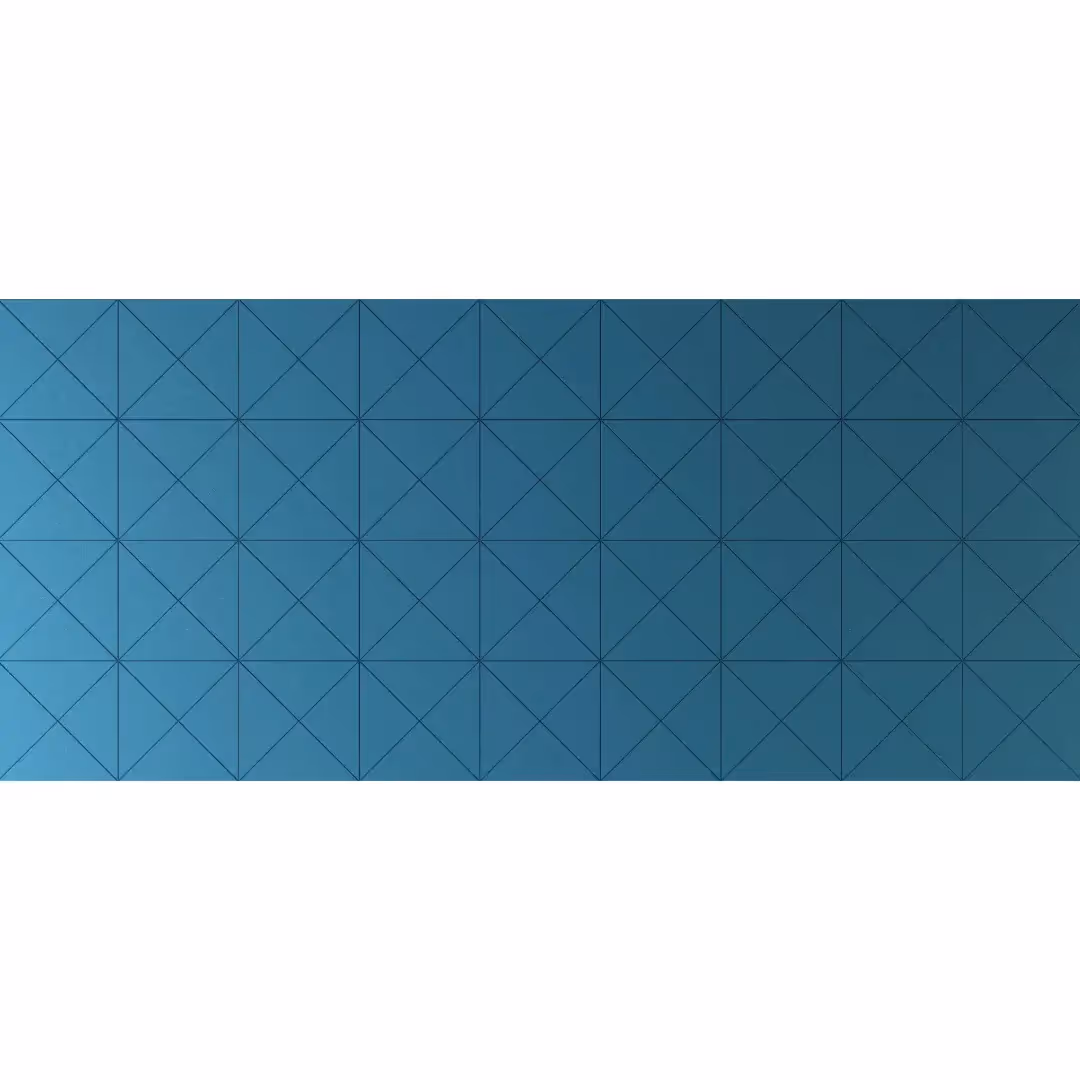

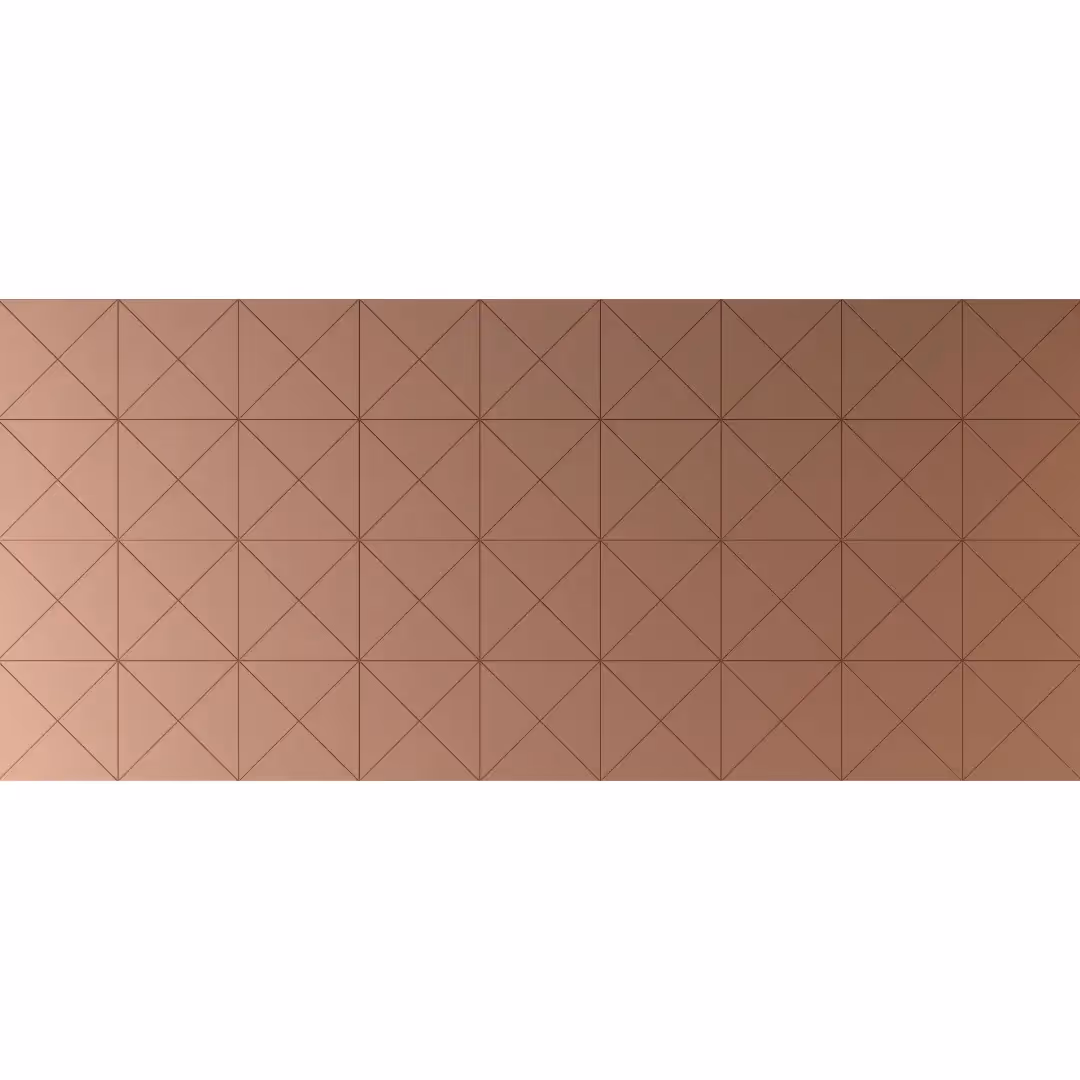

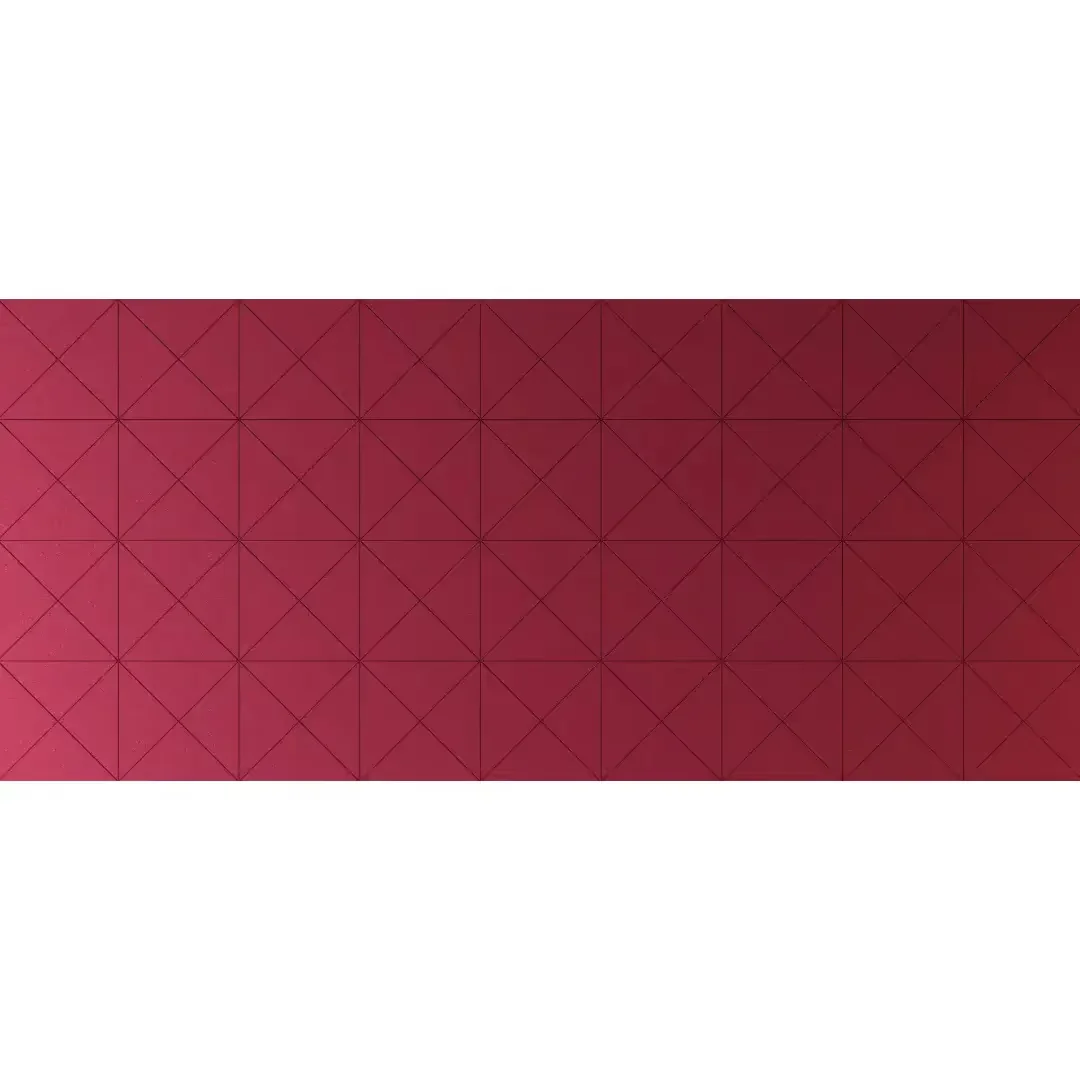

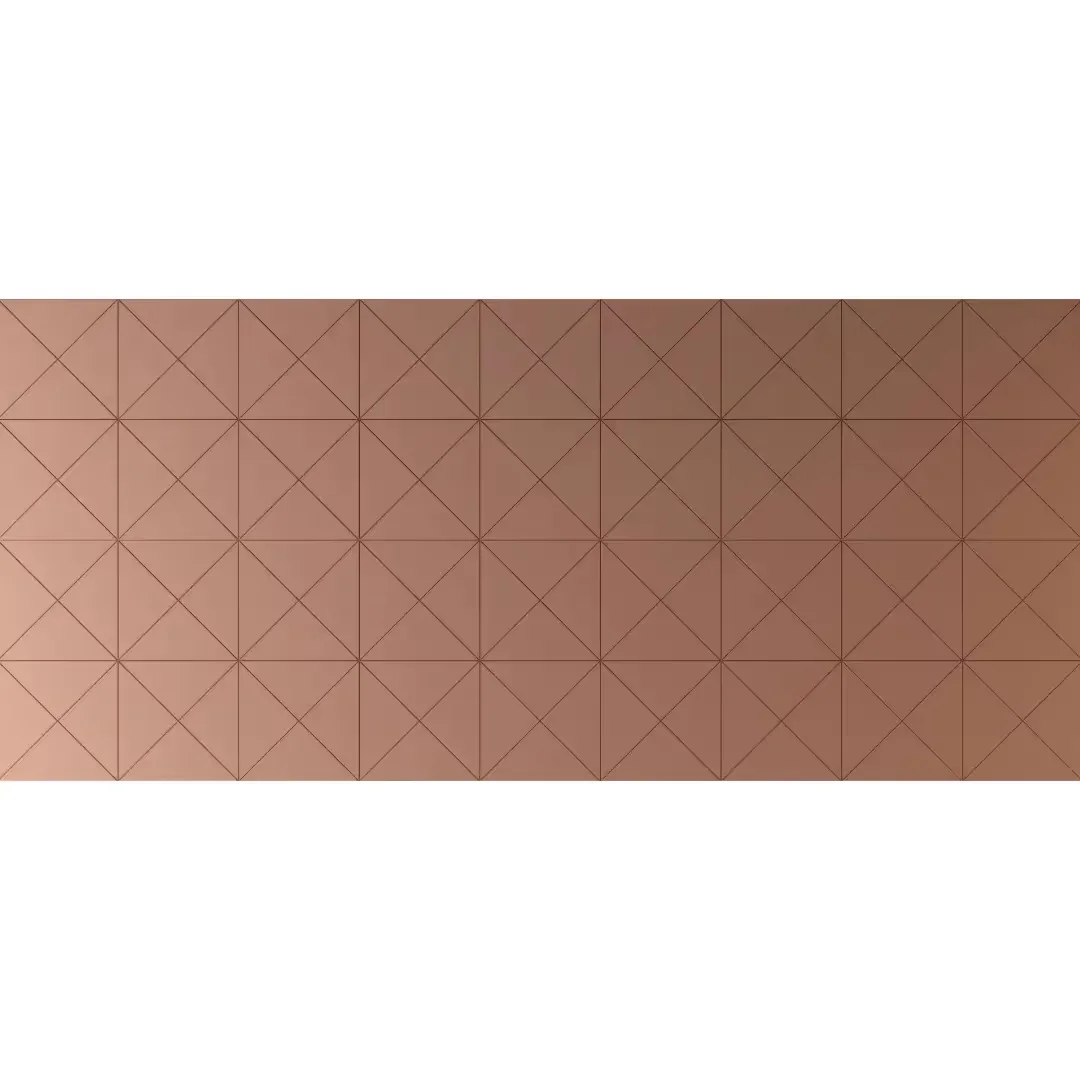

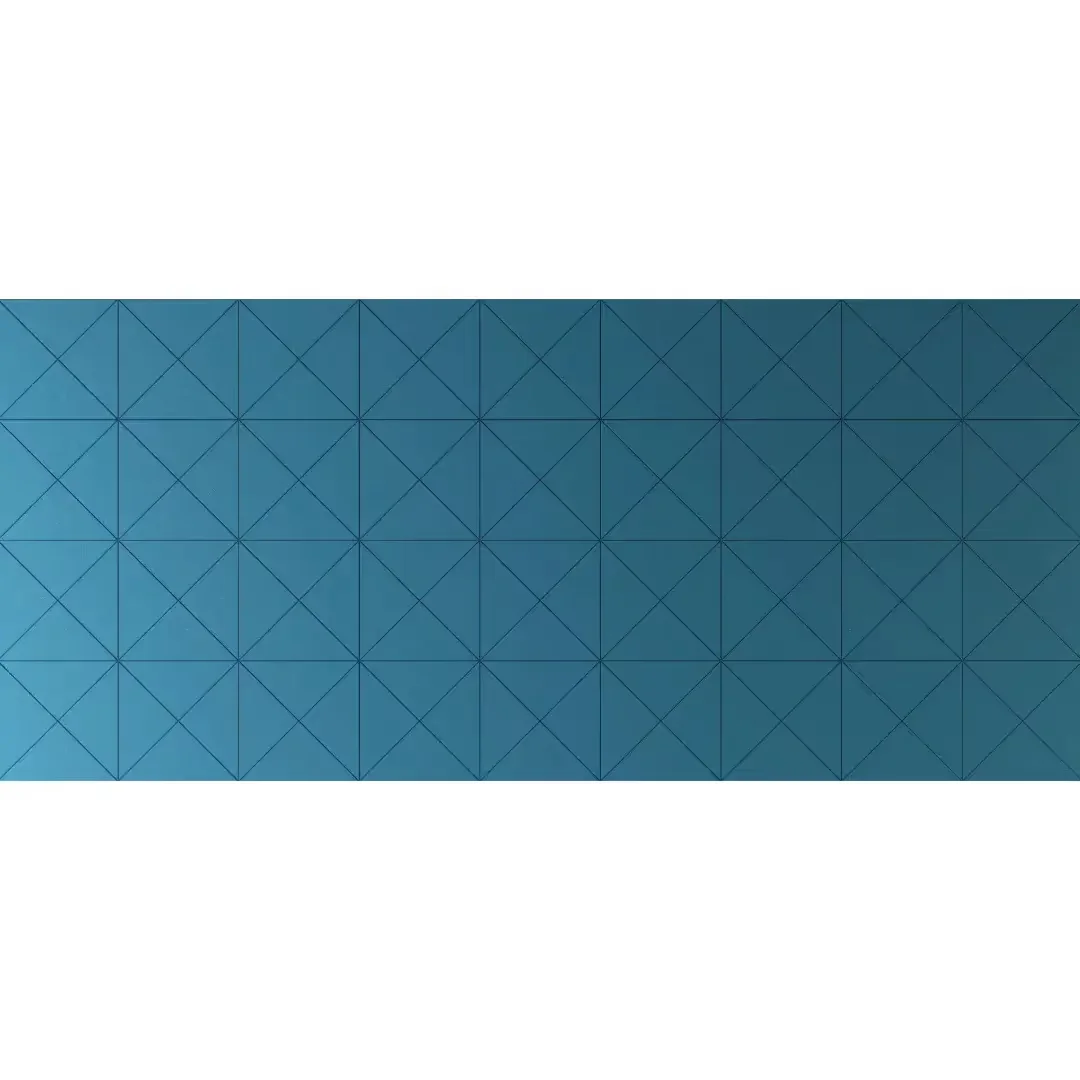

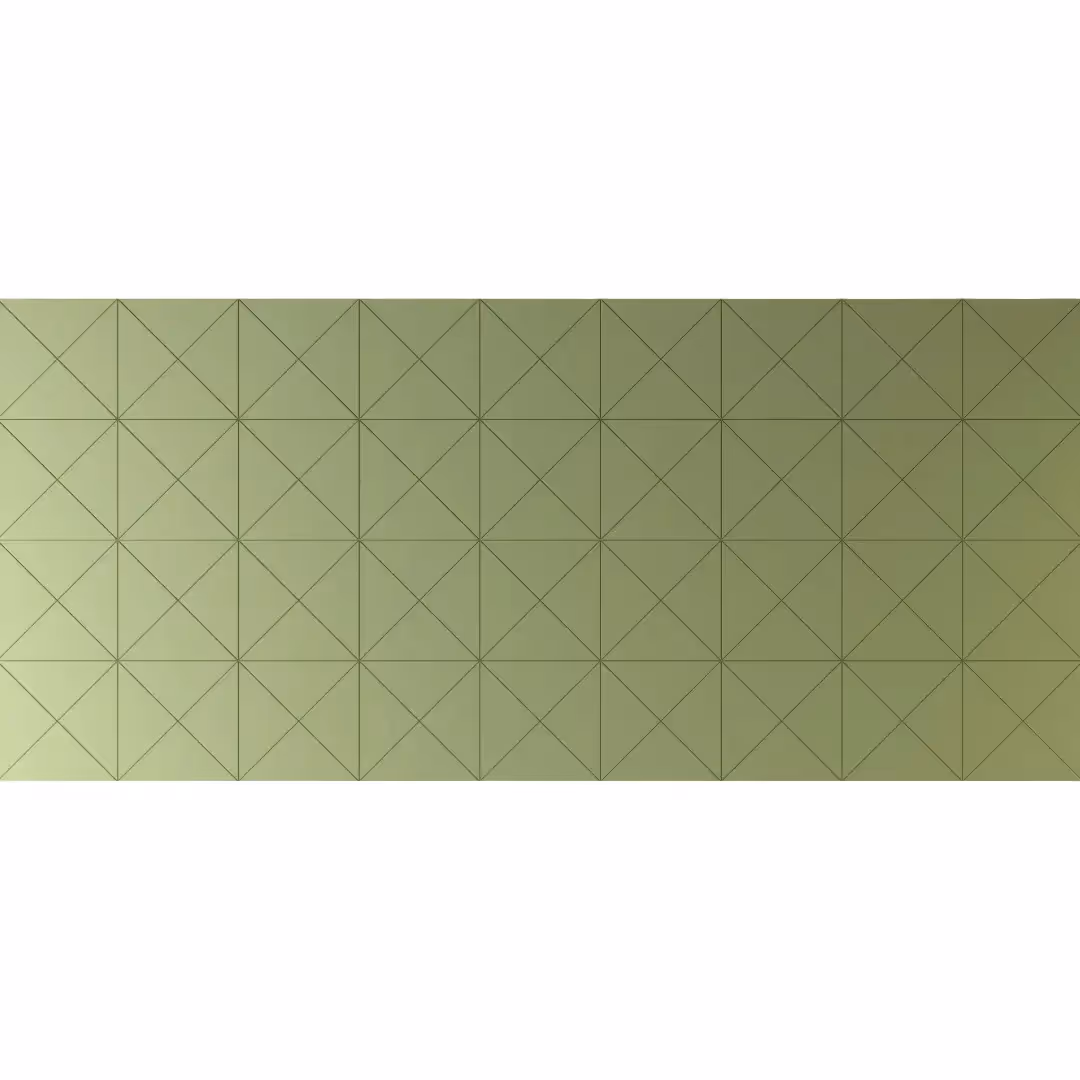

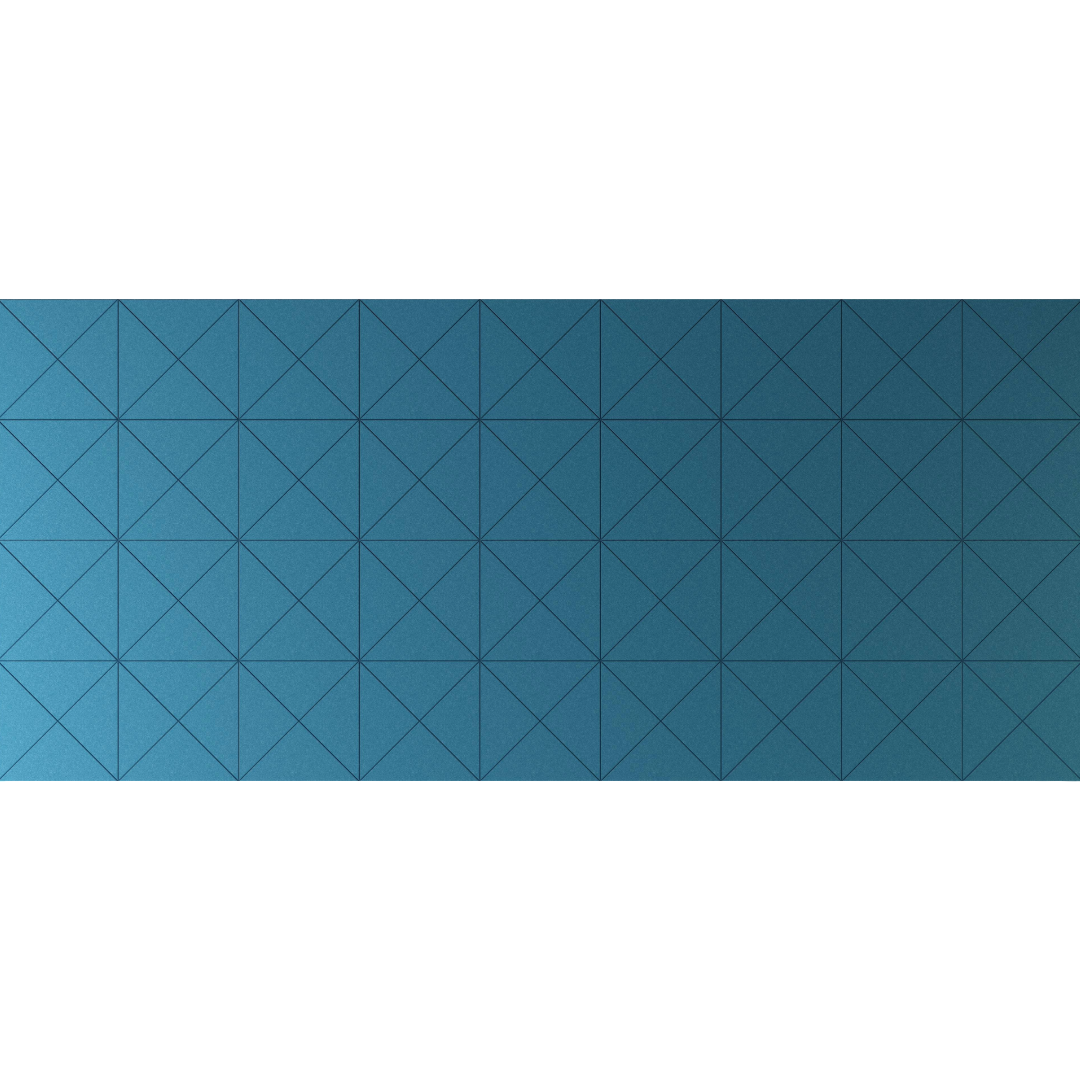

The Kingscross Wall Panel turns a simple cross into a rhythmic, architectural surface. V-cut grooves divide the felt into square fields, each crossed corner to corner, so the lines join into a continuous lattice of diamonds and triangles that shifts with the light. Cut from ARCHISONIC® Felt, a PET felt with 60% certified post-consumer recycled content, it absorbs sound and reduces reverberation across the whole surface.
Choose a 24 mm panel of 1800 x 2400 mm in 600 mm squares, or a 12 mm panel of 1200 x 2800 mm in 600 x 700 mm fields, both mounted with the concealed, patent-pending Undercover system. Tested to ISO 354 and ISO 11654, the 24 mm felt reaches αw 0.55 directly on the wall and up to αw 1.00 with 50 mm insulation behind it.
In 45 colours, the felt holds fire reaction class B-s1,d0 in most colours under EN 13501-1 and is certified Cradle to Cradle, Declare and Indoor Air Comfort Gold. Kingscross brings structure to offices, lobbies and meeting rooms.
24 mm: 1800 x 2400 mm, 600 x 600 mm fields
12 mm: 1200 x 2800 mm, 600 x 700 mm fields
V-cut: 60°, 6 mm deep
Custom sizes on request
100% PET, 60% certified post-consumer content
ISO 354 / ISO 11654, αw by mounting:
24 mm: 0.55 (MH) no air cavity, 0.65 (MH) with 50 mm air cavity, 1.00 with 50 mm insulation
12 mm: 0.30 (MH) no air cavity, 0.60 (MH) with 50 mm air cavity, 1.00 with 50 mm insulation
Daily cleaning: 75% alcohol solution, e.g. Pantasept.
Dust or fluff: feather duster or regular vacuum cleaner.
Heavy dirt: treat the material with hydrogen peroxide.
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
B-s2 in 12 mm for: Hot Pink 140, Lichen 160, Pacific Ocean 432, Raven 550, Poster Red 662, Garnet 724
B-s2 in 24 mm for: True Navy 194, Pacific Ocean 432, Electric Orange 464, Soft Coral 516, Raven 550, Midnight 810, Marine Blue 864
Cradle to Cradle, Declare, UL Environmental Product Declaration, SCS Recycled Content, Ecobau 1st Priority
VOC: Indoor Air Comfort Gold
