MERO Modular Ceiling Grid

Impact Acoustic
Vanaf
€
55
(3.5 stars) • 10 reviews

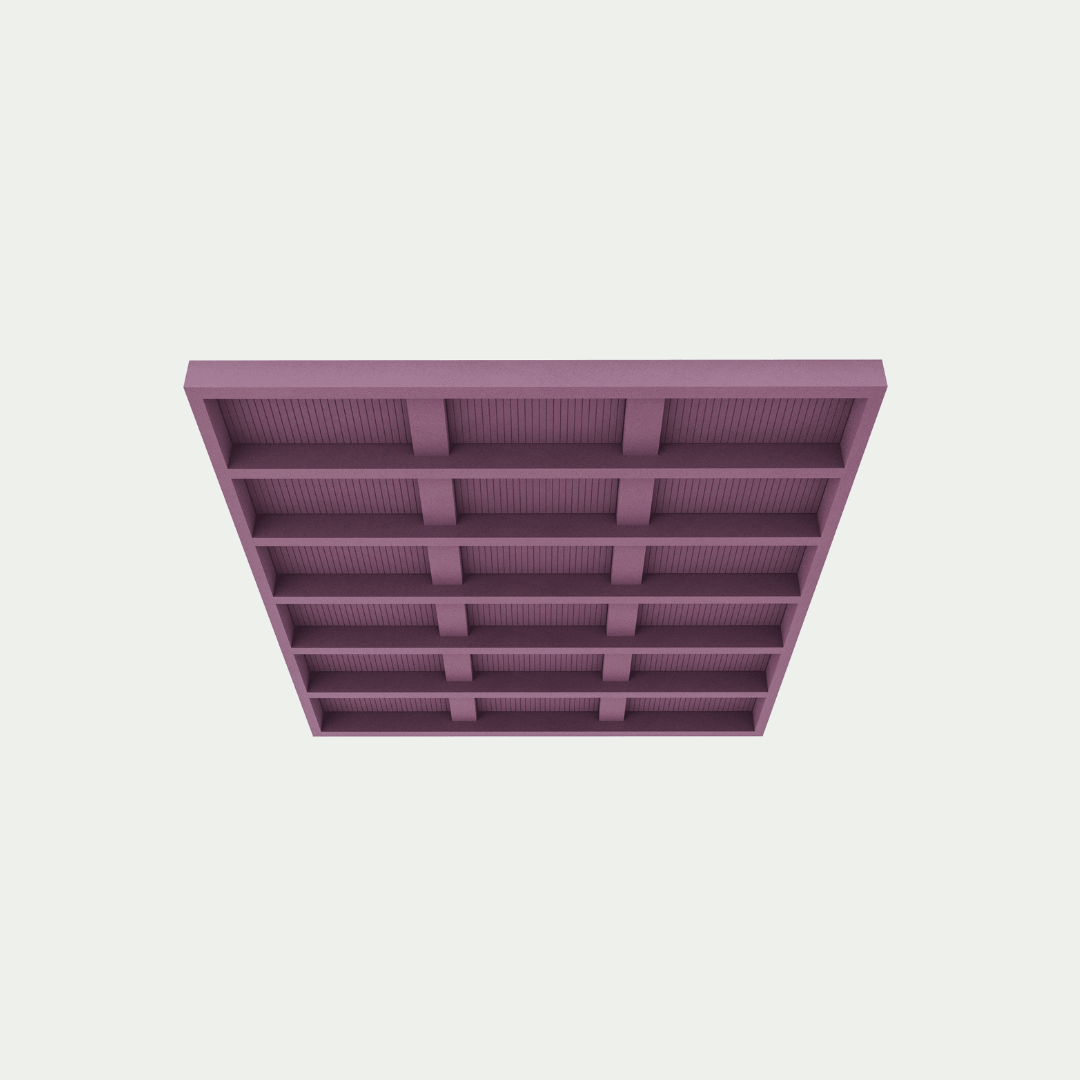

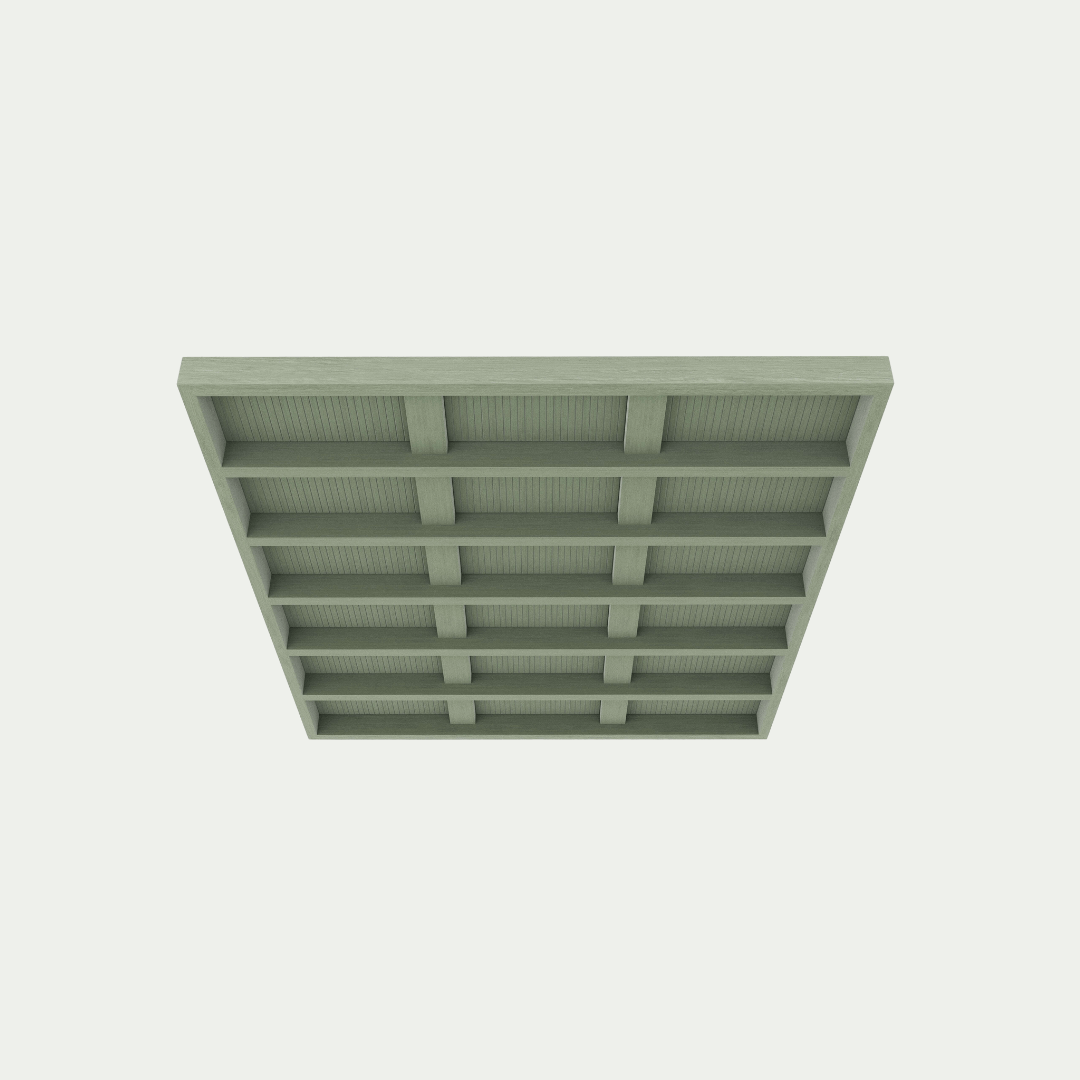

MERO Modular Ceiling Grid transforms acoustic design with a flexible, high-performance system that adapts to your space. Built from sustainable PET-Felt with 60% post-consumer recycled content, this modular grid delivers exceptional sound absorption (NRC 0.85) while offering unmatched design freedom.

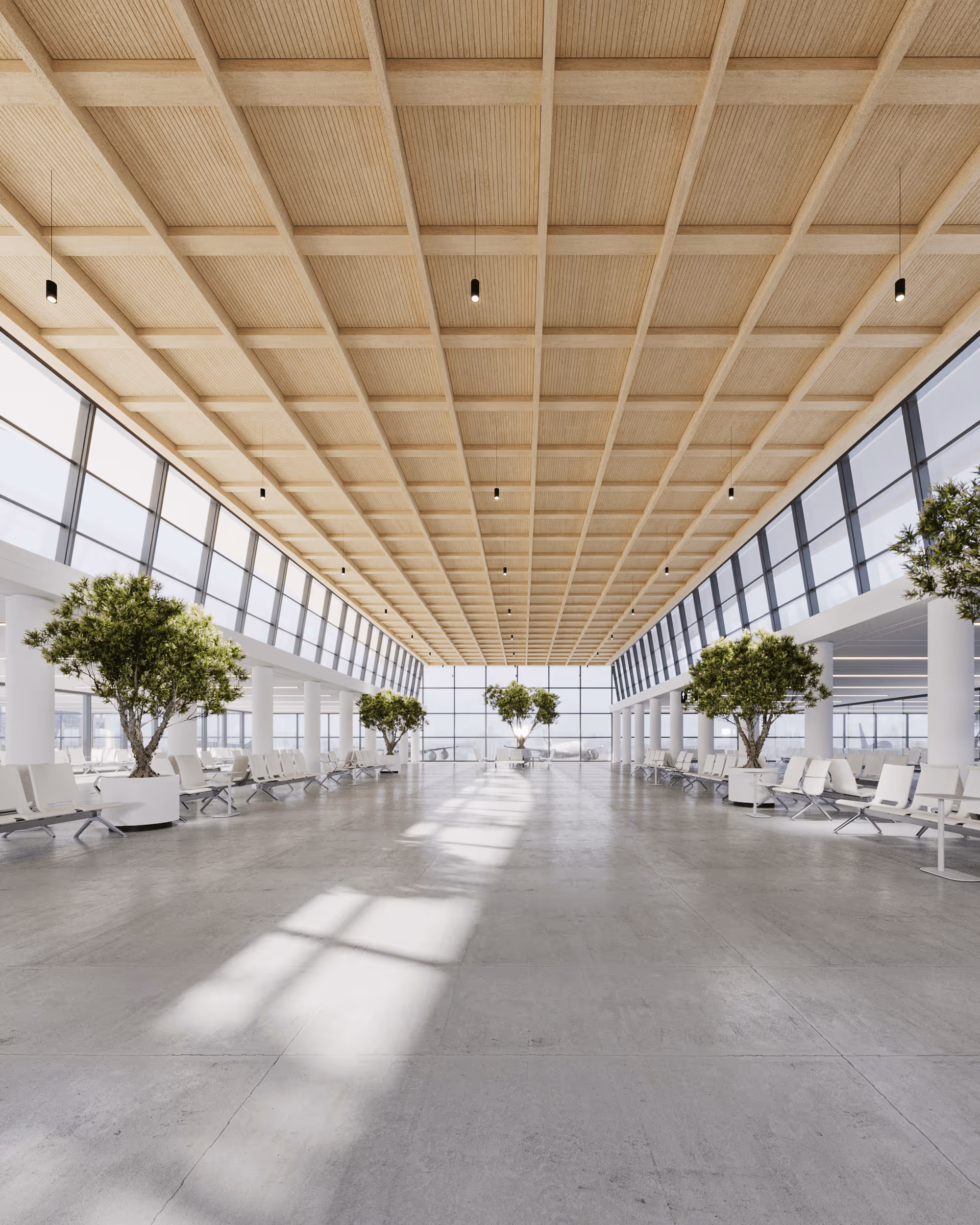

Choose from 36 colors or 33 natural wood-effect textures, configure beam depths and widths to create visual depth, and select from five distinctive tile cap patterns—or leave the grid open for an architectural statement. The system integrates seamlessly with standard T-Grid infrastructure, making installation straightforward without compromising aesthetics.

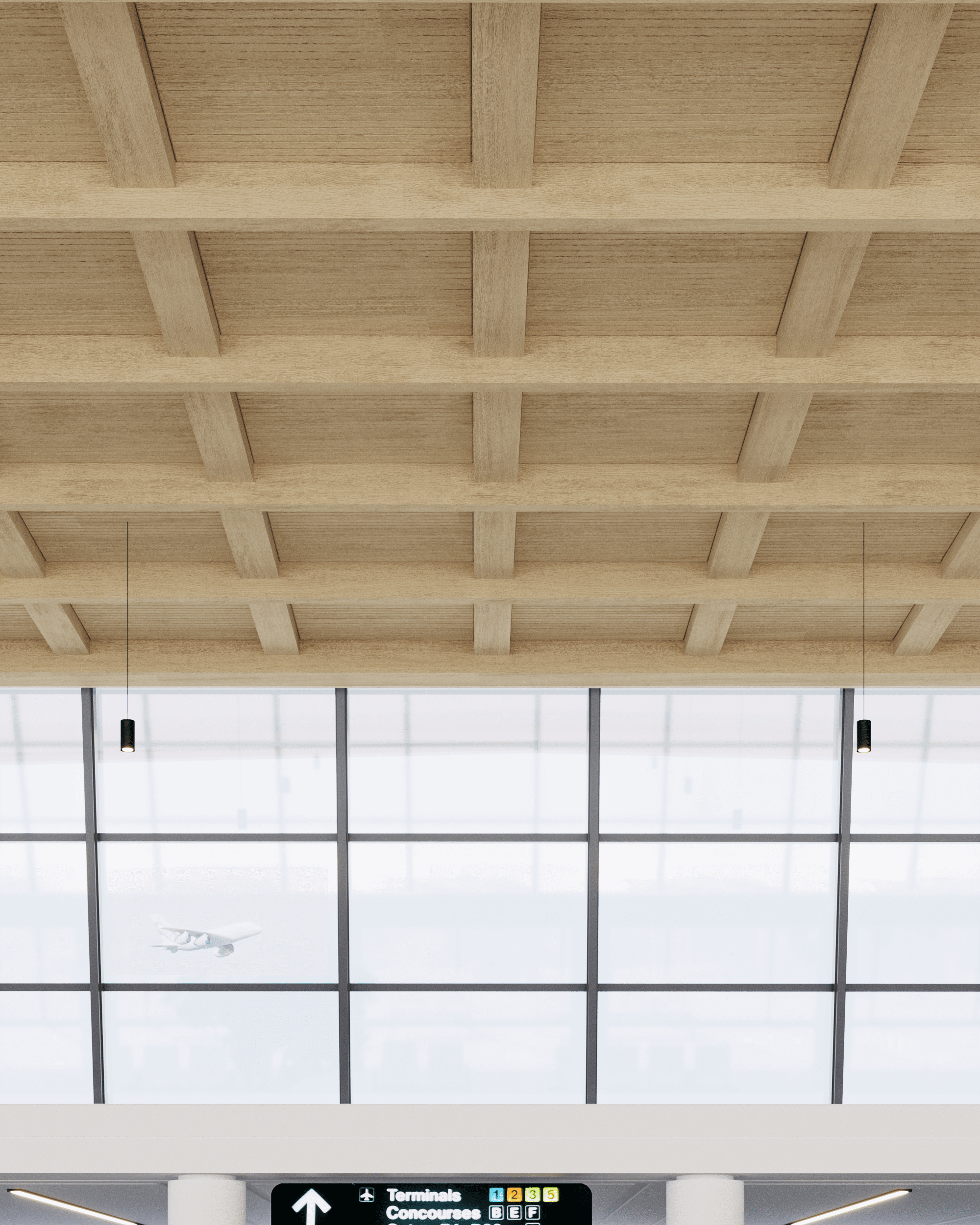

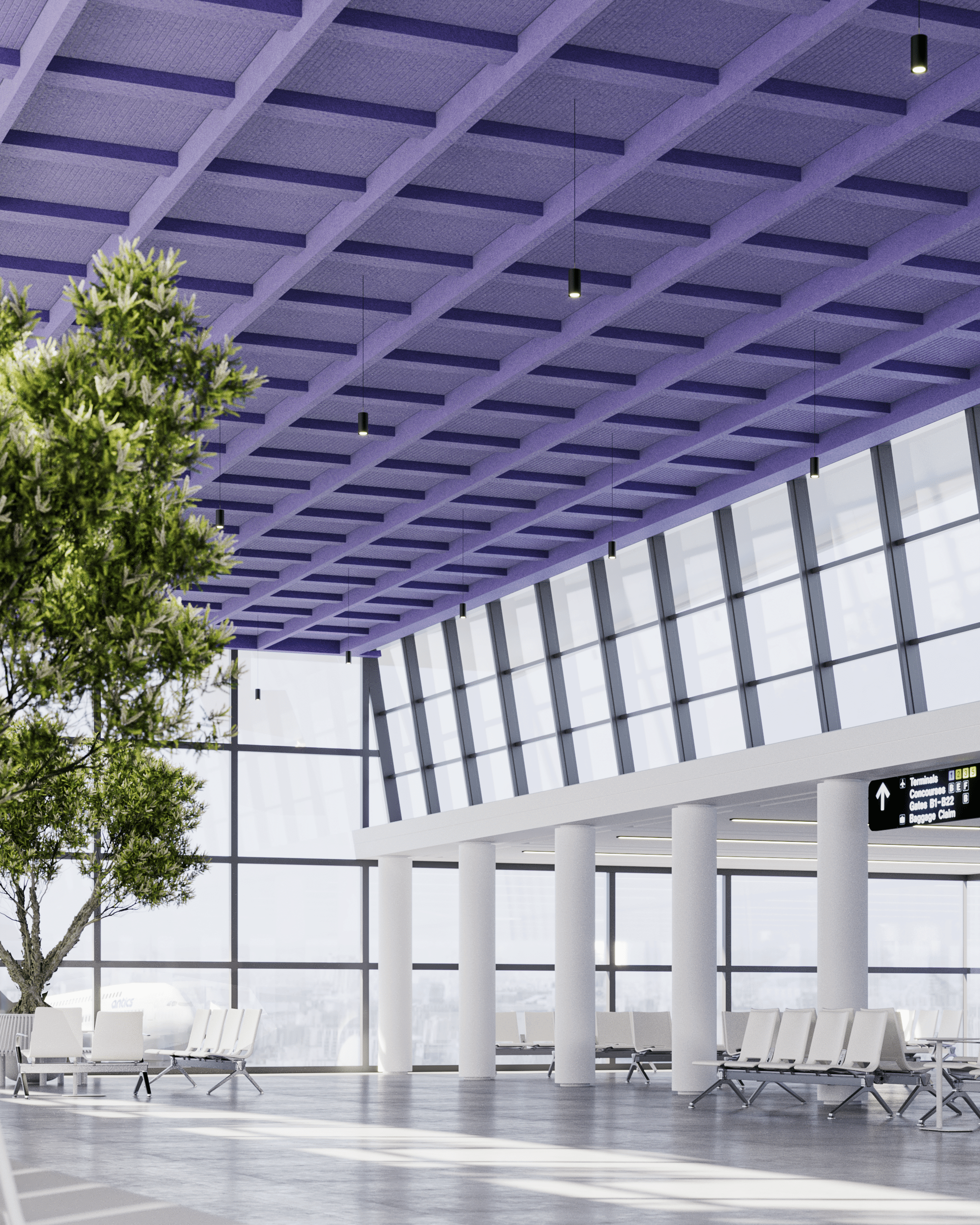

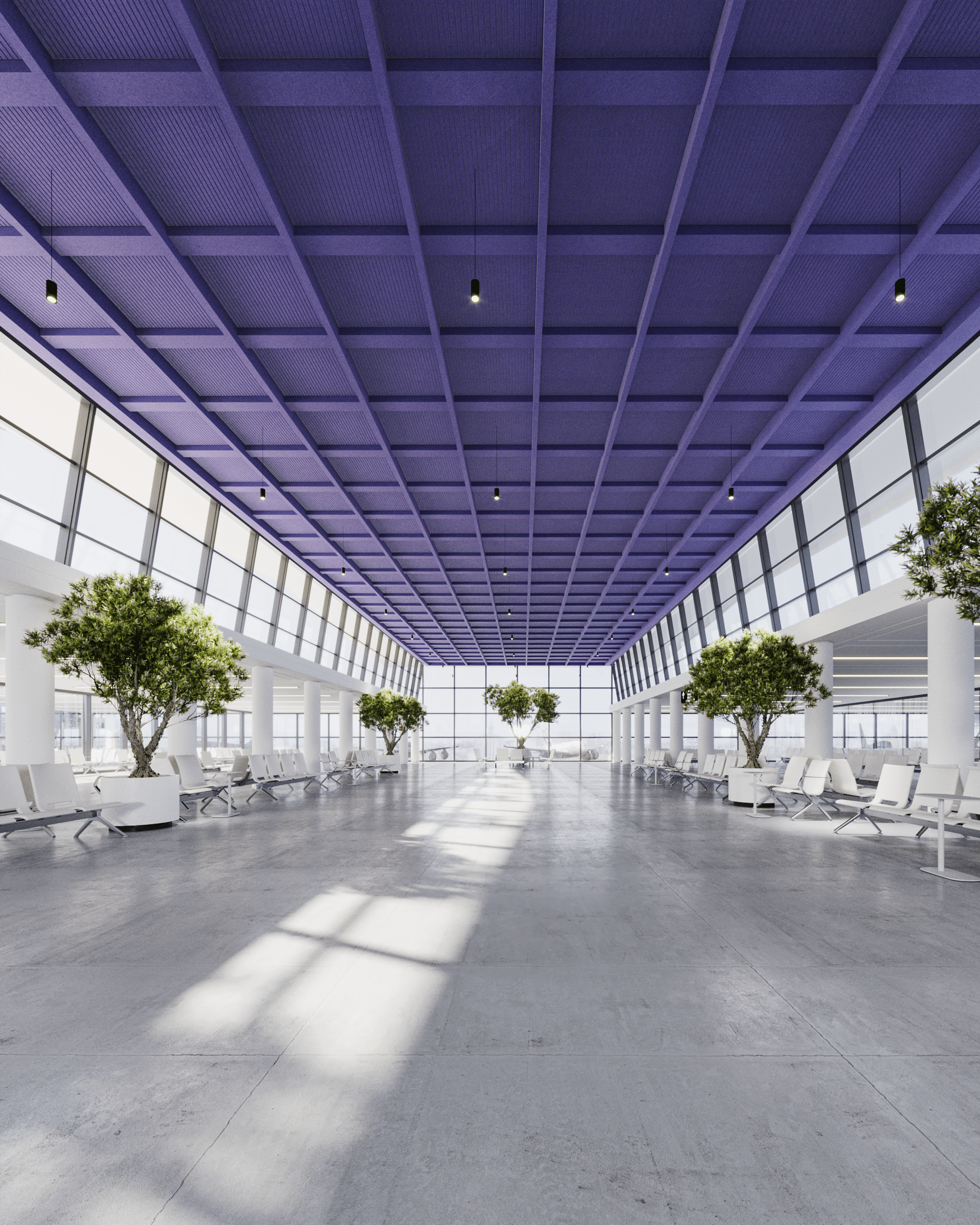

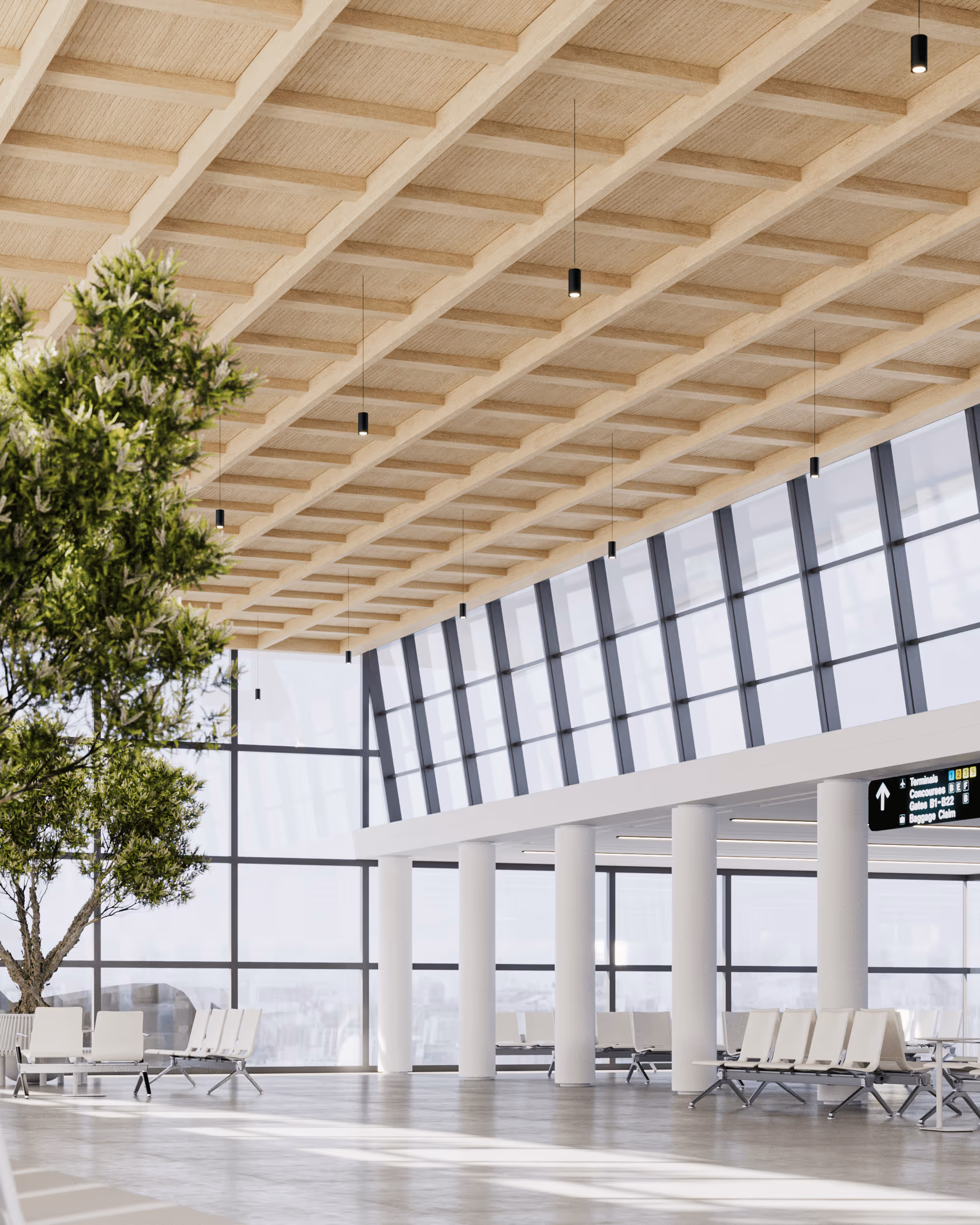

Whether you're designing a contemporary office, educational facility, or hospitality space, MERO provides the acoustic comfort your occupants need and the design flexibility your vision demands. Cradle to Cradle certified and backed by a 10-year warranty, it's acoustic innovation that respects both people and planet.

Quote request
Variant
Variant
Option oneOption twoOption three
Add to cart
Buy now
Free shipping over $50
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product specification
Technical information
Tags
Dimensions

• Beam Height: 100mm/200mm (3 15/16"" / 7 7/8"")

• Beam Width: 80mm/200mm (3 5/32"" / 7 7/8"")

• Cell Size:

- 600 x 600mm (23 5/8"" x 23 5/8"")

- 600 x 1200mm (23 5/8"" x 47 1/4"")

- 1200 x 1200mm (47 1/4"" x 47 1/4"")

Cell sizes depend on T-Grid type available in your region

Composition

• Mero Beams: ARCHISONIC® Felt - 100% PET (60% post-consumer recycled content)

• T-Grid Twist Clip: Steel (RAL9005 black)

• Tile Clip: PET (recycled)

• Tile Caps: ARCHISONIC® Felt - 100% PET (60% post-consumer)

Thickness
Finishing material
PET Felt
Gewicht
• 12mm Felt: 2400 g/m² (0.49 lbs/sqft) • 24mm Felt: 4000 g/m² (0.82 lbs/sqft)
Available colours

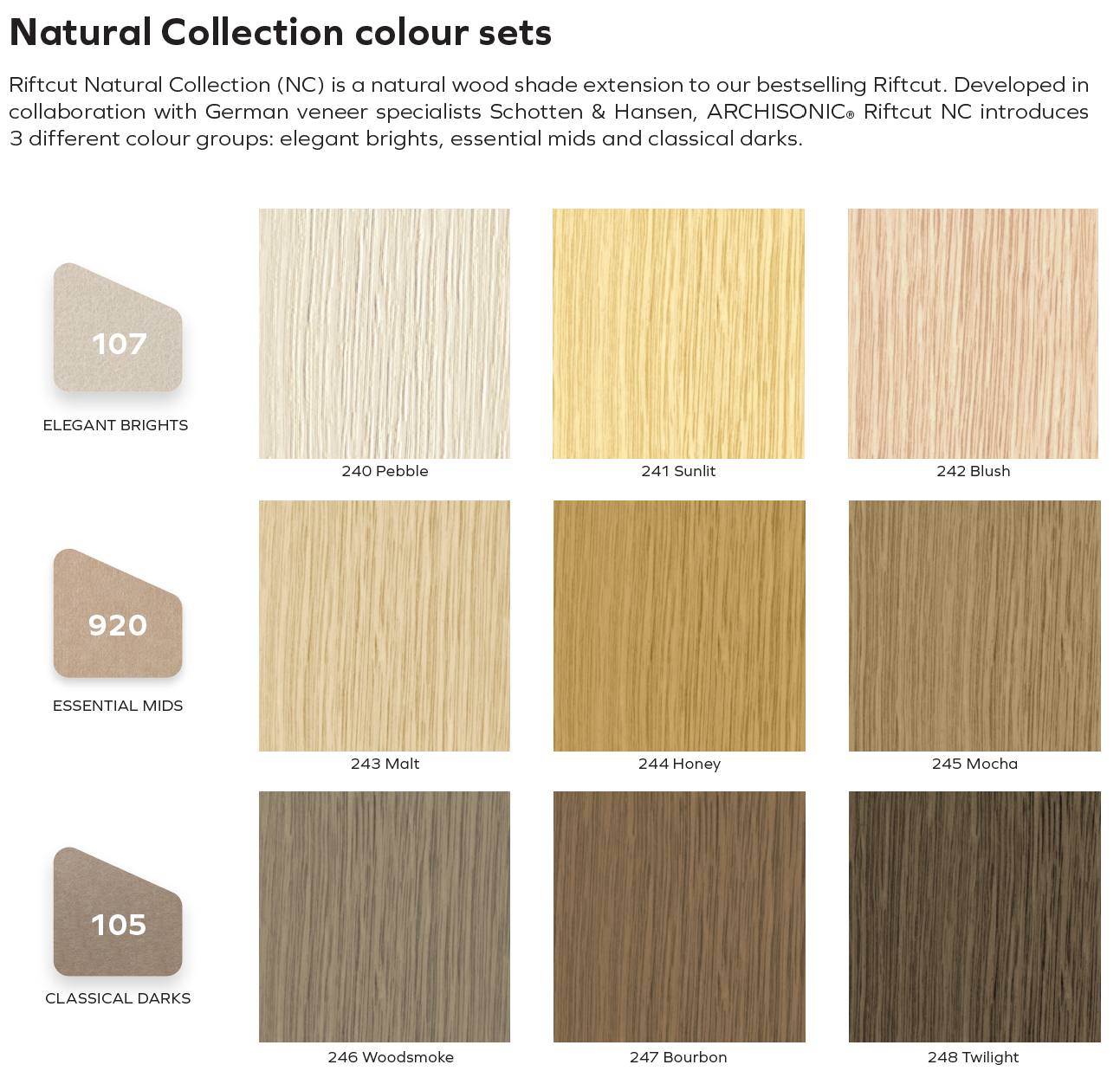

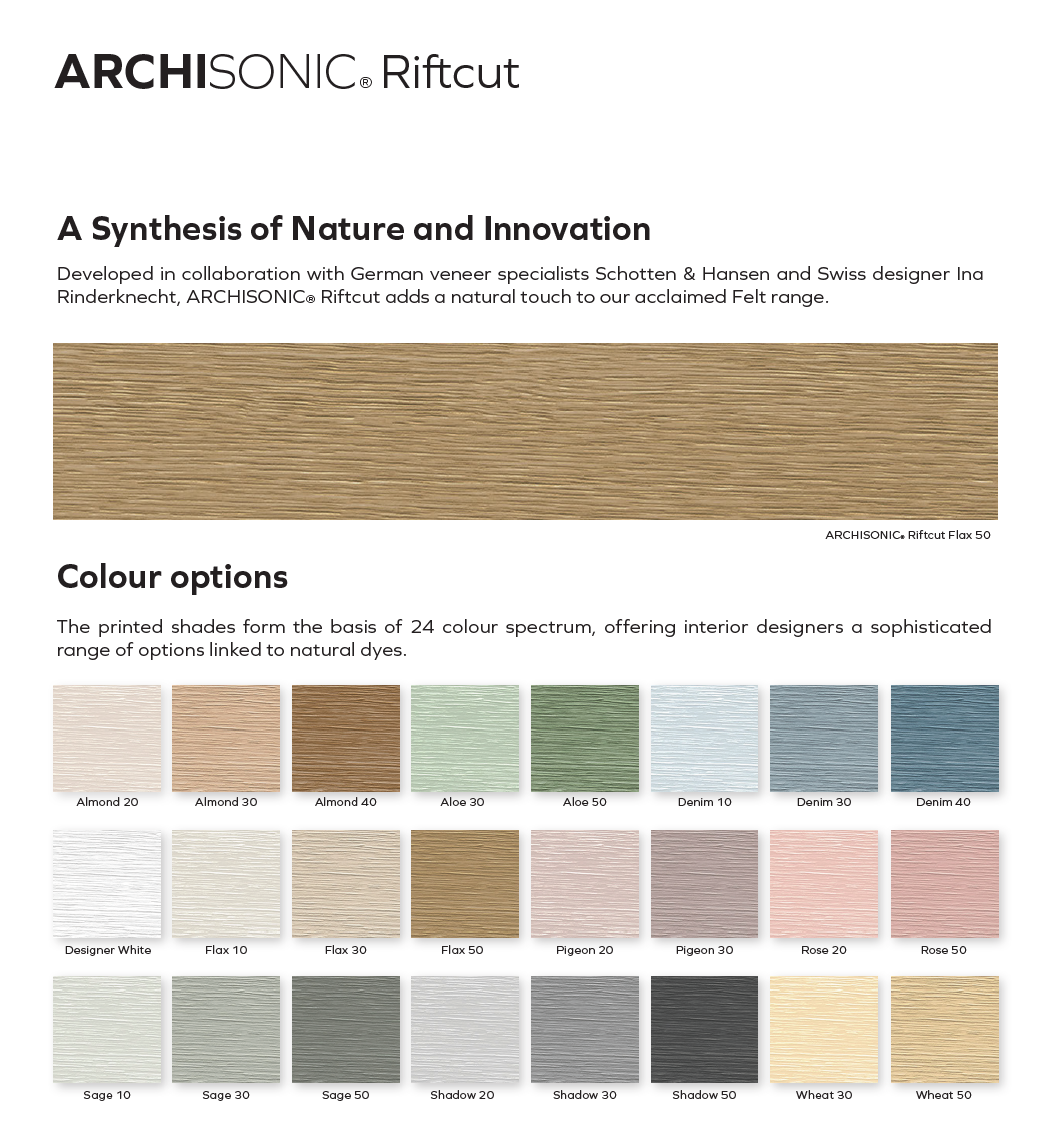

• 36 solid colors in 8 distinct color families • 33 Riftcut printed texture options (wood-effect patterns)
Sound absorption

Acoustic Performance (measured with 300mm air cavity):

• αw (ISO): 0.90 (Class A absorber)

• NRC (ASTM): 0.85

• SAA: 0.85

Frequency performance:

• 125Hz: 0.55

• 250Hz: 0.70

• 500Hz: 0.85

• 1000Hz: 0.90

• 2000Hz: 0.95

• 4000Hz: 1.00

Testing standards:

• ISO 354:2003 - Measurement of sound absorption

• ISO 11654:1997 - Sound absorber classification

• ASTM C423-17 - Sound absorption test

• ASTM E795-16 - Sound absorption test methods

Maintenance

• Daily cleaning: Alcohol solution (75%) (e.g., Pantasept)

• Dust removal: Feather duster or vacuum cleaner

• Heavy dirt: Hydrogen peroxide treatment

• Printed options: Dust regularly, use mild detergents sparingly, blot instead of rubbing

Recyclability
• 100% PET material with minimum 60% certified post-consumer recycled content • Fully recyclable • Cradle to Cradle certified • Supports circular economy principles
Fire reduction class EU

• DIN EN 13501-1: B-s1, d0

• ASTM E84: Class A

Groene labels

• Cradle to Cradle Certified

• Declare Label

• UL Environmental Product Declaration (EPD)

• Member of US Green Building Council

• Ecobau 1st Priority

• Climate-KIC

• VOC emissions LEED EQ Credit (low-emitting products)

• SCS Recycled Content Certification

• BREEAM Exemplary rating

• French VOC Regulation: A+

• CDPH Standard Method V1.2: Pass

• Greenguard Gold (for printed inks)

• CP65 and RoHS3 compliant (inks)
