Noren Acoustic Curtain System

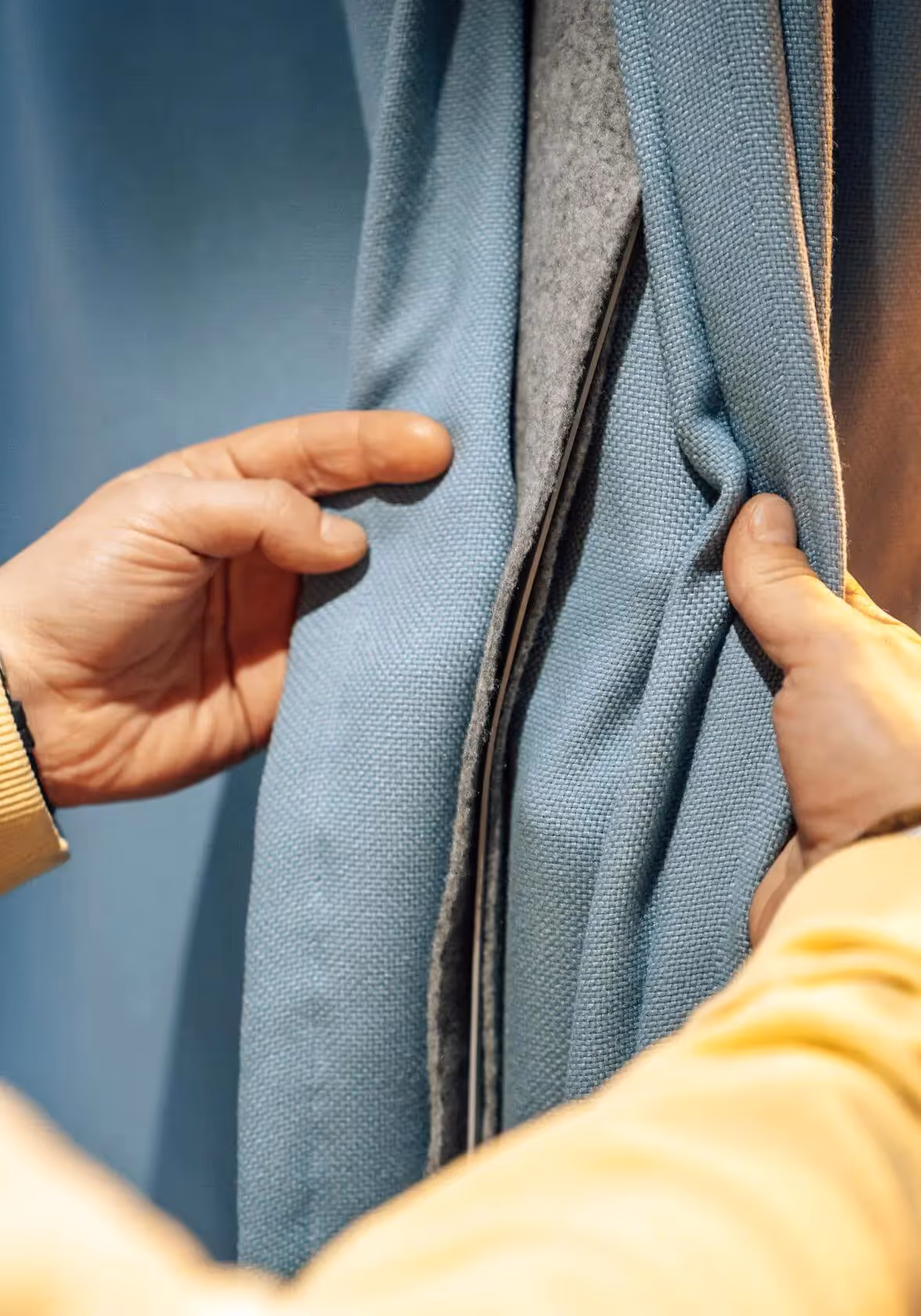

The Noren Acoustic Curtain System builds a room out of fabric. Five layers work together: ARCHISONIC® Textile outside, woven from 100% recycled Trevira CS ECO polyester, around an absorbing membrane of 94% post-consumer recycled PET and a silicone sound blocker. Drawn along a black anodised aluminium ceiling track, it absorbs and blocks sound, then gathers aside when the space needs to open up.

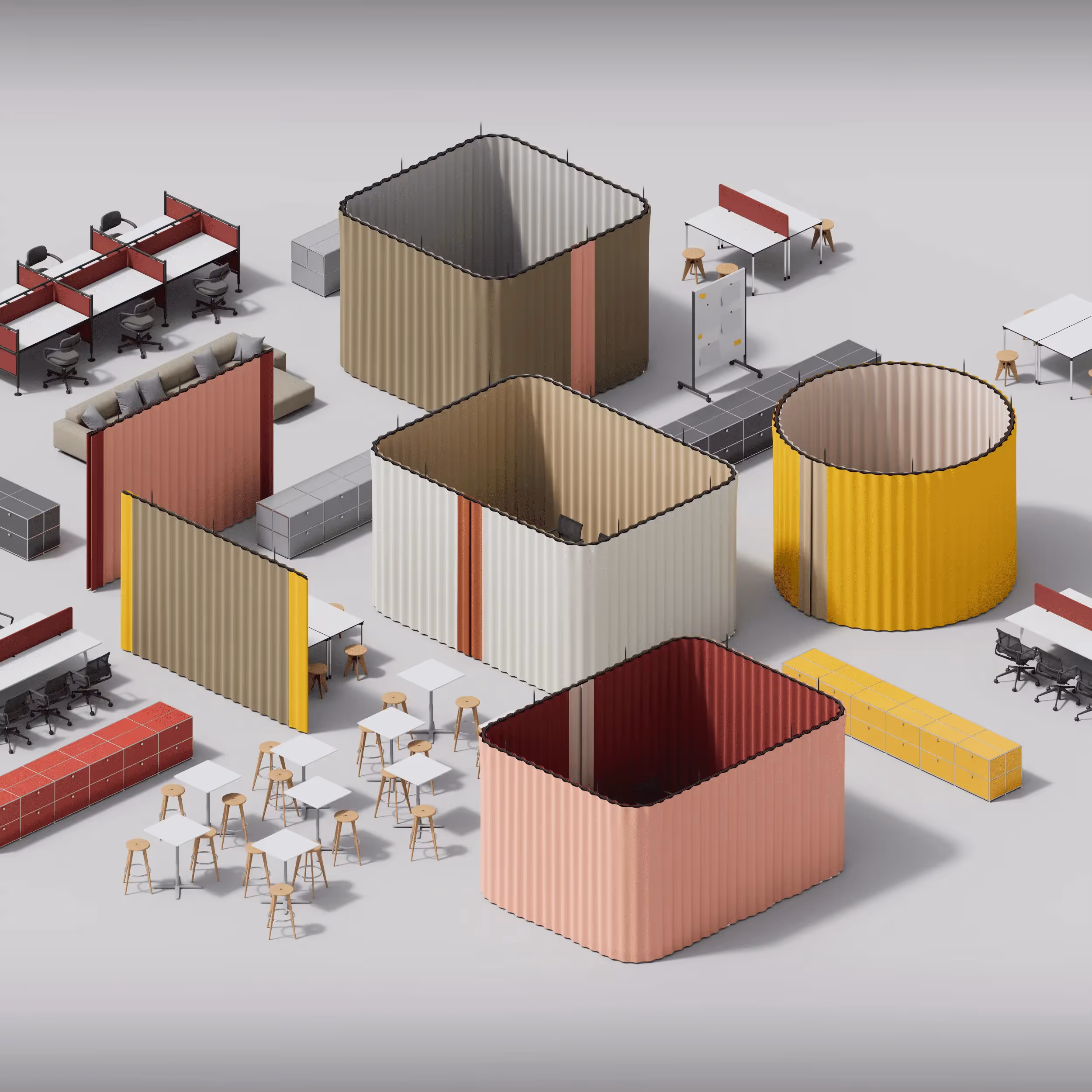

Standard enclosures come as Square 3600, Rectangle 4800 x 3600 and Circle Ø3600, plus the modular Straight 2800 divider, all 2700 mm high, while straight and radial rails combine into bespoke layouts. Noren reaches Rw 18 dB to ISO 717-1 and absorbs with αw 0.35 to ISO 11654.

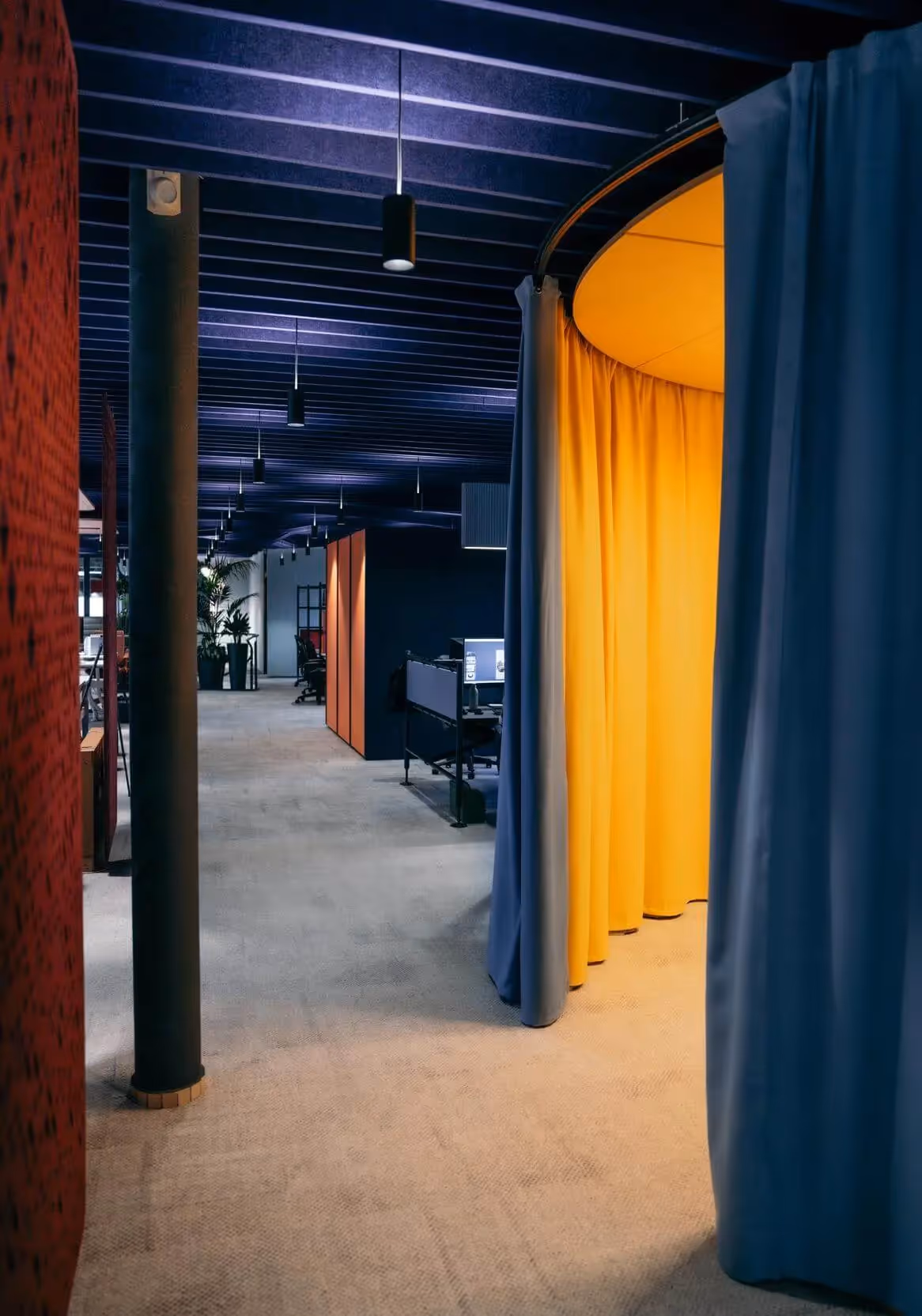

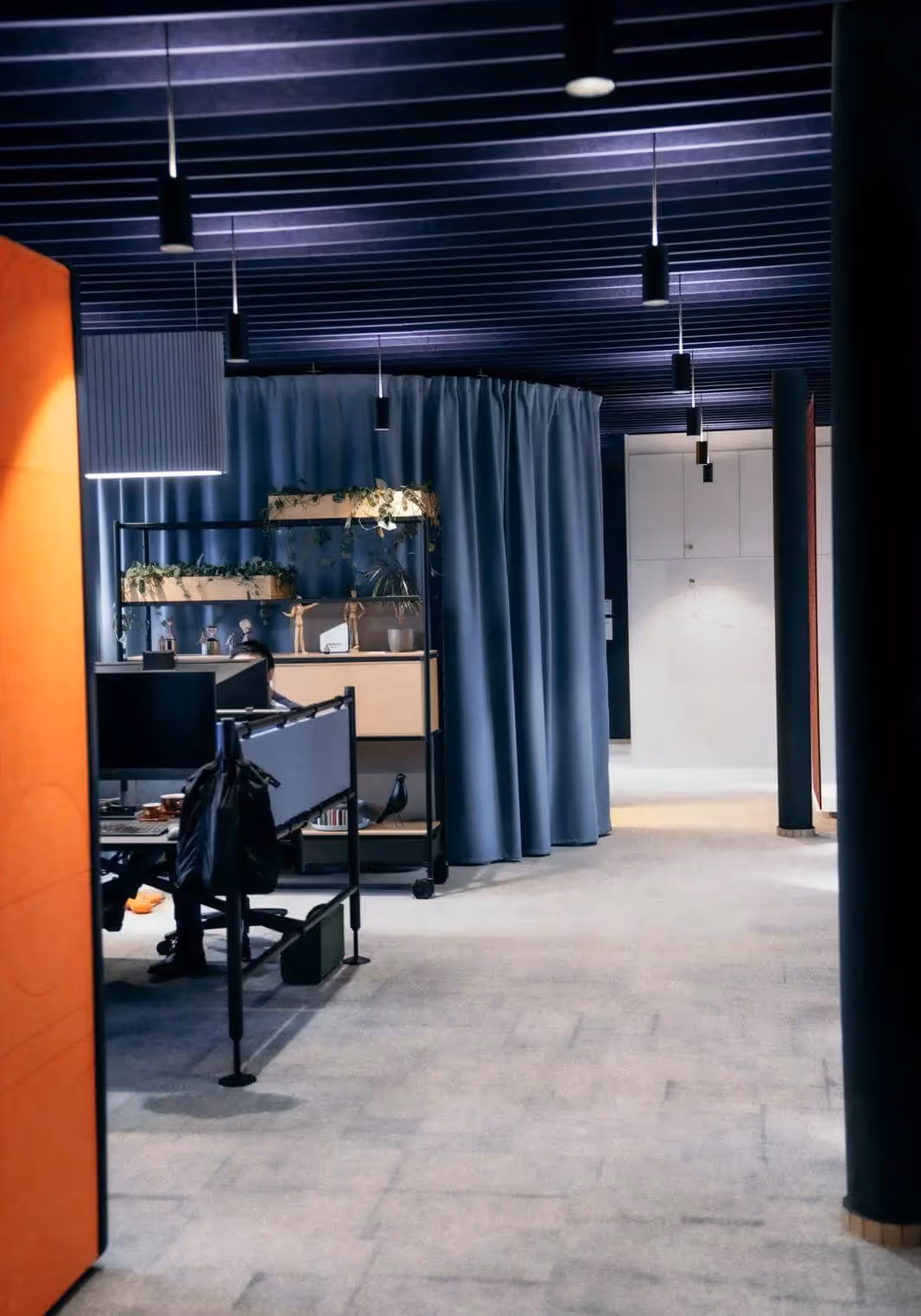

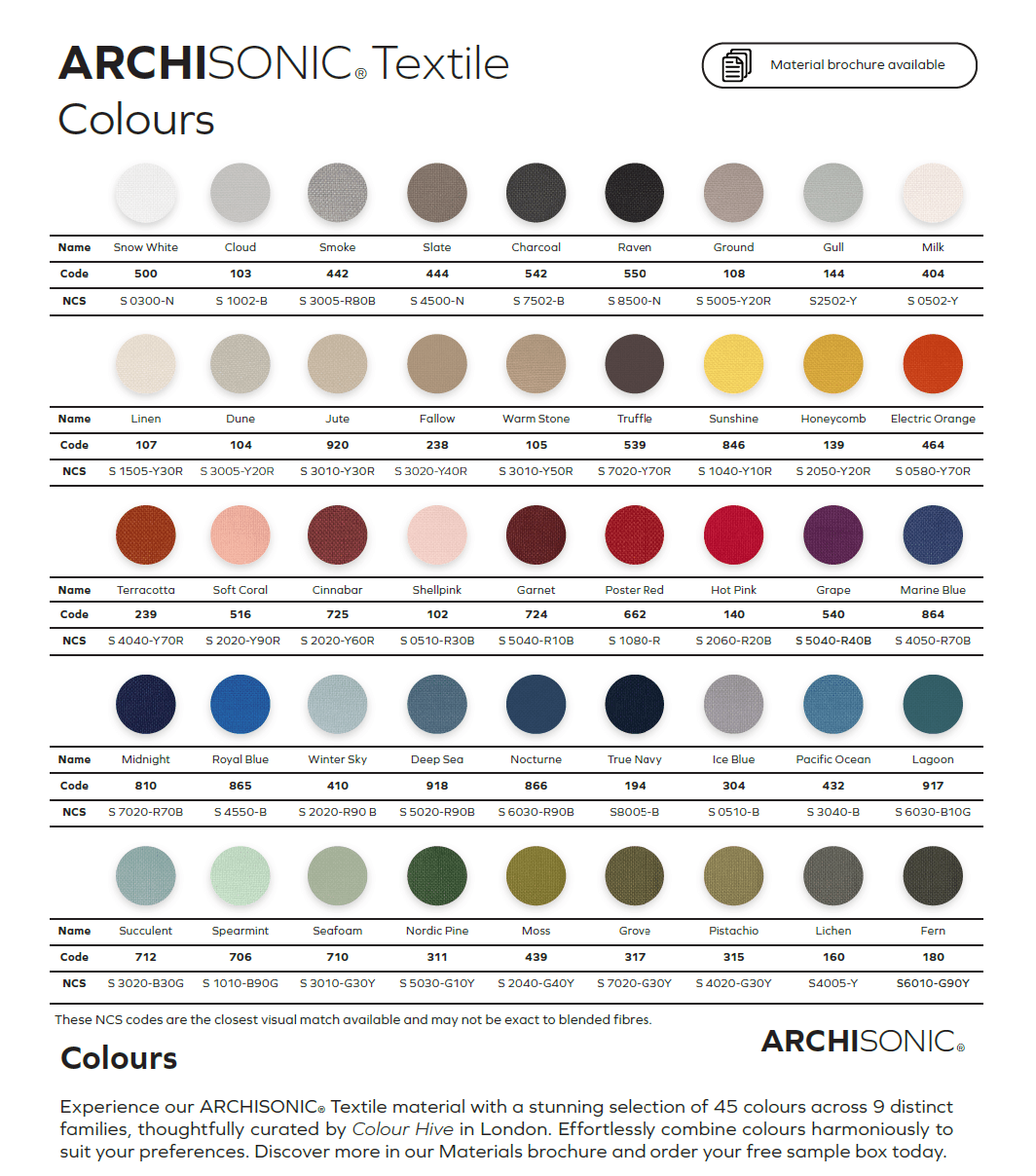

In 45 colours, with end pieces in the same or a contrasting shade, and a textile that can meet DIN 4102 B1 and EN 13773 Class 1, Noren creates instant meeting corners and quiet zones in offices, hospitality and learning spaces.
Height: 2700 mm (floor to top of track)
Square 3600: 3600 x 3600 mm
Rectangle 4800: 4800 x 3600 mm
Circle 3600: Ø3600 mm
Straight 2800: 2800 mm long, modular
Bespoke: straight rail 3000 mm, radial rails R500 and R1800 mm, cut on site
Outer layers: ARCHISONIC® Textile, 100% recycled polyester Trevira CS ECO
Absorber membrane: 94% post-consumer recycled PET
Blocker membrane: silicone
Track: black anodised aluminium
Carriers and connectors: black powder-coated steel
Airborne sound insulation (ISO 10140-2 / ISO 717-1): Rw (Ctr) 18 (-2) dB, STC 18
Sound absorption (ISO 354 / ISO 11654): αw 0.35 (H), NRC 0.40, SAA 0.39
Textile can meet: DIN 4102 B1, EN 13773 Class 1, NF 92501-7 M1, UNI 9174/8456 C1, NFPA 701
EN 13501-1 class not specified in datasheet
