Pixels Retractable Room Division

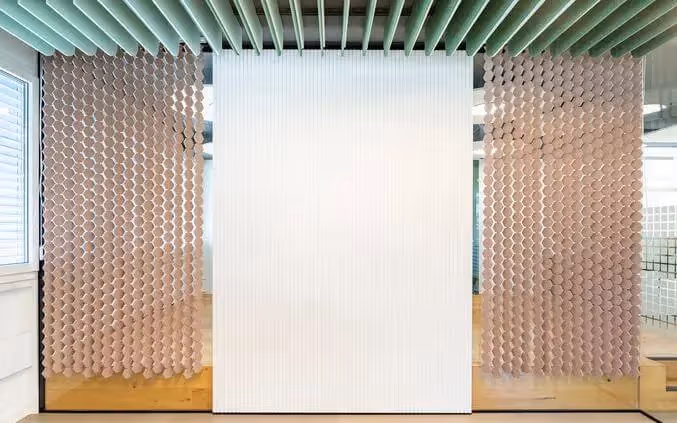

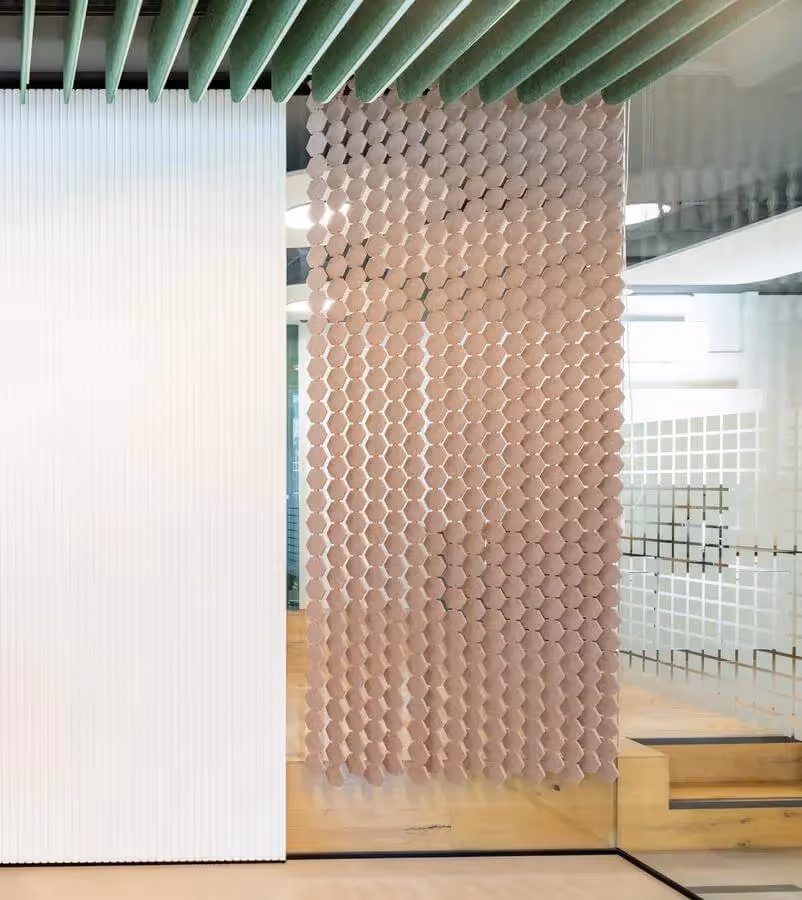

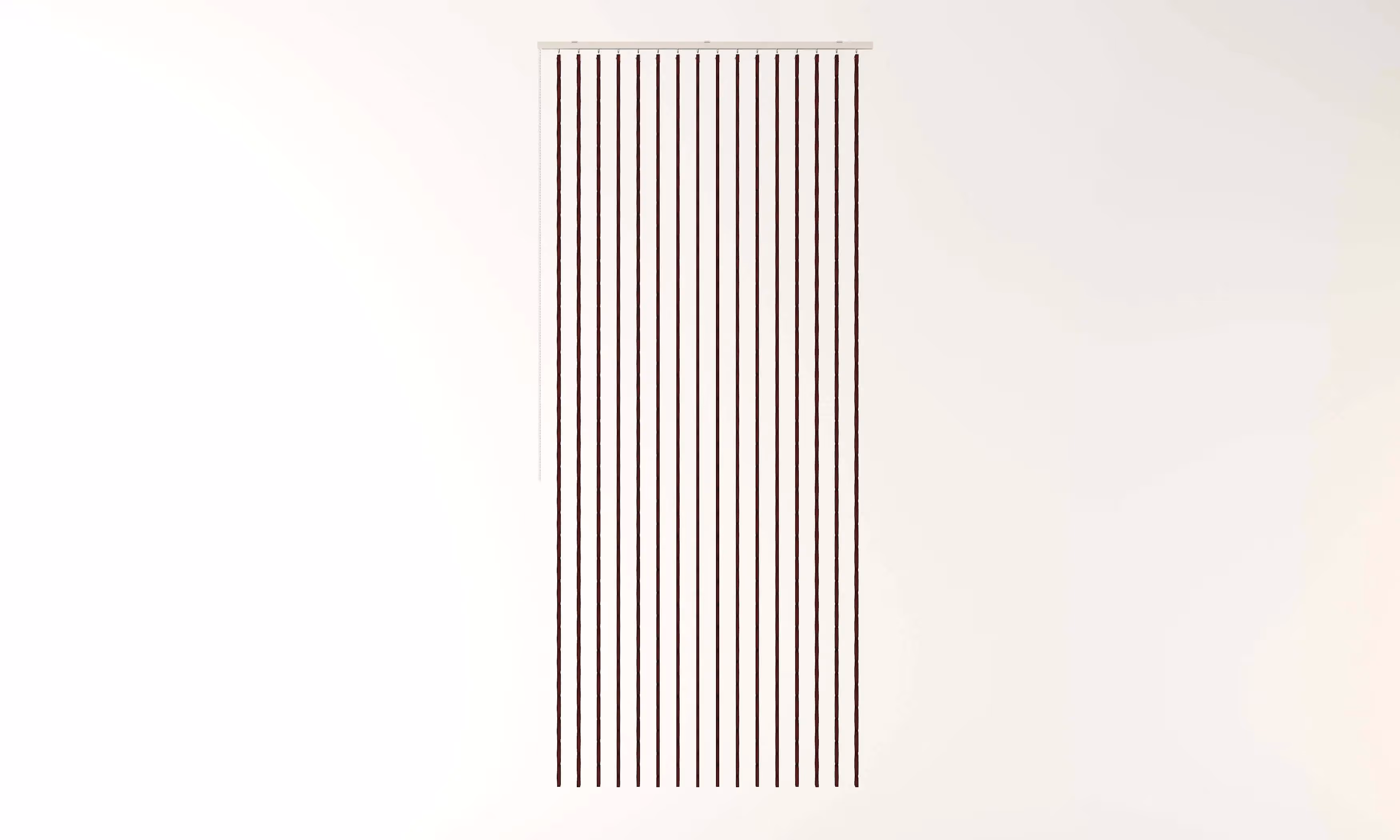

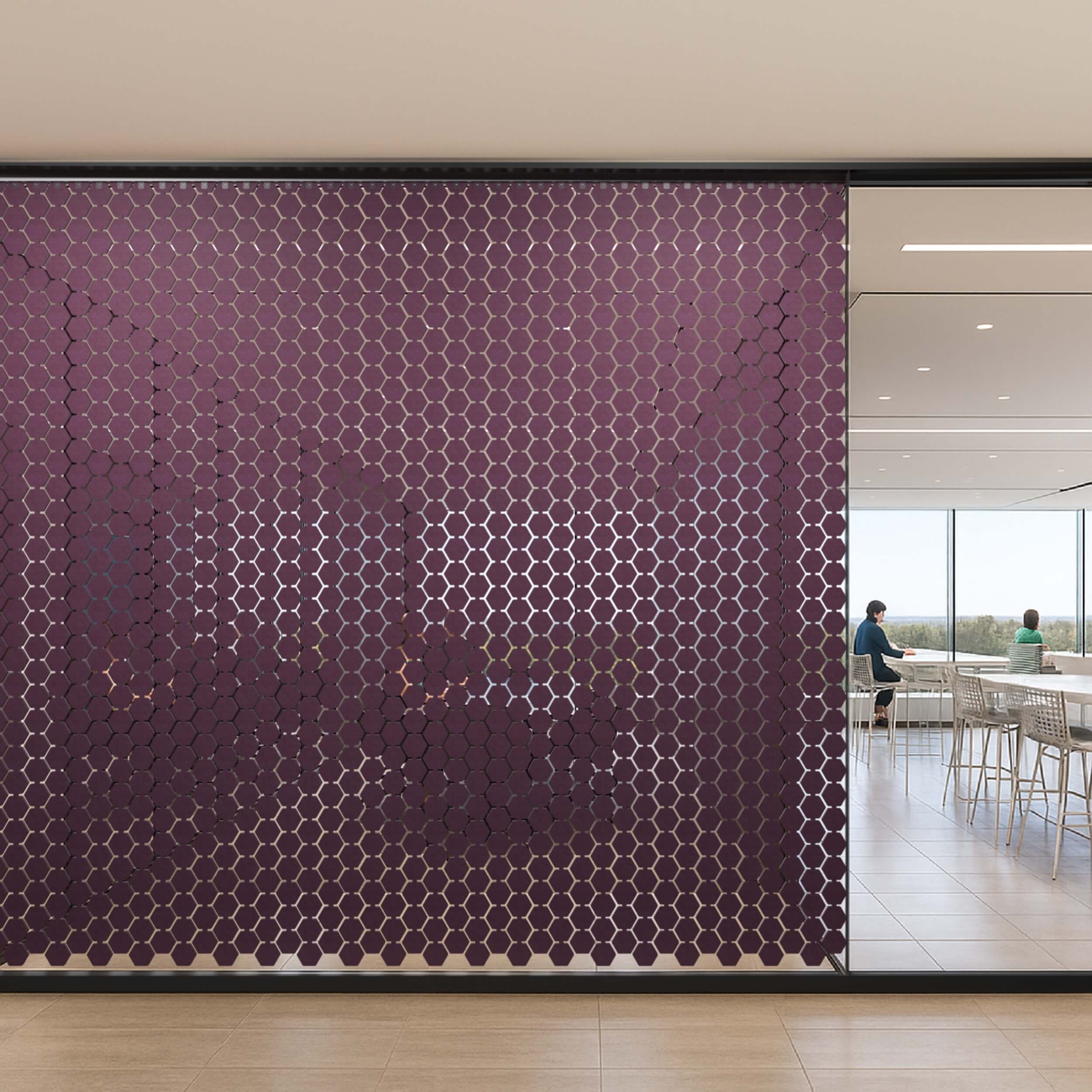

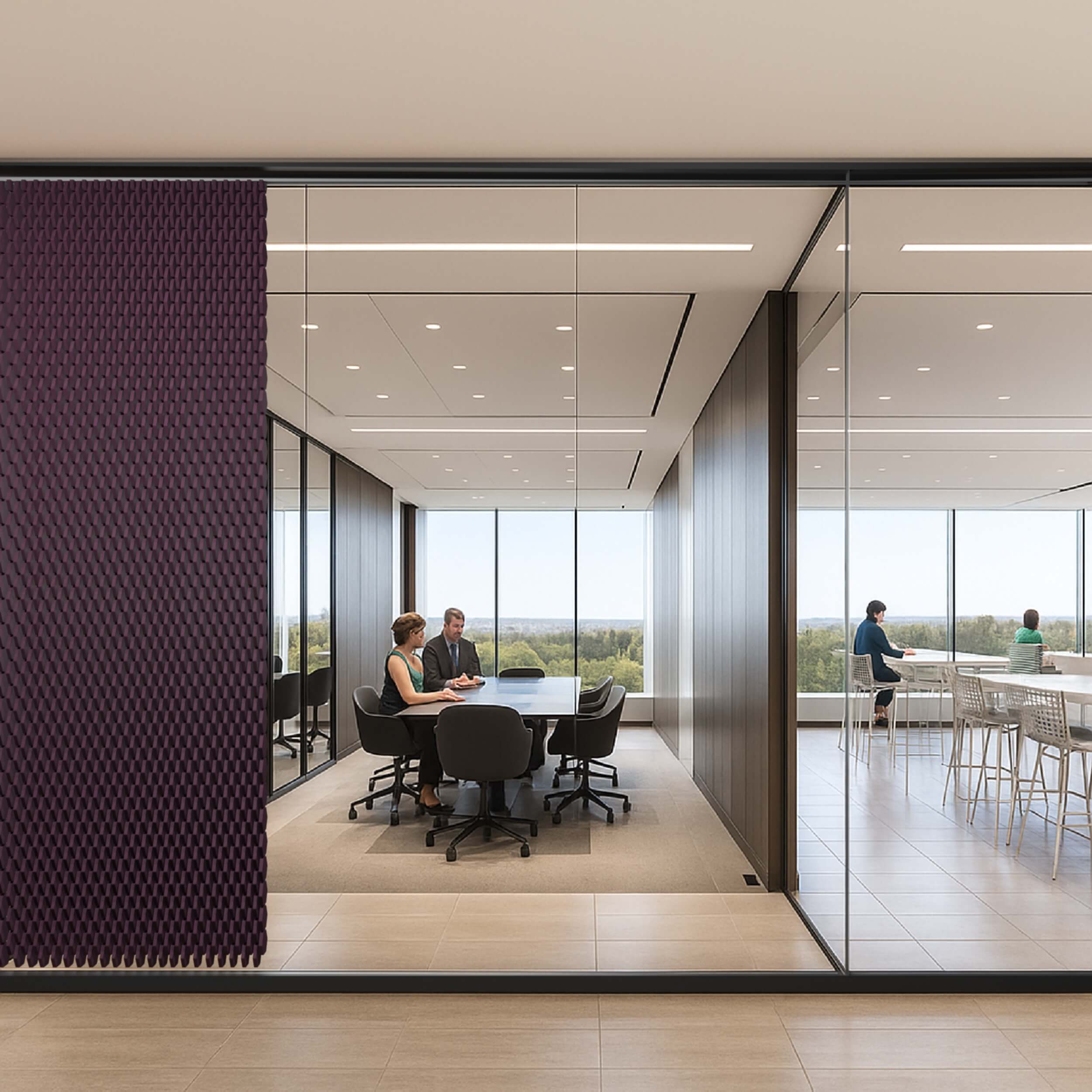

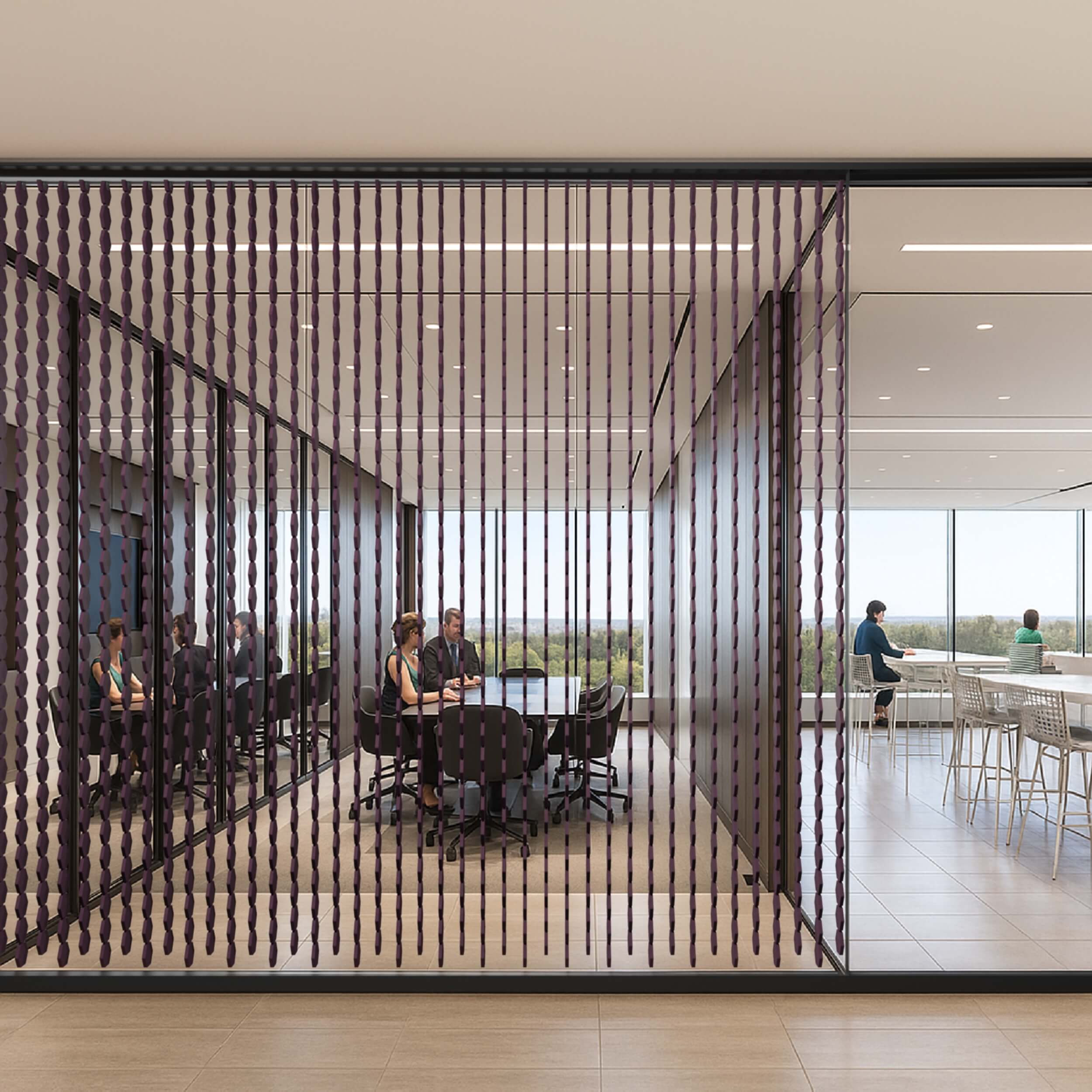

The Pixels Retractable Room Division, designed by Rafa Ortega, draws a room with a curtain of felt. Vertical slats of 12 mm ARCHISONIC® Felt, a PET felt with 60% certified post-consumer recycled content, hang from a ceiling rail, cut into chains of squares, hexagons or flowing drops, or left plain. Slide them to open or close a space, or rotate them to filter daylight, soften glare and control views, all while they absorb sound.
Each module is 1250 mm long and 2816 to 2853 mm high depending on the shape, trimmable on site and combinable side by side. Tested to ISO 354 and ISO 20189, a 2000 mm run adds 4.1 to 4.5 m² equivalent absorption area at 1000 Hz.
In 45 colours, the felt holds fire reaction class B-s1,d0 in most colours under EN 13501-1 and is certified Cradle to Cradle, Declare and SCS Recycled Content. Pixels brings flexible privacy and shade to offices, hospitality and learning spaces.
Module length: 1250 mm (custom 650 to 1400 mm in 75 mm steps, orders over 50 linear metres)
Height: 2816 to 2853 mm depending on shape, adjustable on site
Slat thickness: 12 mm

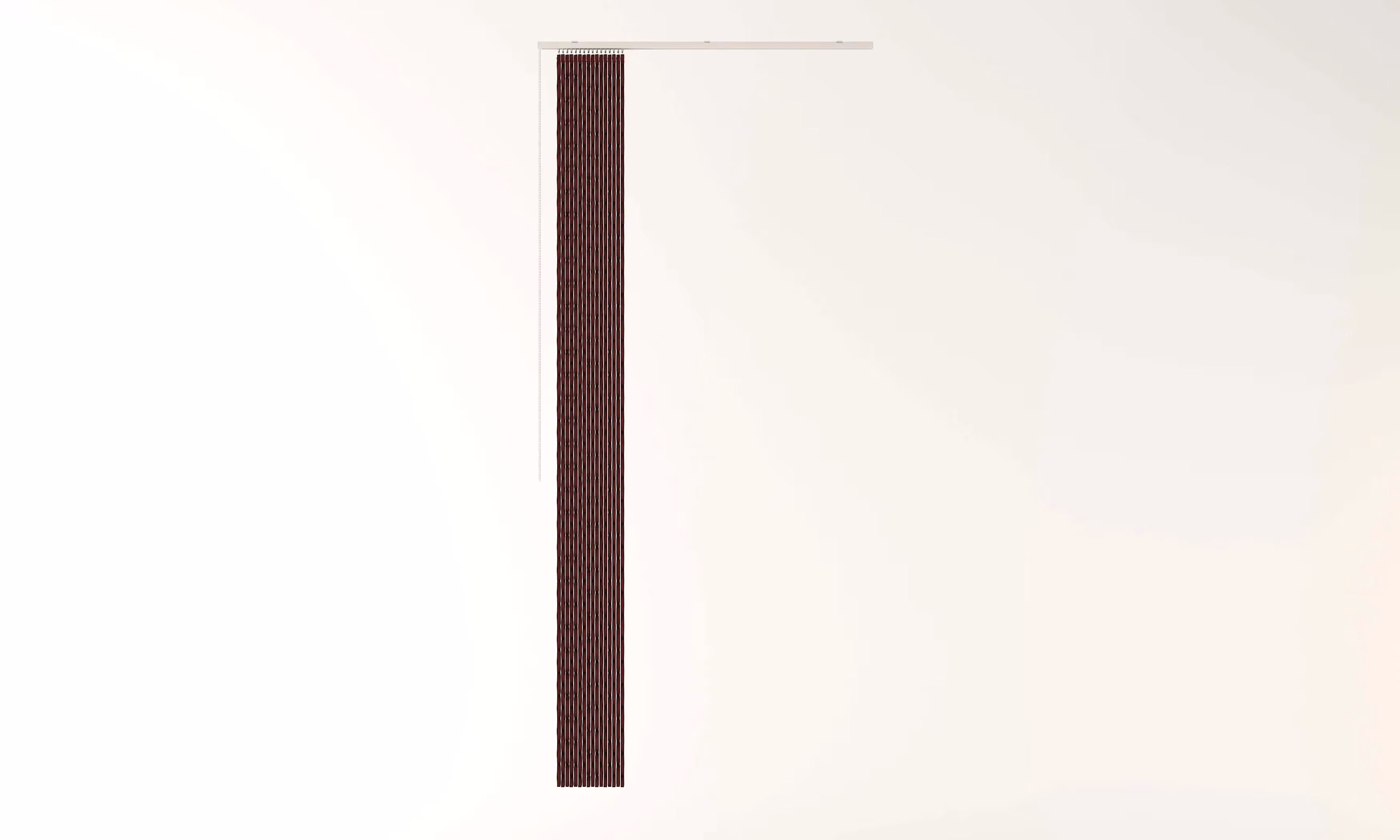

Slat depth: 50 mm closed; open 67 mm (Square, Plain), 89 mm (Hex), 98 mm (Drop)

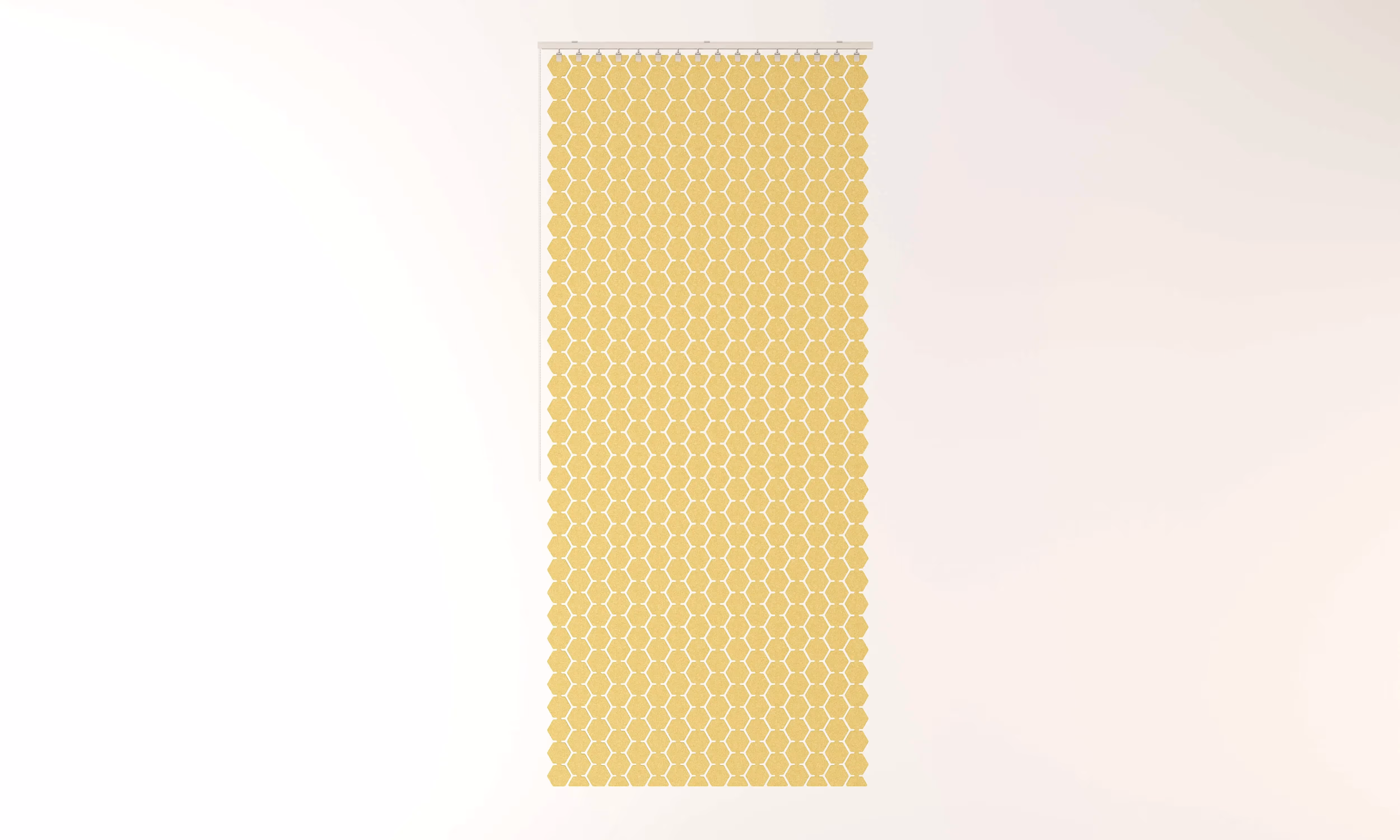

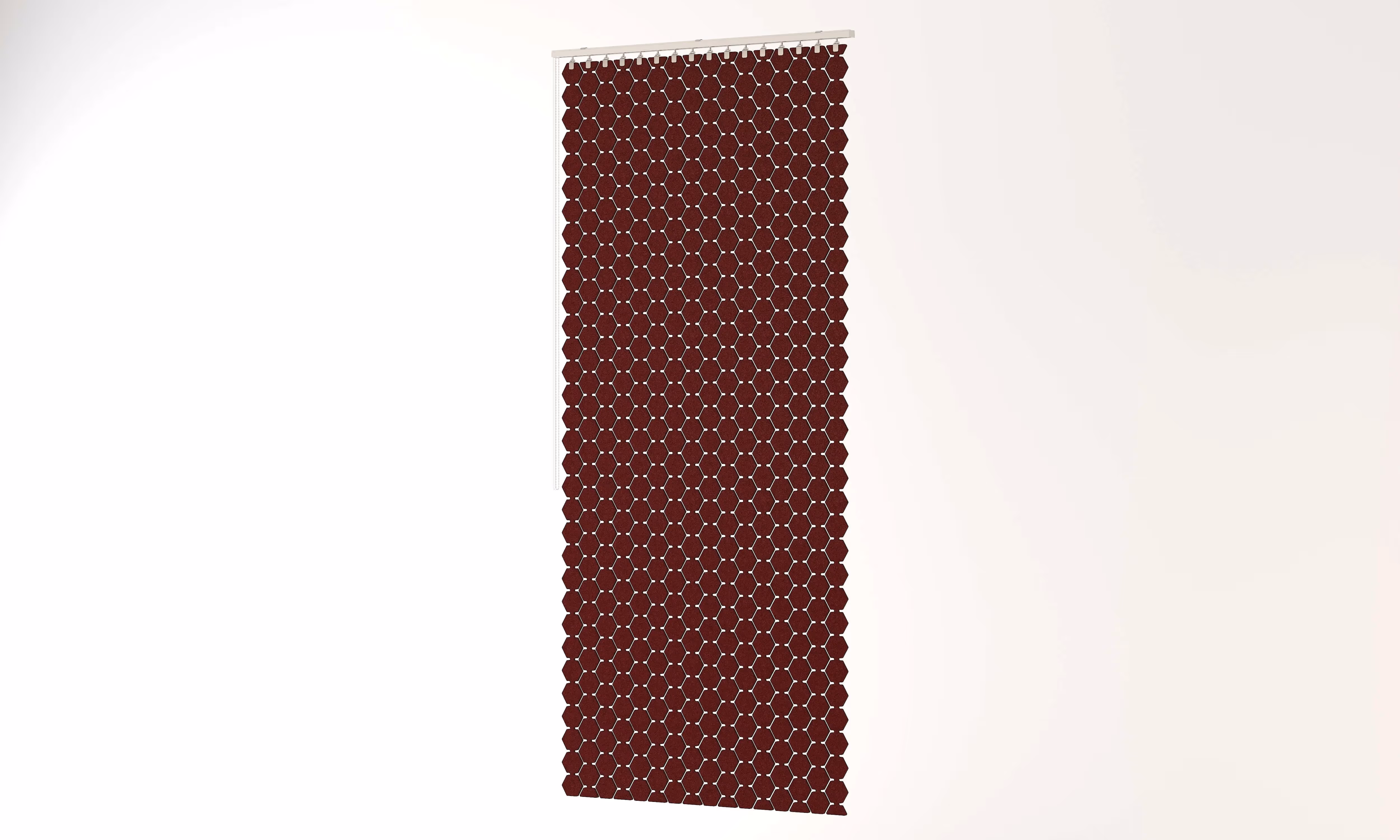

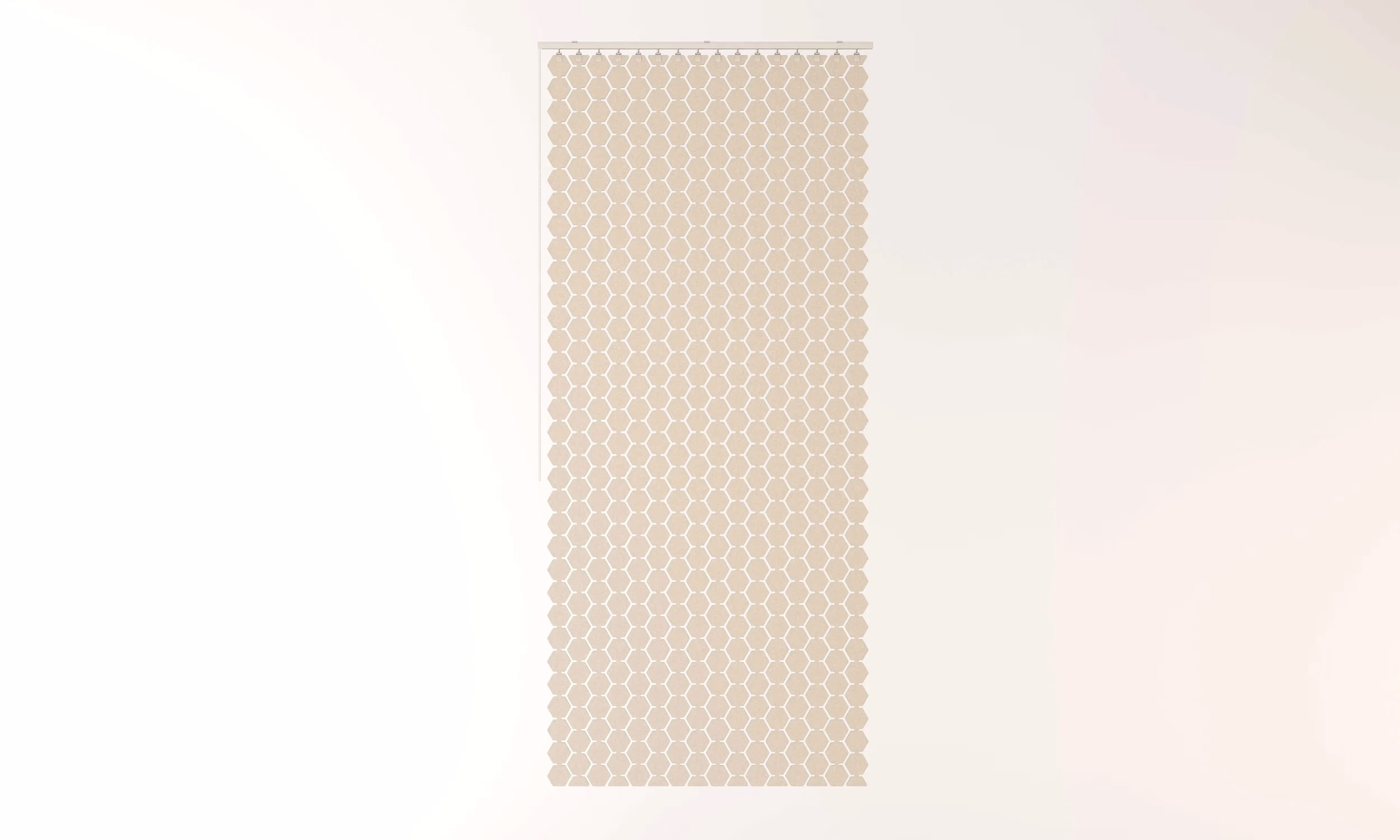

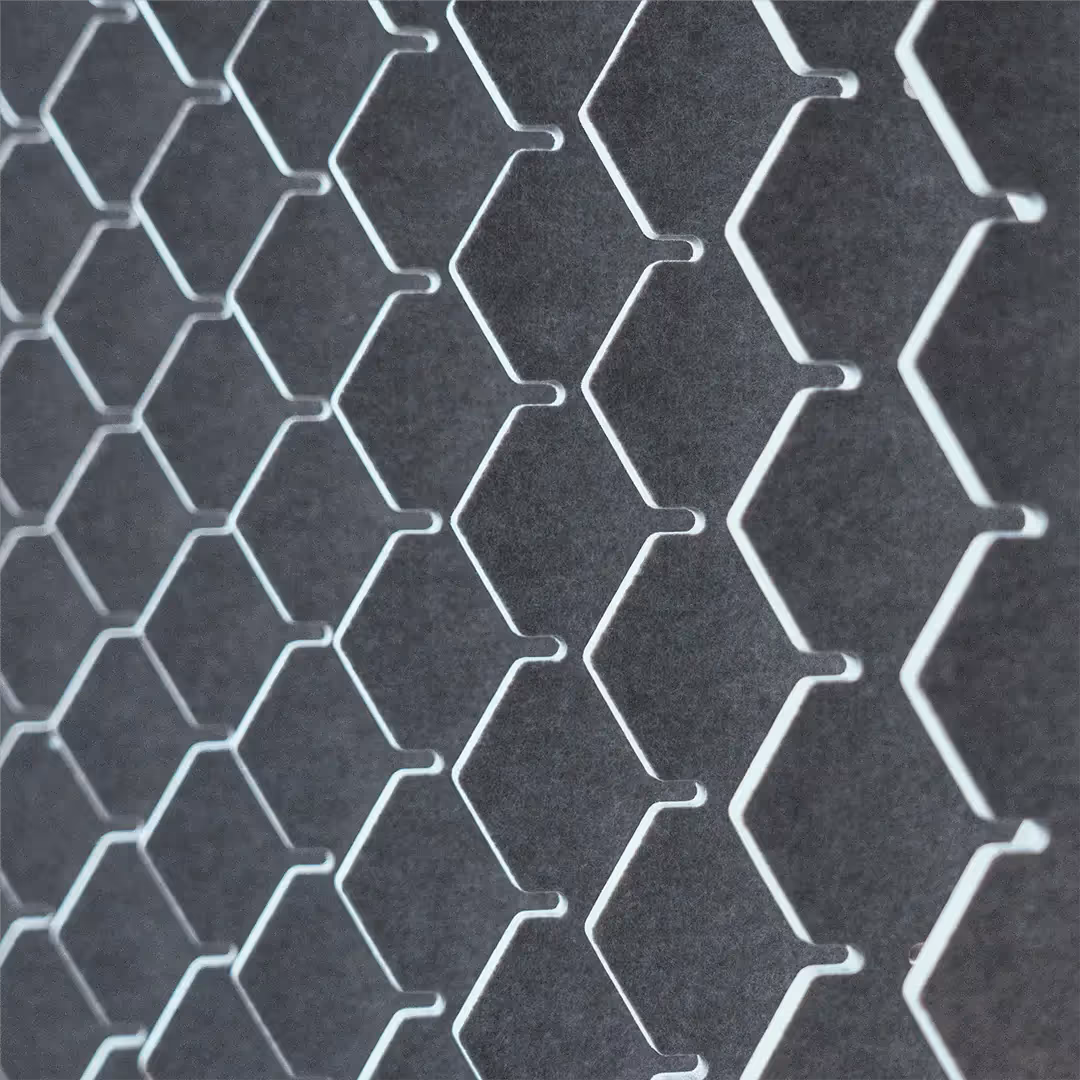

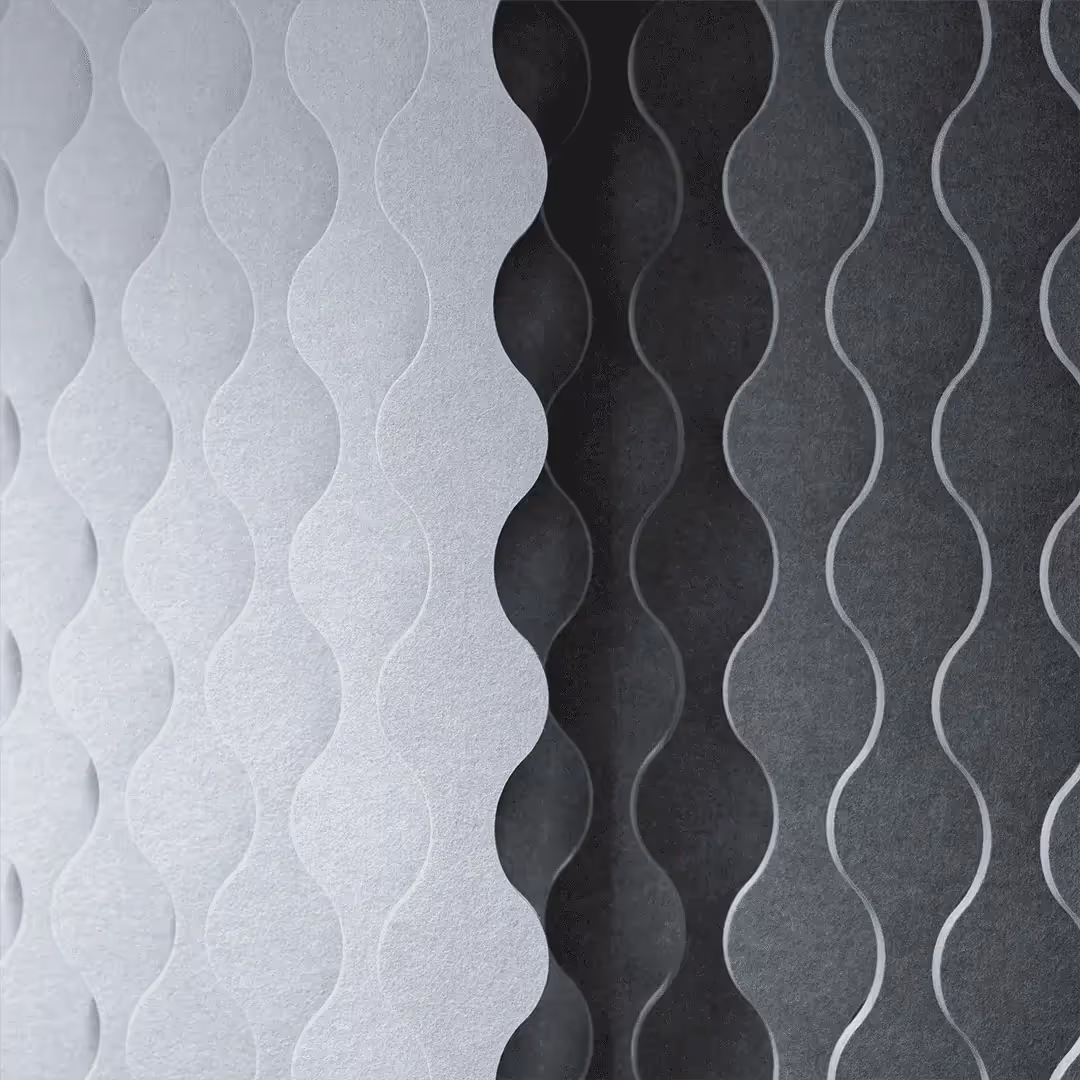

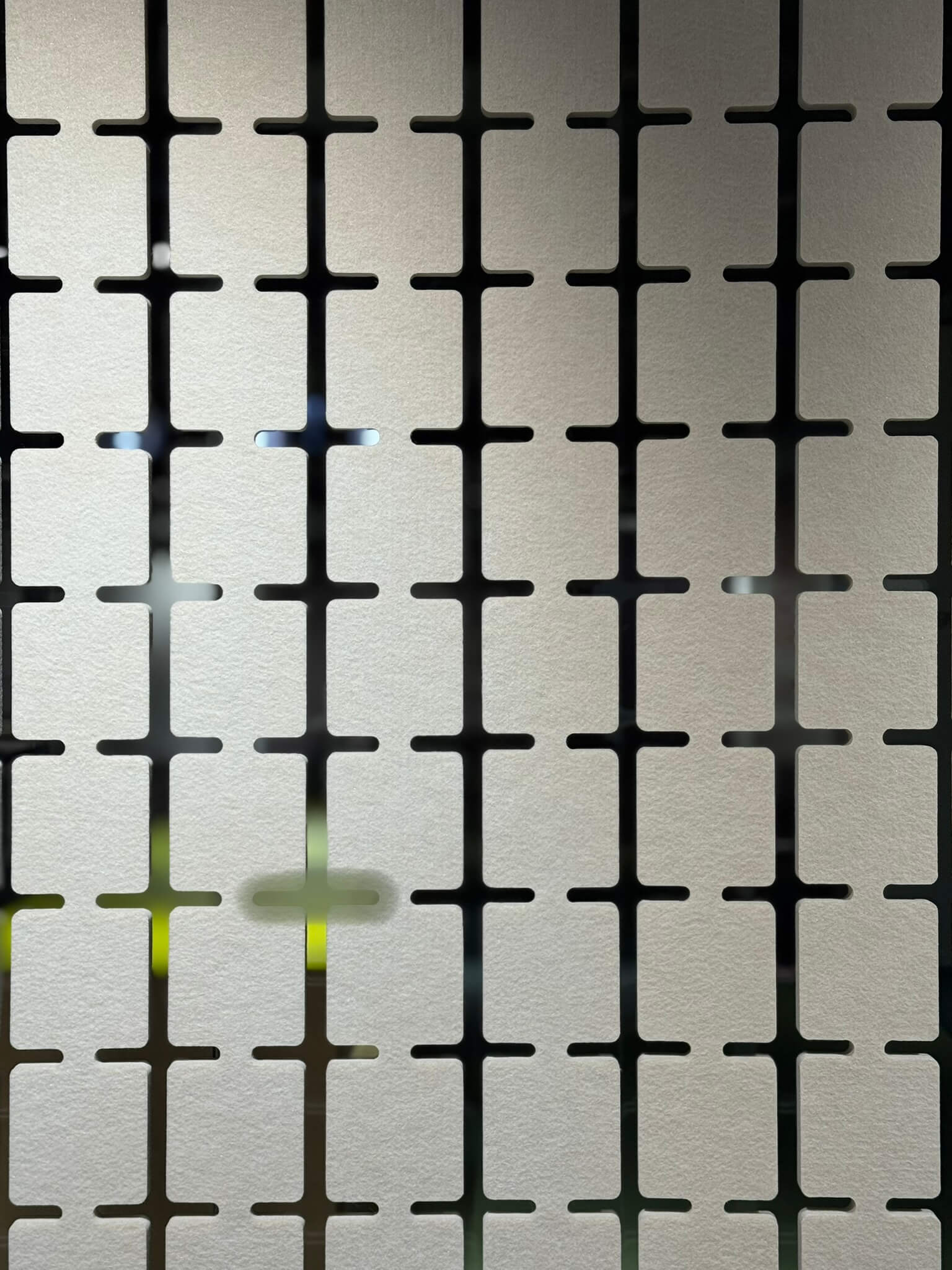

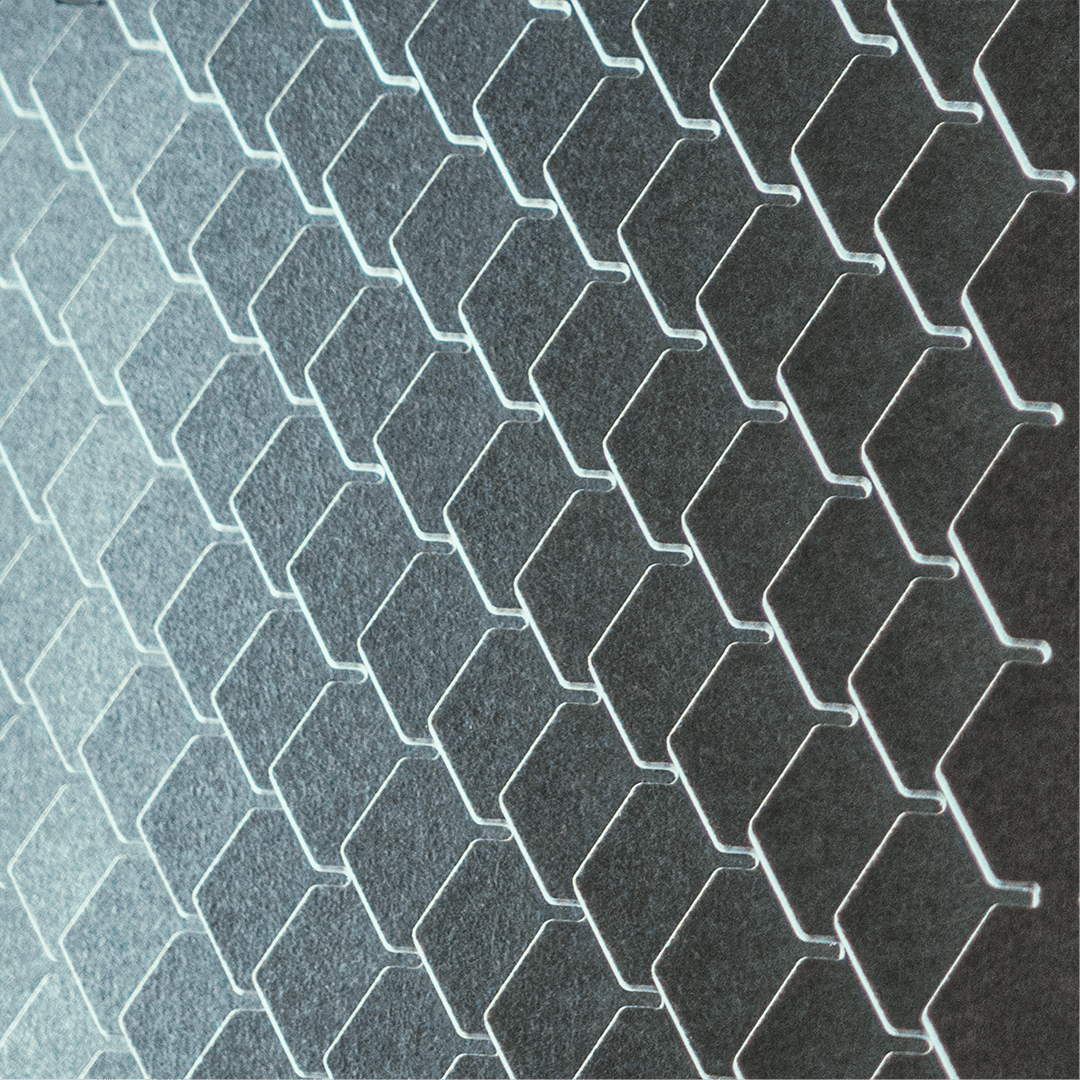

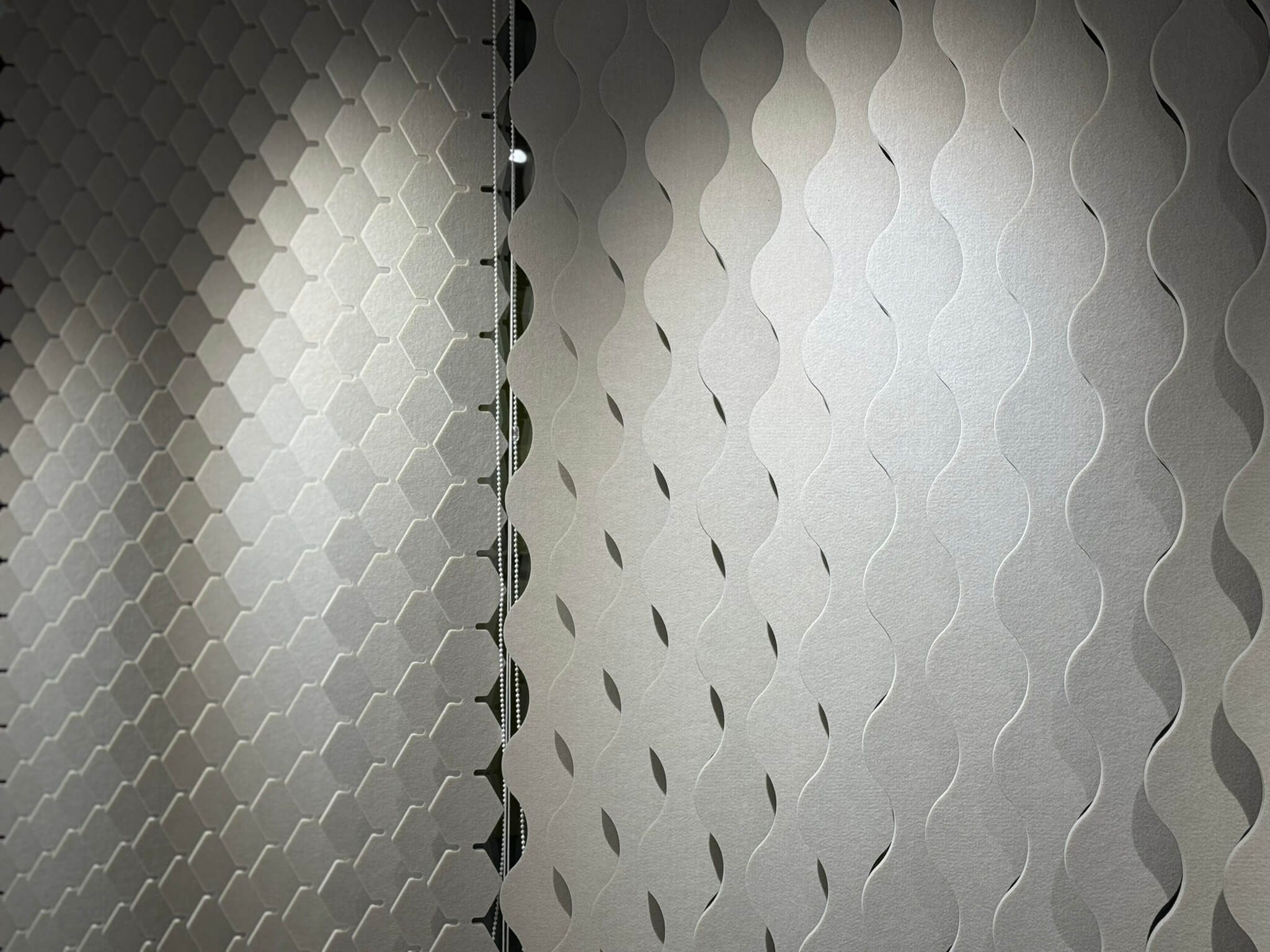

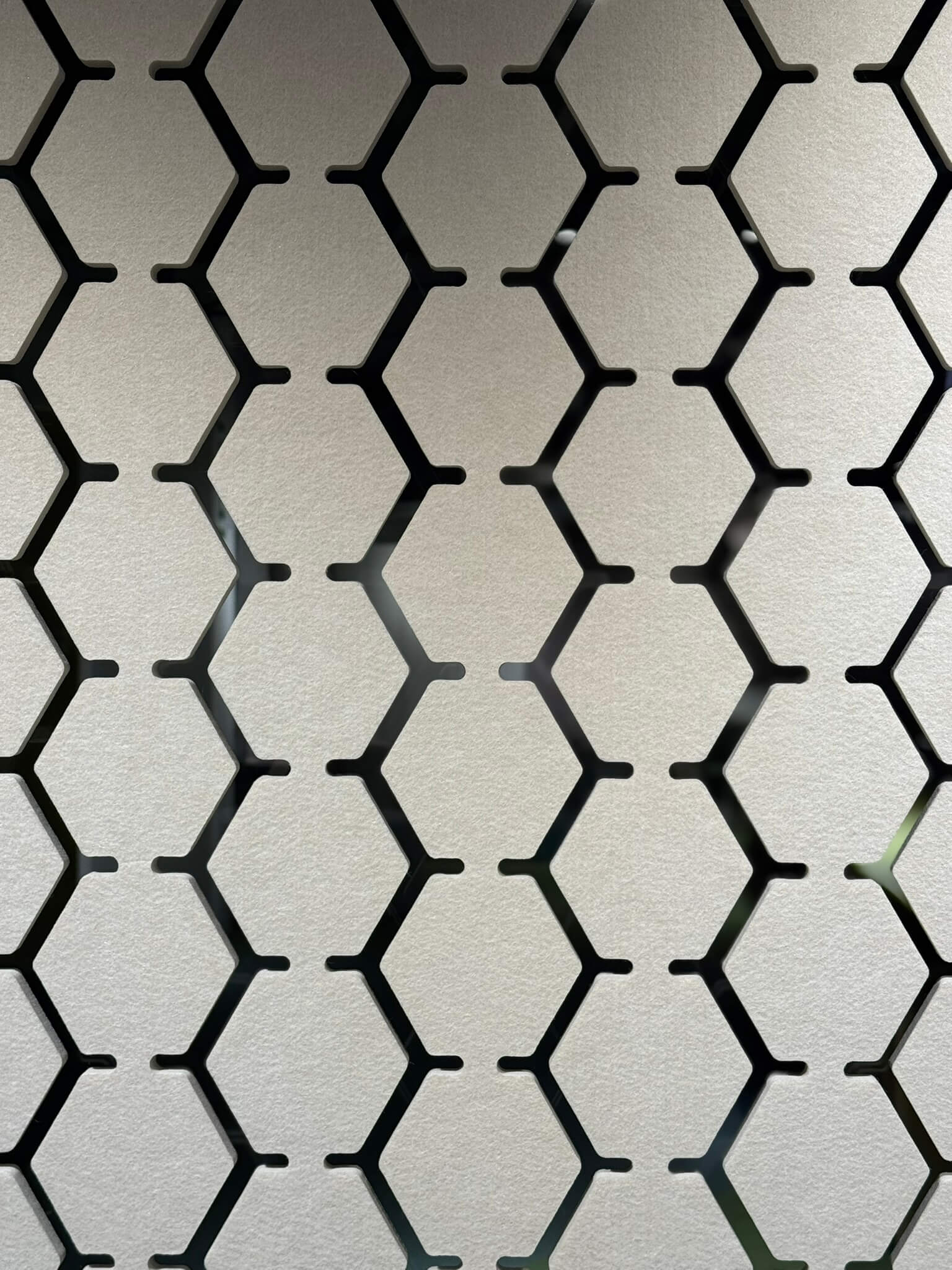

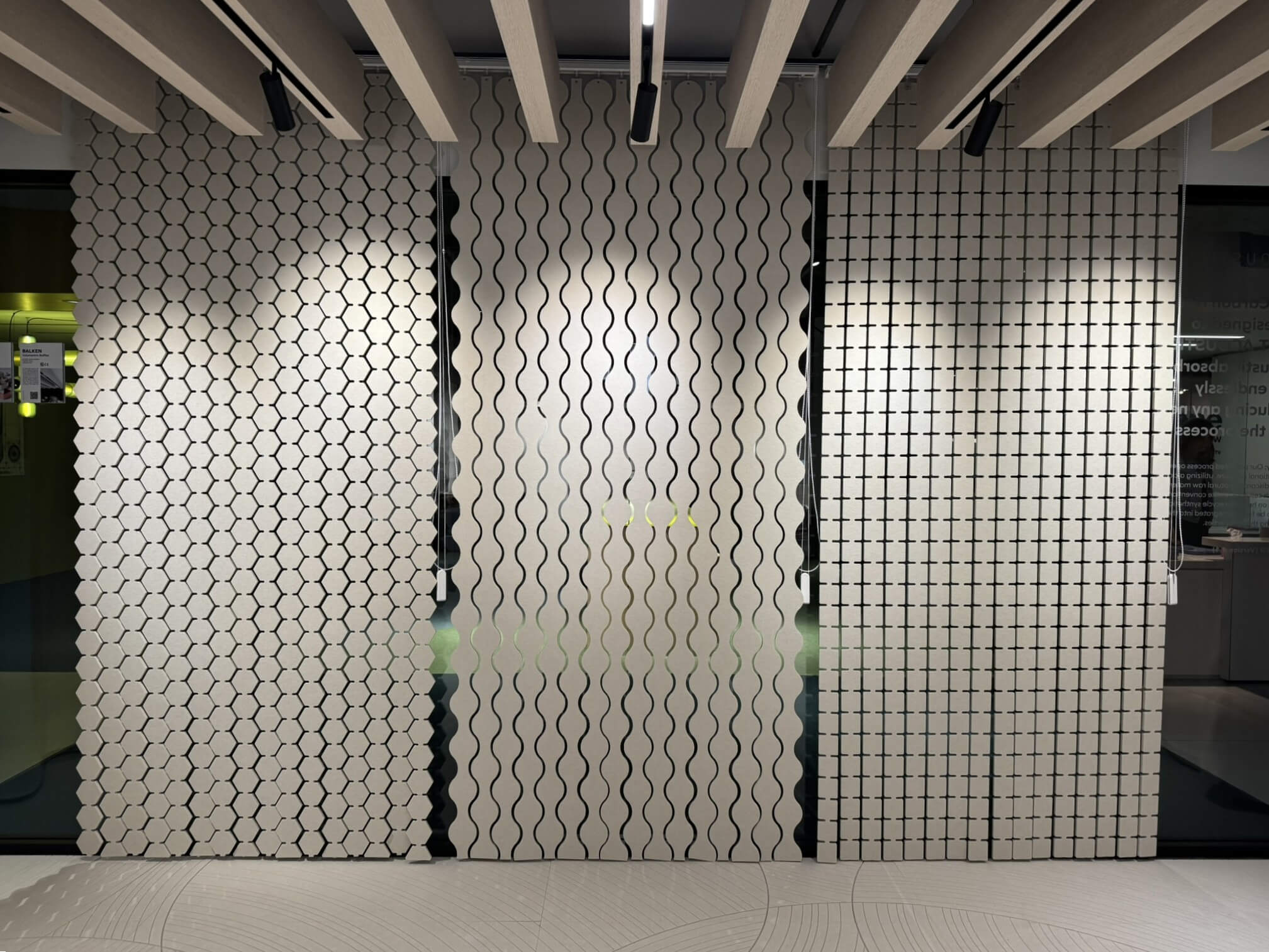

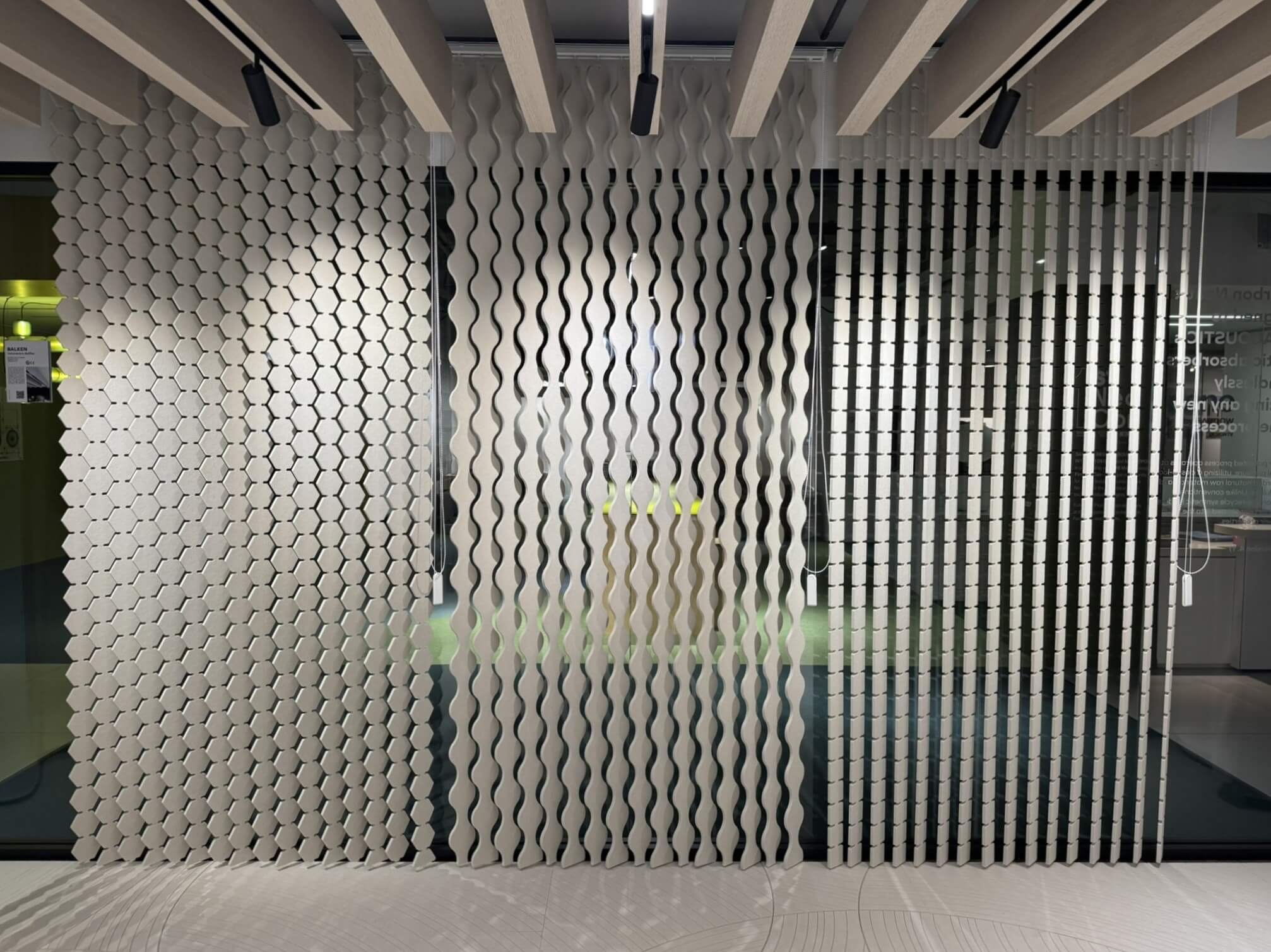

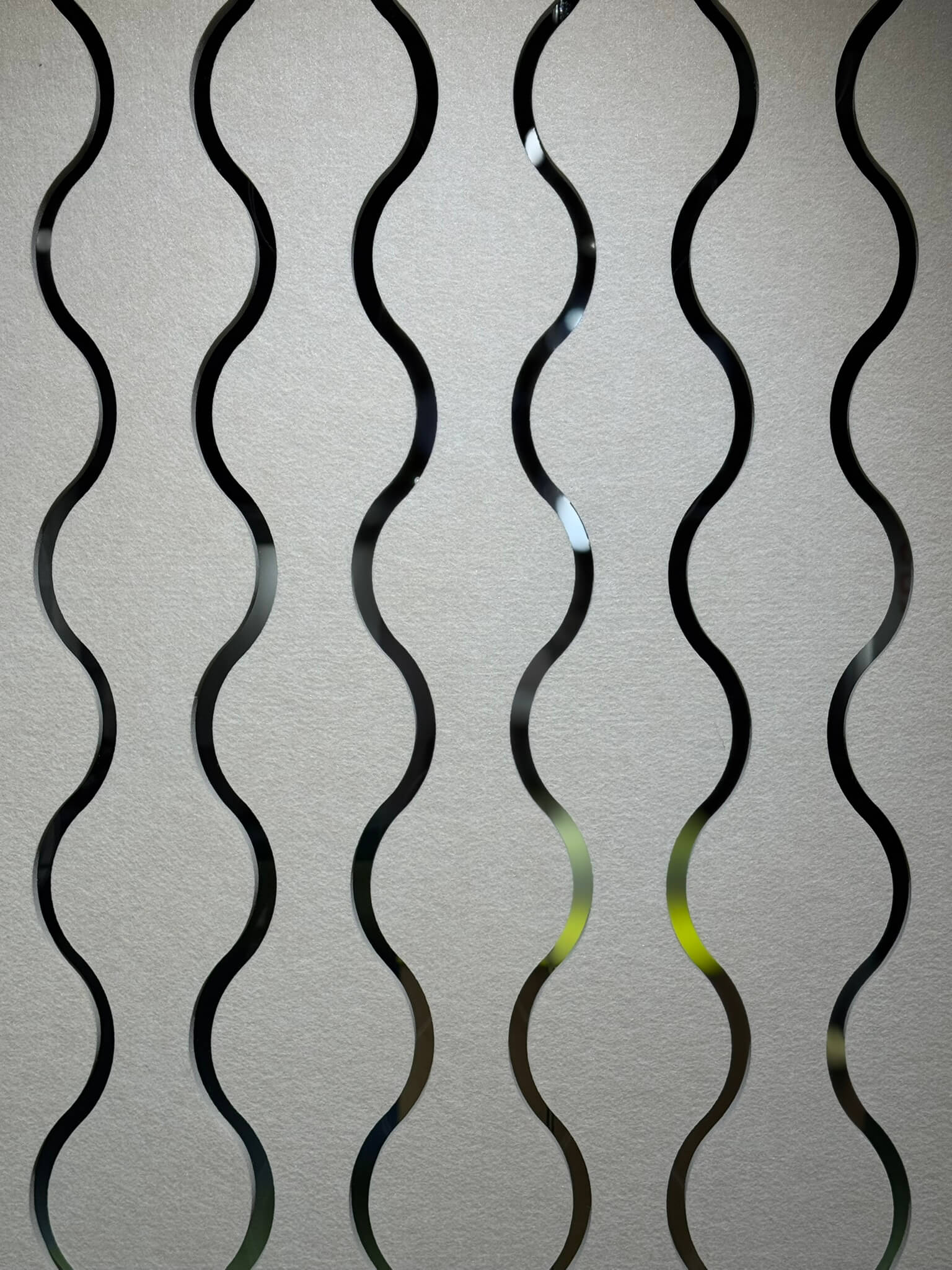

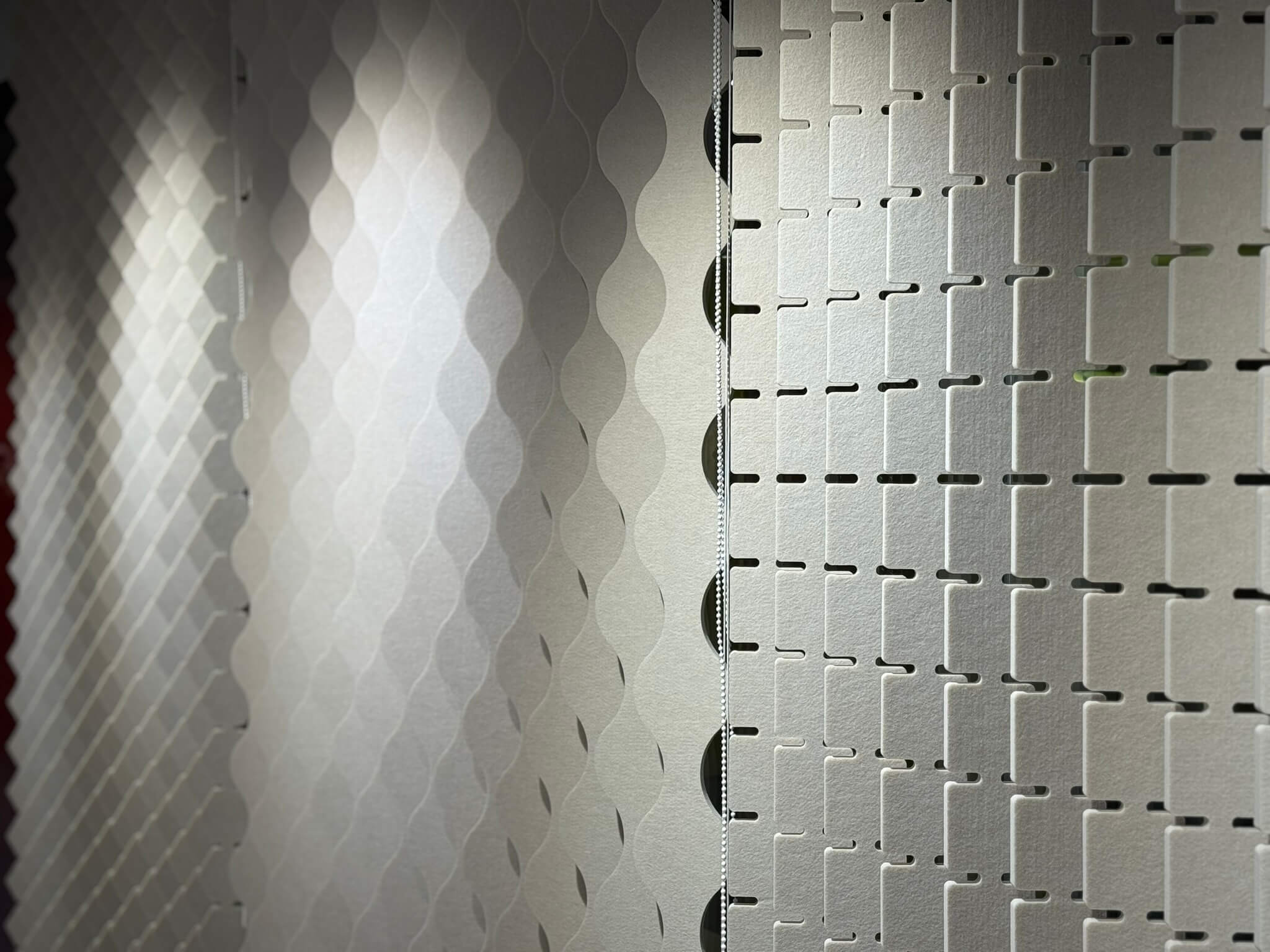

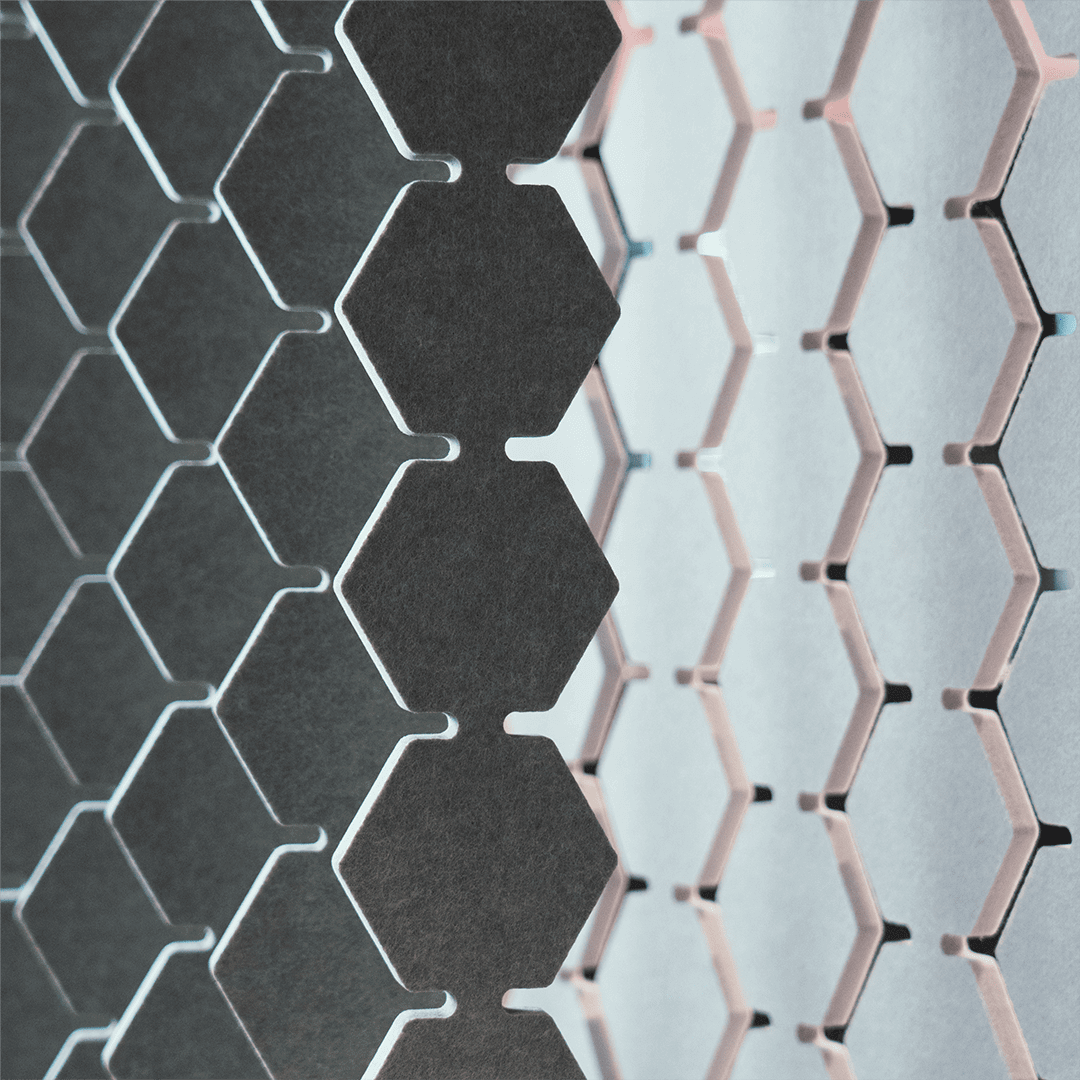

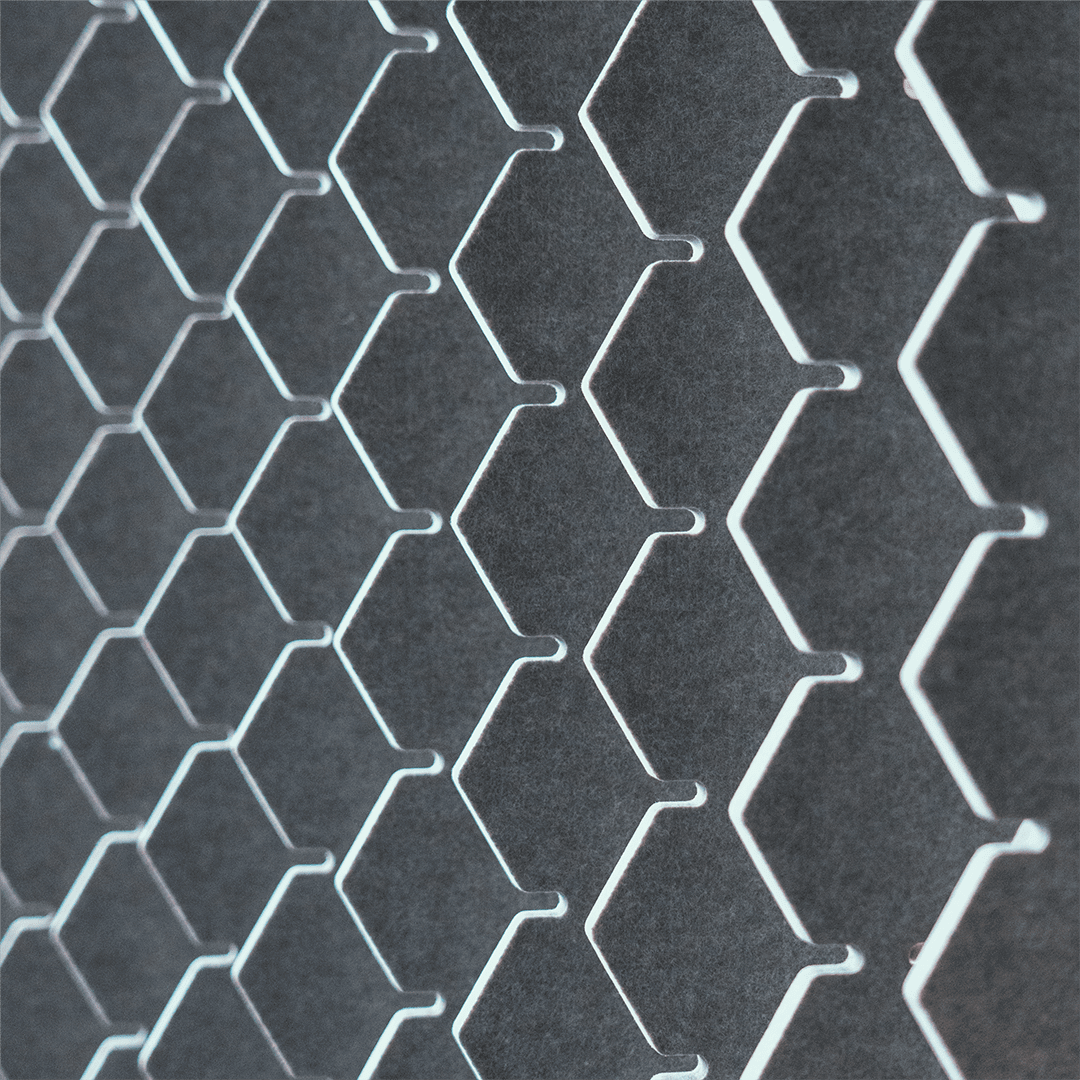

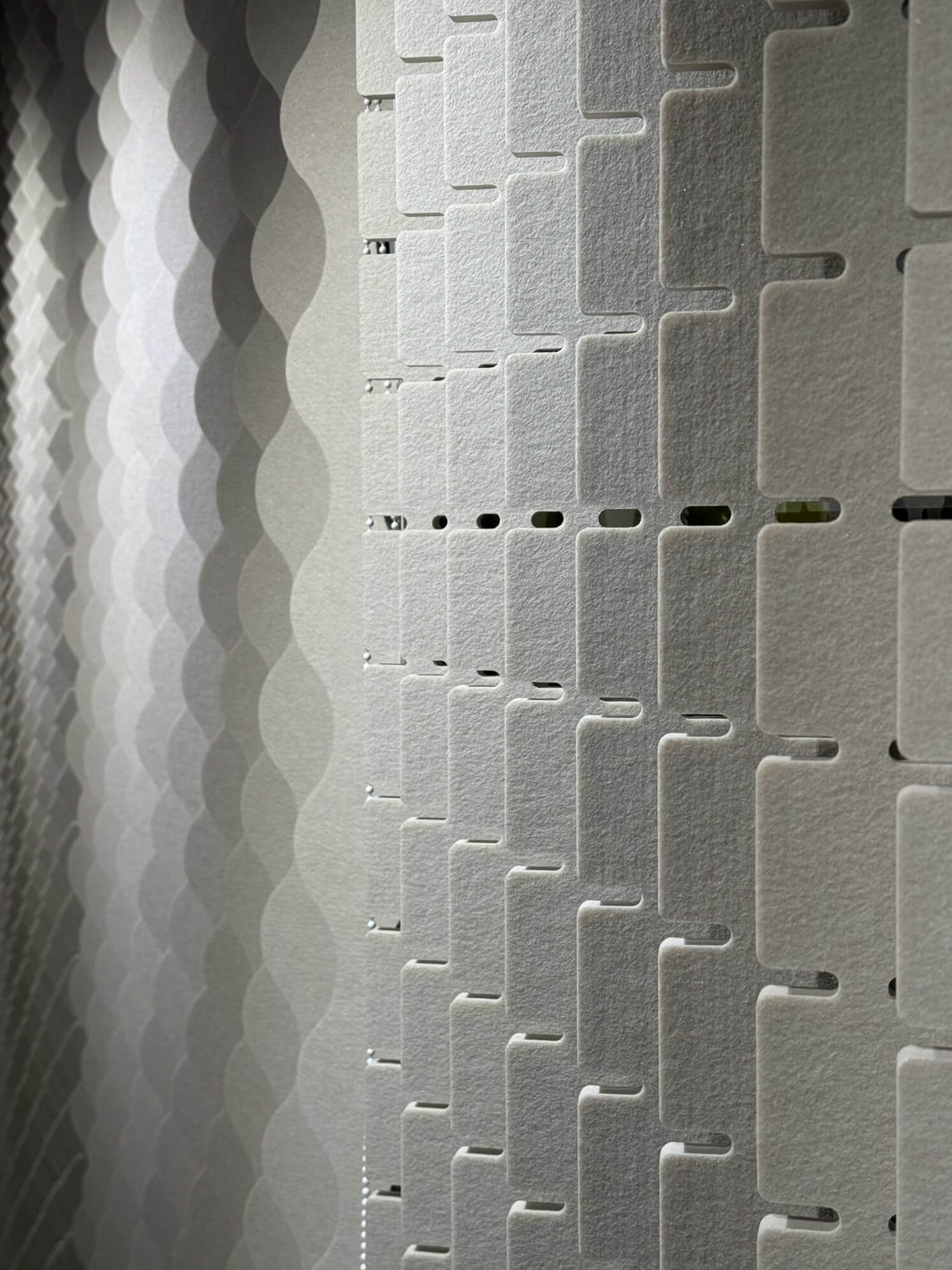

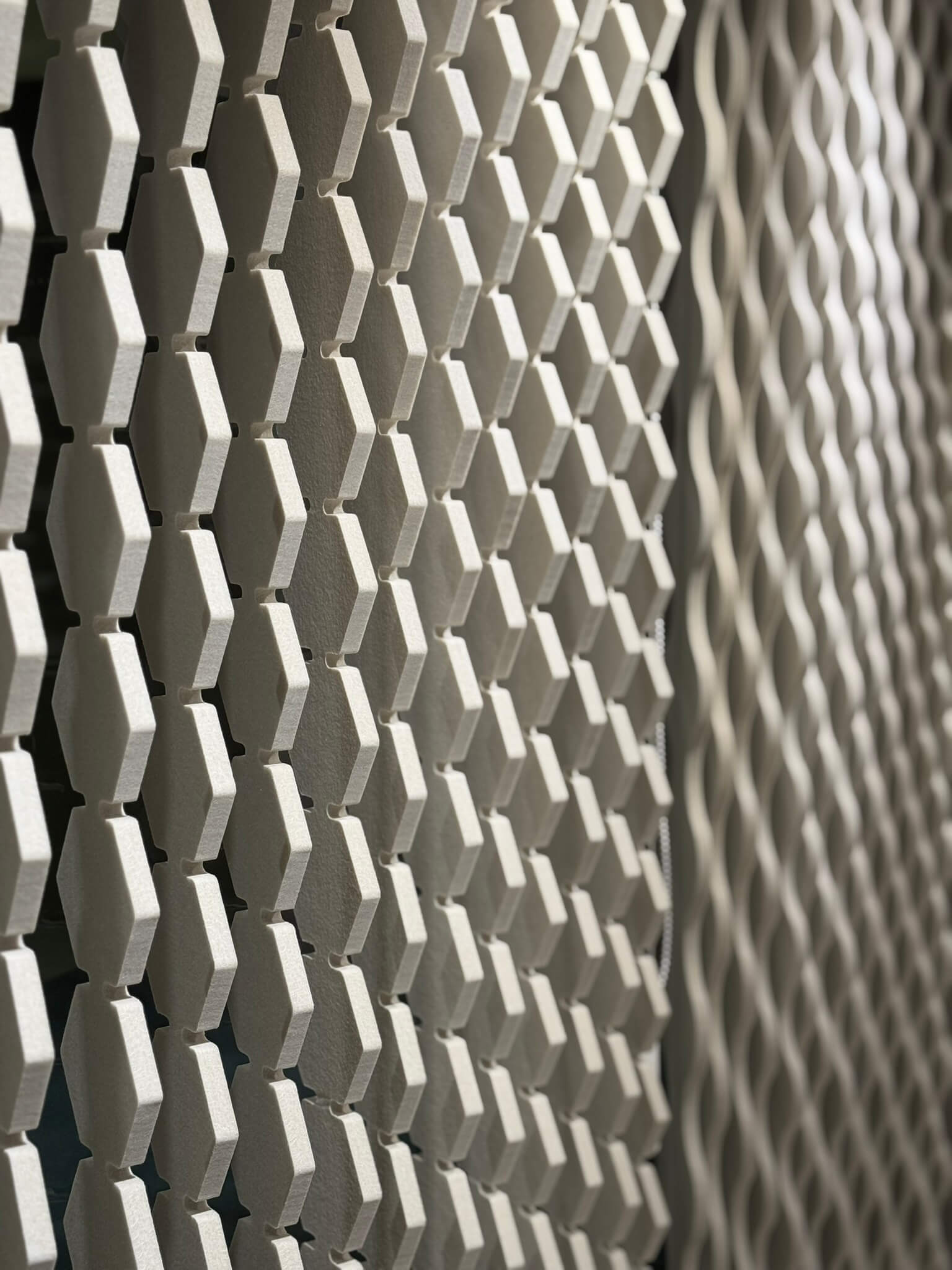

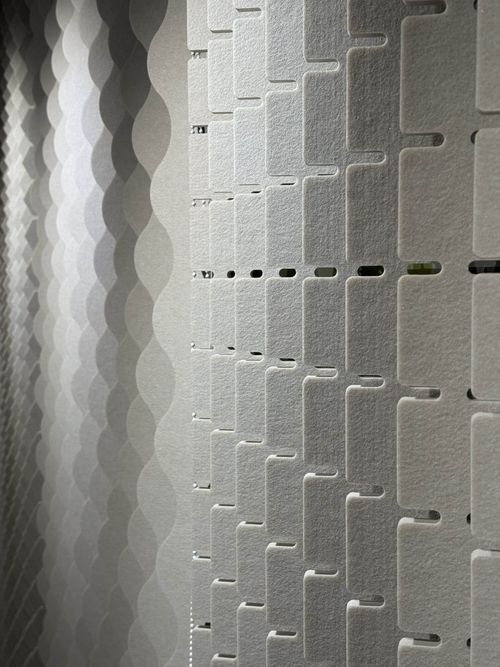

Shapes: Square, Hex, Drop, Plain
Slats: ARCHISONIC® Felt 12 mm, 100% PET, 60% certified post-consumer content
Rail and chain mechanism: steel
Hangers: clear polycarbonate
ISO 354 / ISO 20189: equivalent absorption area at 1000 Hz
2000 mm run: 4.1 m² (Square), 4.2 m² (Hex), 4.5 m² (Drop)
4000 mm run: 8.3 m² (Square), 8.5 m² (Hex), 9.0 m² (Drop)
Material, 12 mm felt (ISO 11654): αw 0.40 (H), NRC 0.40
Daily cleaning: 75% alcohol solution, e.g. Pantasept.
Dust or fluff: feather duster or regular vacuum cleaner.
Heavy dirt: treat the material with hydrogen peroxide.
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
B-s2 in 12 mm for: Hot Pink 140, Lichen 160, Pacific Ocean 432, Raven 550, Poster Red 662, Garnet 724
Cradle to Cradle, Declare, UL Environmental Product Declaration, SCS Recycled Content, Ecobau 1st Priority
VOC: French Regulation A+, BREEAM Exemplary, CDPH Pass, LEED low-emitting products
