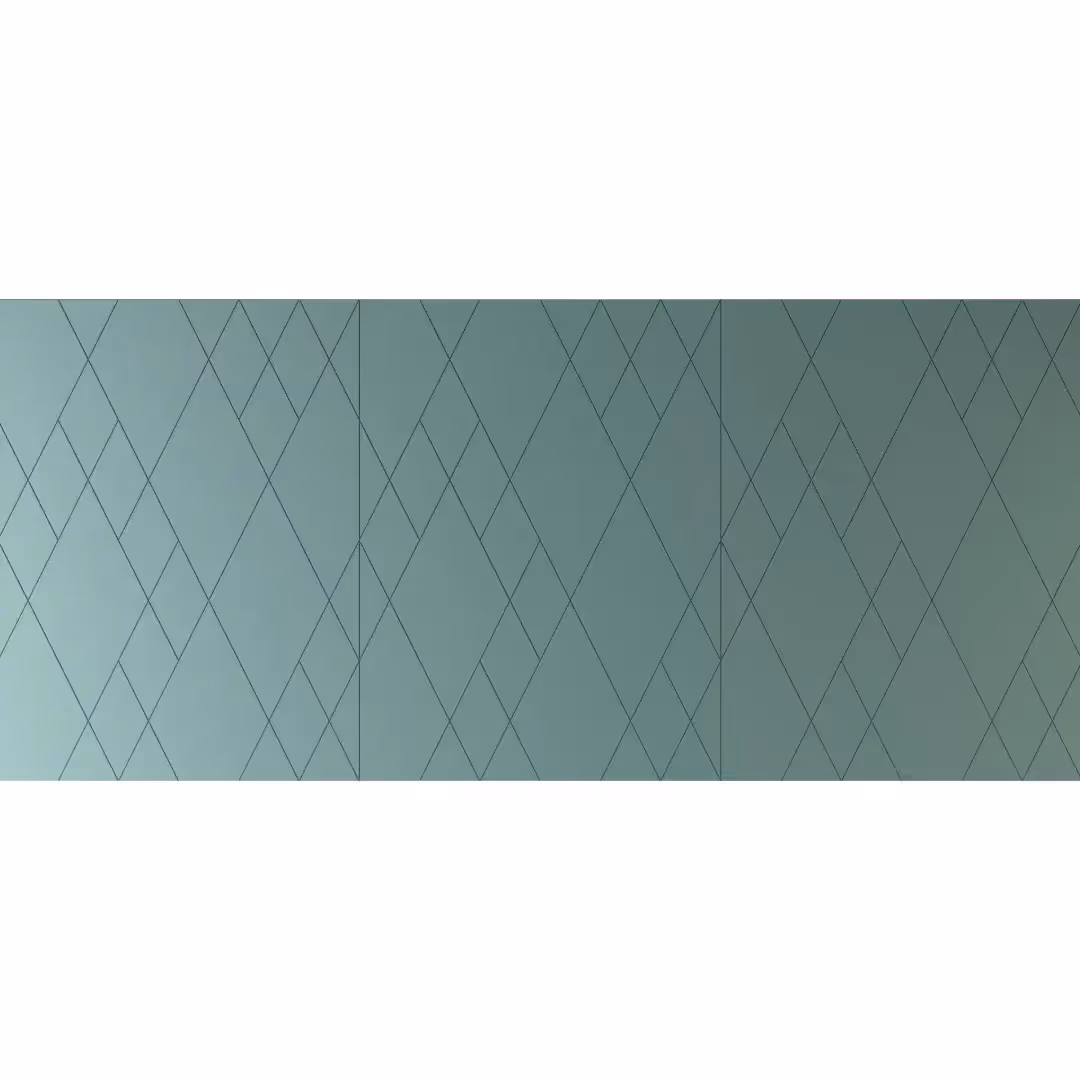

Prisma – Diamond acoustic wall panel
Prisma is a ready-made acoustic wall panel cut with a fine diamond lattice, a play of angled lines that gives a wall depth and quiet movement. Made from Archisonic felt [PET felt, 100% polyester with 60% post-consumer recycled content], it absorbs sound and reduces reverberation while turning a flat surface into a tactile, geometric feature.
Panels come in 12 and 24 mm in large formats, up to 1200 x 2800 mm and 1800 x 2400 mm. Mounted directly to the wall, the 24 mm panel reaches an αw of 0.55, rising toward 1.00 with an air cavity or insulation behind. A palette of 45 colours across 9 families lets the pattern recede or stand out, and panels can be alternated to build larger rhythms.
Archisonic felt carries Cradle to Cradle certification, a UL Environmental Product Declaration and a Declare label, and contributes to LEED low-emitting credits. Rated fire class B-s1,d0 to EN 13501-1, Prisma suits offices, hospitality and reception areas.
Thickness: 12 mm
Max. Dimensions: 1200x2800 mm
Thickness: 24 mm
Max. Dimensions: 1800x2400mm
100% PET (60% post-consumer)
αw 0.55, NRC 0.70 (24 mm, direct to wall); up to αw 1.00 with 50 mm insulation behind. 12 mm: αw 0.30 up to 1.00. Measured to ISO 354 and ISO 11654 (University of Stuttgart).
For daily cleaning, we recommend an alcohol solution (75%), e.g. Pantasept.
If soiled by dust or fluff, use a feather duster or a regular feather duster
vacuum cleaner. In case of heavy contamination, treat the material with hydrogen peroxide.
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class A
Declare label, Cradle to Cradle, UL Environmental Product Declaration,
Member of the U.S. Green Building Council, Ecobau 1st Priority, Climmate-KIC,
VOC emissions in LEED EQ credit (low-emitting products), SCS Recycled
Contents
