Solutions
Acoustic Ceiling Panels

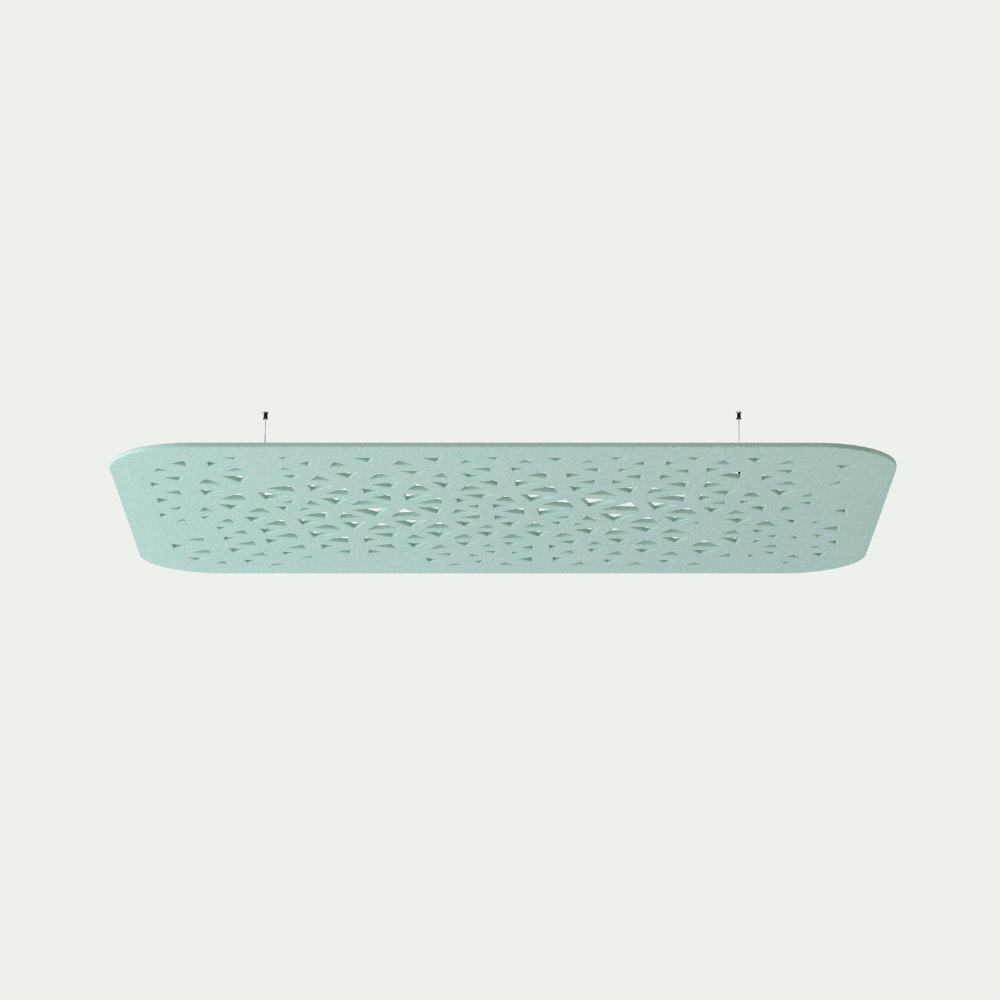

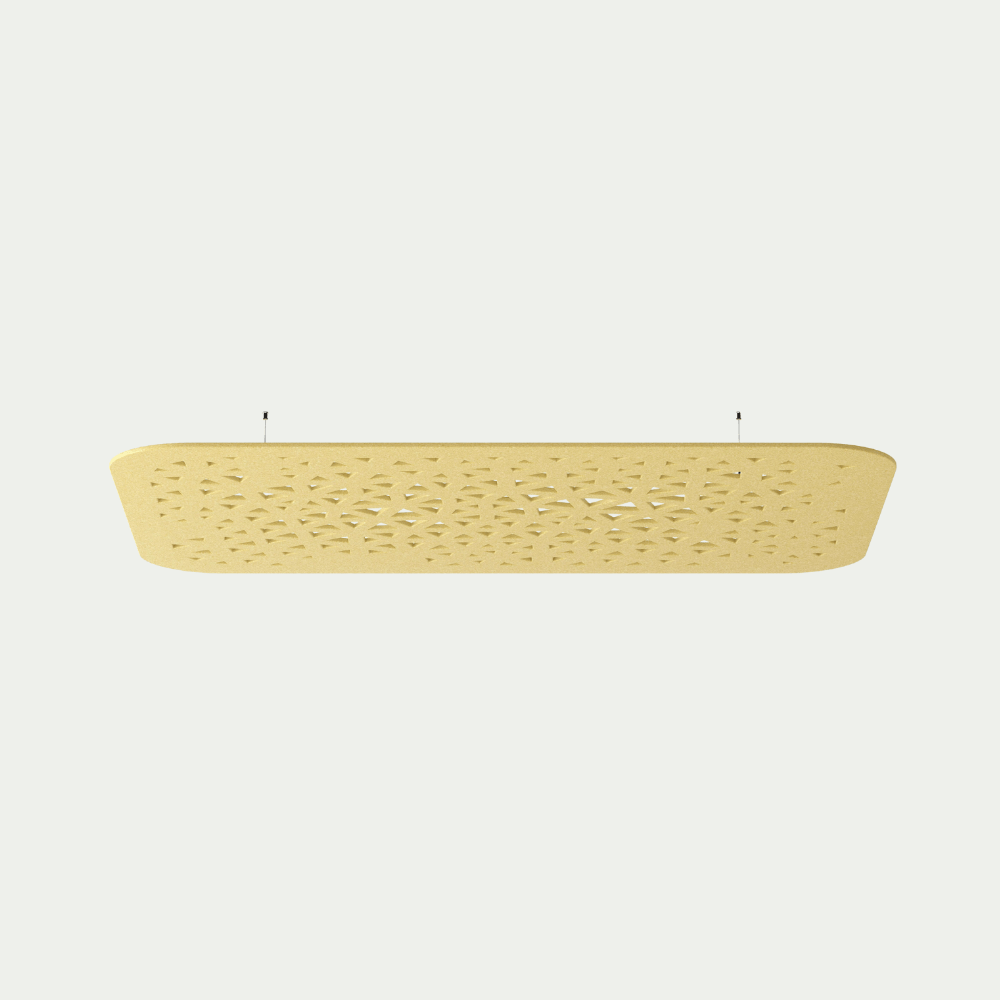

Rectangle Web ceiling panel

Rectangle Web ceiling panel

Impact Acoustic
Vanaf
€
55
(3.5 stars) • 10 reviews

The Web Ceiling Panel is a sculptural acoustic solution designed to bring both rhythm and quiet to large open spaces. Featuring a perforated grid design, this suspended panel softens reverberation while creating visual structure across the ceiling plane.

Made from ARCHISONIC® Felt (crafted with 60% post-consumer recycled PET) the Web panel combines sustainability with performance. With a thickness of 24 mm (0.94"") and dimensions of 1800 × 1200 mm (70.87” × 47.05”), it offers an NRC rating of 0.55, reducing mid- to high-frequency noise effectively.

Suspended with discreet grippers and cable mounts, Web creates a floating effect that adds architectural depth without overpowering the room. Choose from 32 curated color options to complement any design palette, whether in workspaces, lobbies, or hospitality environments.

The Web Ceiling Panel is acoustic design made simple, modular, and impactful.

Quote request
Variant
Variant
Option oneOption twoOption three
Add to cart
Buy now
Free shipping over $50
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product specification
Technical information
Tags
Dimensions

• Width: 1800mm (70.87”)

• Length: 2400mm (94.49”)

• Material thickness: 24mm (0.94”)

• Support Spacing:

- Width: 585mm (23.03”)

- Length: 900mm (35.43”)

• Distance from Ceiling: Minimum 100mm (4”)

Composition

• Panel: 100% PET (60% post-consumer content)

• Frame (Optional): Stainless Steel

Thickness
24mm (0.94”)
Finishing material
PET Felt
Gewicht
24mm PET Material: 4kg/m2 kg (±10%) / 0.82 lbs/ft2 (±10%)
Available colours
Archisonic® Felt (32 colors)
Sound absorption

• ISO Testing:

- Absorption (m²): 125Hz (0.5), 250Hz (1.0), 500Hz (1.6), 1000Hz (2.5), 2000Hz (3.1), 4000Hz (3.4)

• ASTM Testing:

NRC (Noise Reduction Coefficient): 0.55

• Standards:

- ISO 354: Measurement of sound absorption

- ISO 11654: Sound absorber classification

- ISO 20189: Acoustic rating for interior elements

- ASTM C423-17: Sound absorption test

- ASTM E795-16: Sound absorption test methods

Maintenance

• Daily cleaning: Alcohol solution (75%) (e.g., Pantasept)

• Dust removal: Feather duster or vacuum cleaner

• Heavy dirt: Hydrogen peroxide treatment

Recyclability
Minimum 60% post-consumer recycled PET
Fire reduction class EU

• DIN EN 13501-1: B-s1, d0

• ASTM E84: Class A"

Groene labels

• VOC Emission:

- 28 Days French Regulation: A+

- ASTM E84: Pass

- BREEAM® (International, UK, NL, SE, NOR): Exemplary

- CDPH Standard V1.2: Pass

• Certifications:

- Declare label, Cradle to Cradle, UL Environmental Product Declaration

- Member of US Green Building Council, Ecobau 1st Priority, Climate-KIC

- VOC emissions compliant with LEED EQ credit (low-emitting products)

- SCS Recycled Content
