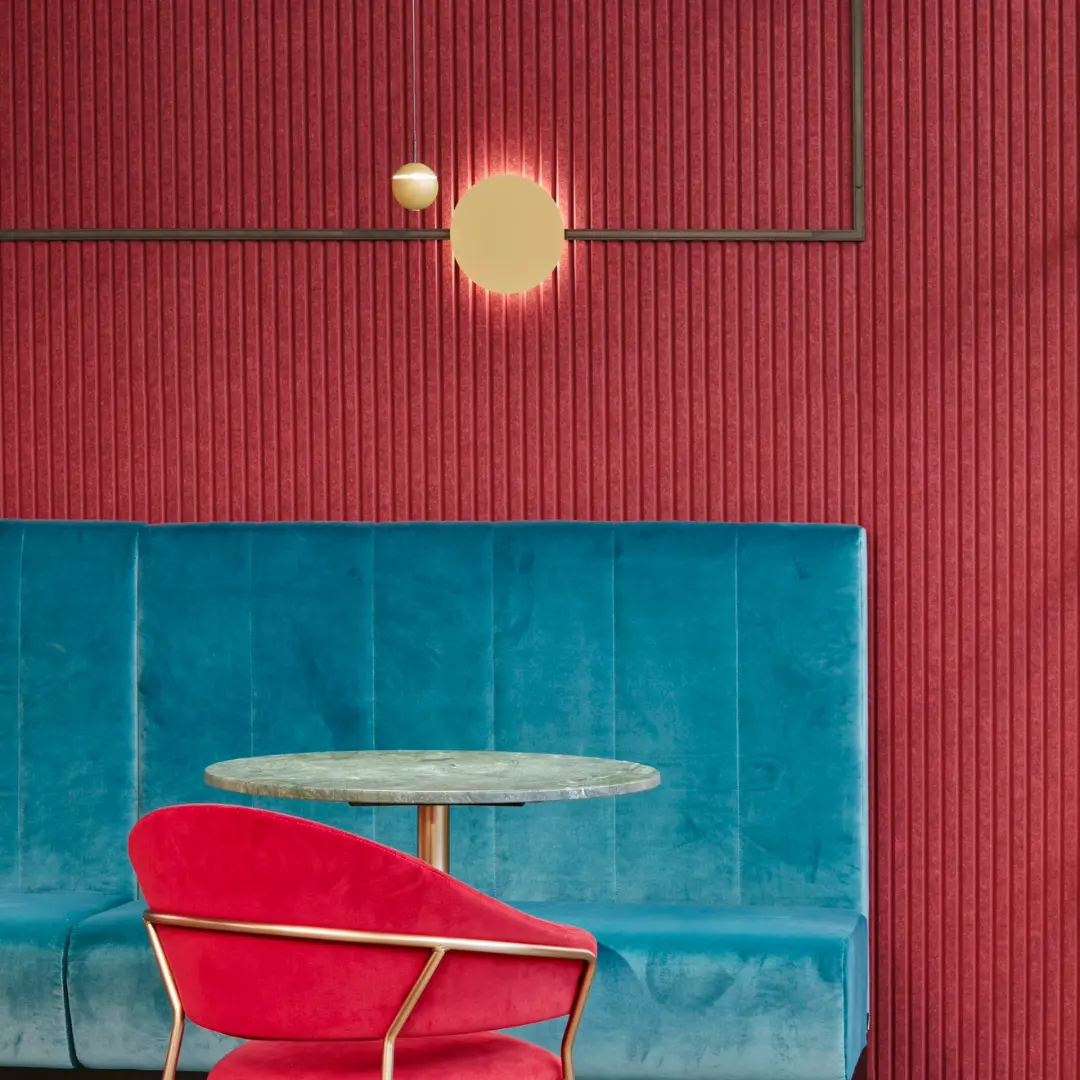

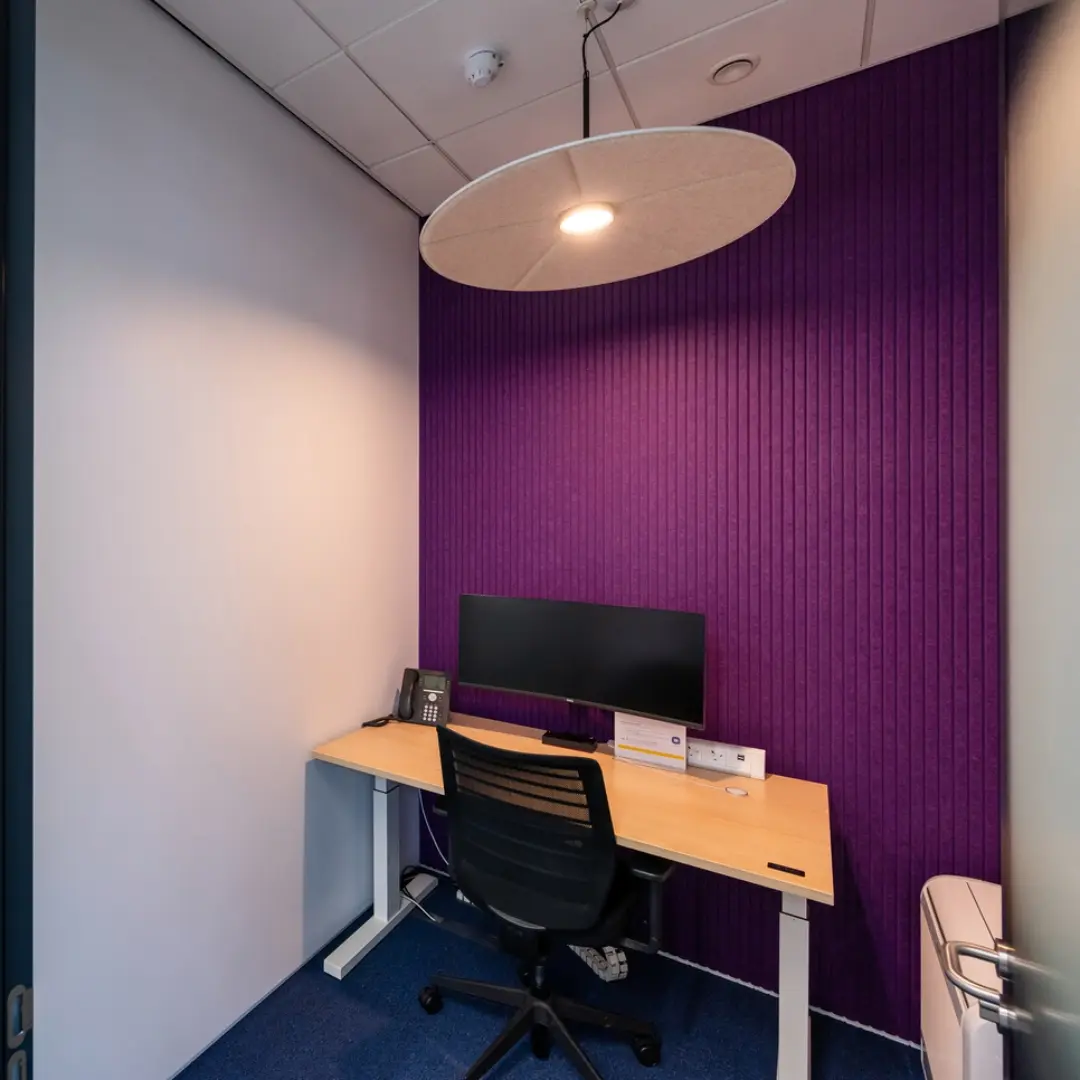

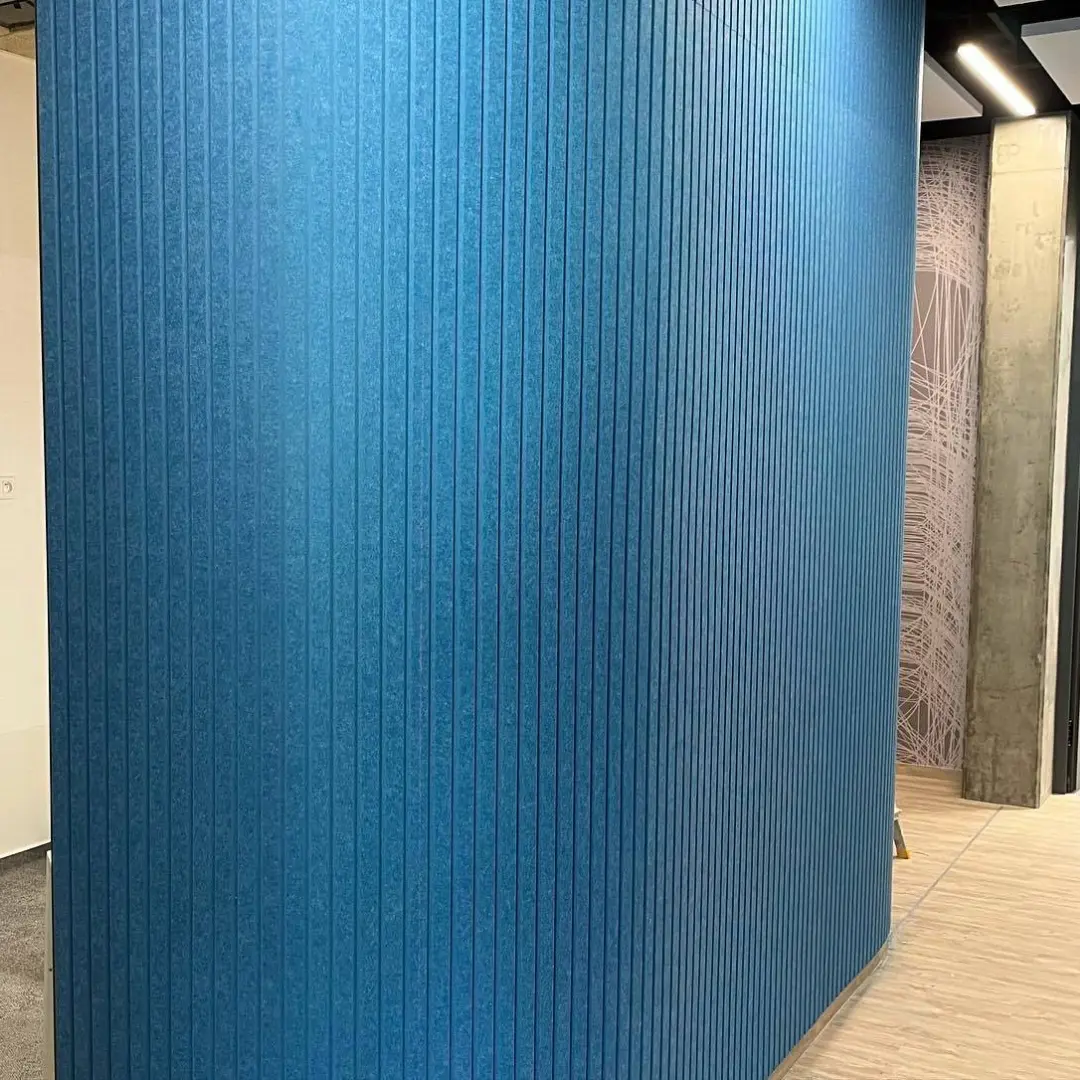

Vertigo Wall Panel
The Vertigo Wall Panel lets a wall rise in a clean, vertical rhythm. Wide V-cut grooves run every 30 mm along the full height of the panel, casting fine lines of shadow that draw the eye upwards and give the room a calm, tailored finish. Cut from ARCHISONIC® Felt, a PET felt with 60% certified post-consumer recycled content, it absorbs sound and reduces reverberation across the whole surface.
Choose a 24 mm panel of 1800 x 2400 mm or a 12 mm panel of 1200 x 2800 mm, both mounted with the concealed Undercover system, which hides every fixing. Tested to ISO 354 and ISO 11654, the 24 mm felt reaches αw 0.55 directly on the wall and up to αw 1.00 with 50 mm insulation behind it.

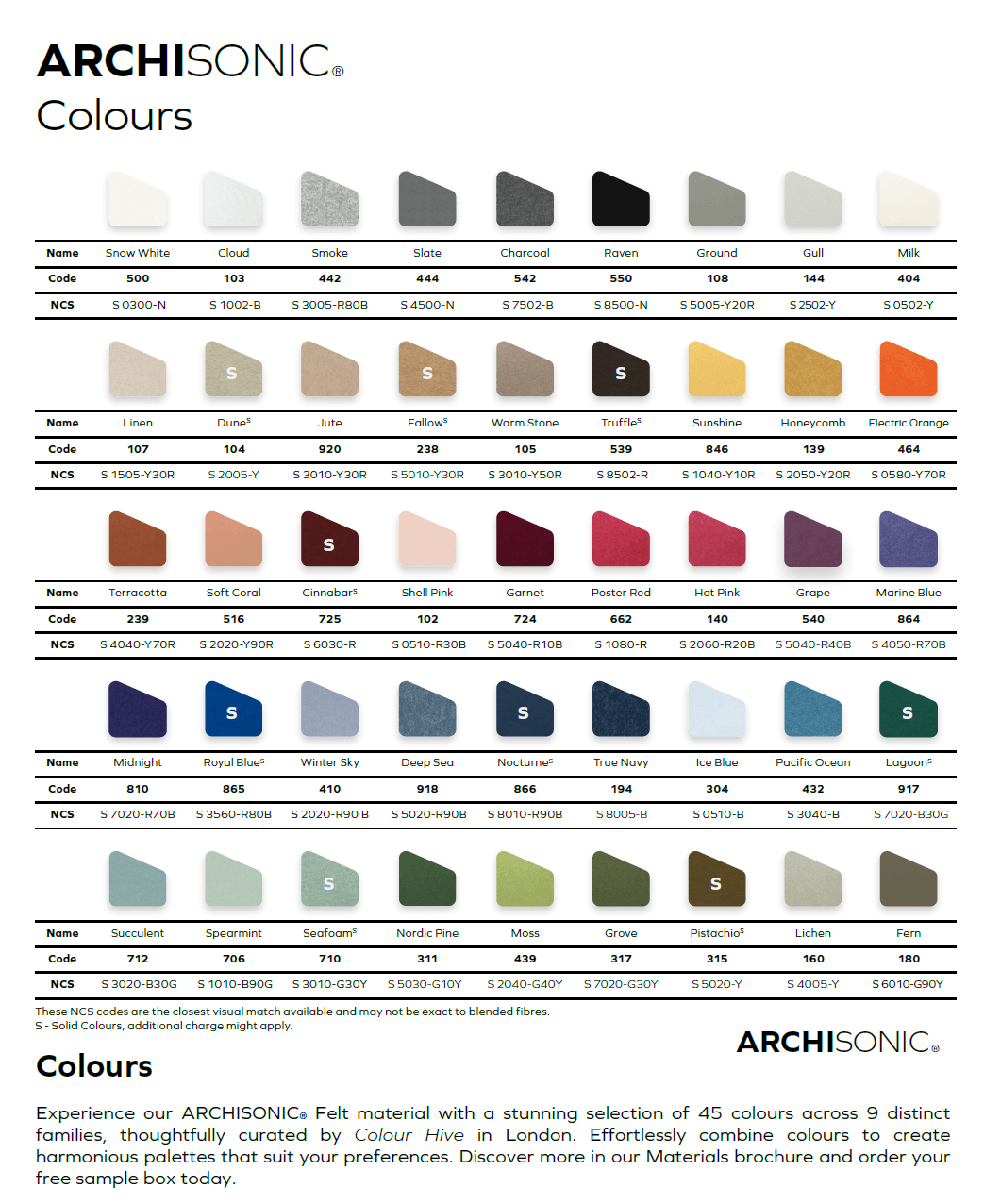

In 45 colours, the felt holds fire reaction class B-s1,d0 in most colours under EN 13501-1 and is certified Cradle to Cradle, Declare and Indoor Air Comfort Gold. Vertigo brings quiet order to offices, meeting rooms and lobbies.
24 mm: 1800 x 2400 mm
12 mm: 1200 x 2800 mm
V-cut: 60°, every 30 mm
Custom sizes on request
100% PET, 60% certified post-consumer content
ISO 354 / ISO 11654, αw by mounting:
24 mm: 0.55 (MH) no air cavity, 0.65 (MH) with 50 mm air cavity, 1.00 with 50 mm insulation
12 mm: 0.30 (MH) no air cavity, 0.60 (MH) with 50 mm air cavity, 1.00 with 50 mm insulation
Daily cleaning: 75% alcohol solution, e.g. Pantasept.
Dust or fluff: feather duster or regular vacuum cleaner.
Heavy dirt: treat the material with hydrogen peroxide.
DIN EN 13501-1: B-s1, d0 | ASTM E84 Class AB-s2 in 12 mm for: Hot Pink 140, Lichen 160, Pacific Ocean 432, Raven 550, Poster Red 662, Garnet 724B-s2 in 24 mm for: True Navy 194, Pacific Ocean 432, Electric Orange 464, Soft Coral 516, Raven 550, Midnight 810, Marine Blue 864
Cradle to Cradle, Declare, UL Environmental Product Declaration, SCS Recycled Content, Ecobau 1st Priority
VOC: Indoor Air Comfort Gold
